European Audio Cable: Analog Audio Cables

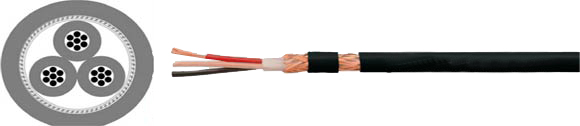

Audio Cables, Multiconductor, with Braided Shielding

Sealcon, Inc, European & Domestic cable

Audio Cables, Audio Cables, Multiconductor, with Braided Shielding, 2x0.26, RoHS Approved, RoHS Compliant, Sealcon, European
European Part-No. Structure Conductor Resistance
Ohm/km		 Outer Diameter
ca. mm		 Copper Weight
kg / km		 Weight
ca. kg / km
400003 2 x 0.26 <73.9 5.2 16.8 37
400004 2 x 0.33 <61.6 5.3 18.2 38
400005 4 x 0.33 <61.6 5.9 27.2 52
400006 2 x 0.50 <39.0 5.7 22.0 46
400007 2 x 0.75 <26.0 7.2 30.0 70
400008 3 x 0.75 <26.0 7.7 50.0 90
400009 4 x 0.75 <26.0 8.3 60.0 102
400010 5 x 0.75 <26.0 8.9 72.0 120
Type: Analog Audio Cables European
Cable Structure 2 x 0.26
Conductor Material: Copper, Bare
Conductor Insulation: PE
Conductor Colors: Black
Stranding Element: Pairs Stranded
Drain Wire: Yes
Jacket Material: PVC
Cable External Diameter: Approx. 5.2 mm
Jacket Color: Black
Technical Data
Weight: Approx. 37.0 kg/km
Min. Bending Radius for Laying: 52 mm
Operating Temperature Range Min.: -25°C to -13°F
Operating Temperature Range Max.: +70°C to +158°F
Copper Weight: 16.8 kg/km
Electrical Characteristics
Conductor Resistance Max.: 73.9 Ohm/km
Insulation Resistance Min.: 1.0 GOhm x km
Norms
  • Halogen-Free acc. to EN 50267-2-3
Approvals
RoHS
Type: Analog Audio Cables European
Cable Structure 2 x 0.26
Conductor Material: Copper, Bare
Conductor Insulation: PE
Conductor Colors: Black
Stranding Element: Pairs Stranded
Drain Wire: Yes
Jacket Material: PVC
Cable External Diameter: Approx. 5.2 mm
Jacket Color: Black
Application
  • The 2-5-conductor shielded HELUSOUND® audio cable with a common PE conductor insulation, braided shielding and PVC outer sheath is especially well-suited for use in microphone, loudspeaker, radio and transmission systems.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
