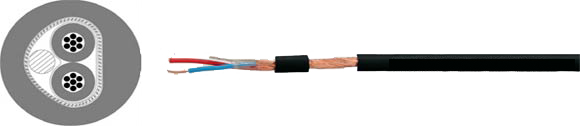

AES / EBU Digital Audio Cables, Single Pair, with Spiral Screen
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part
Number: 400021
Type:
Digital Audio Cables
Helukabel
Cable
Structure
2 x 0.22
Conductor Material:
Copper, Bare
Conductor Insulation:
PE
Conductor Colors:
Red, Blue
Stranding Element:
2 conductors with 1 ground conductor
Jacket Material:
PVC
Cable External Diameter:
Approx. 5.0 mm
Jacket Color:
Black
Technical Data
Weight:
Approx. 35.0 kg/km
Min. Bending Radius for Laying:
50 mm
Operating Temperature Range Min.:
-25°C to -13°F
Operating Temperature Range Max.:
+70°C to +158°F
Copper Weight:
13.0 kg/km
Electrical
Characteristics
Characteristic Impedance:
110.0
Ohm/km
Conductor Resistance Max.:
86 Ohm x km
Insulation Resistance Min.:
1.0 GOhm x km
Norms
Halogen-Free acc. to EN 50267-2-3
Approvals
Type:
Digital Audio Cables
Helukabel
Cable
Structure
2 x 0.22
Conductor Material:
Copper, Bare
Conductor Insulation:
PE
Conductor Colors:
Red, Blue
Stranding Element:
2 conductors with 1 ground conductor
Jacket Material:
PVC
Cable External Diameter:
Approx. 5.0 mm
Jacket Color:
Black
Application
The HELUSOUND® AES/EBU audio cable is a 2-conductor, symmetrical and shielded digital sound cable with flexible spiral screen and PVC outer jacket. The cable is suitable for the transmission of digital audio signals and can therefore, for example, be used for connecting audio amplifiers, digital, mixers, DAT recorders, etc. The cable is also available with PUR outer jacket.
