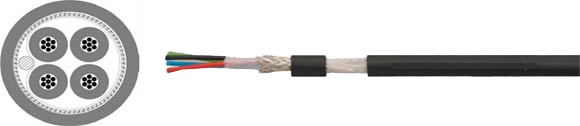

Microphone Cables with Braided Shielding, Star Quads
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part
Number: 400041
Technical Data
Weight:
Approx. 50.0 kg/km
Min. Bending Radius for Laying:
62 mm
Operating Temperature Range Min.:
-25°C to -13°F
Operating Temperature Range Max.:
+70°C to +158°F
Copper Weight:
23.0 kg/km
Electrical
Characteristics
Conductor Resistance Max.:
86 Ohm/km
Insulation Resistance Min.:
1.0
GOhm/km
Norms
Halogen-free acc. to EN 50267-2-3
Technical Data
Helukabel
Weight:
Approx. 50.0 kg/km
Min. Bending Radius for Laying:
62 mm
Operating Temperature Range Min.:
-25°C to -13°F
Operating Temperature Range Max.:
+70°C to +158°F
Copper Weight:
23.0 kg/km
Electrical
Characteristics
Conductor Resistance Max.:
86 Ohm/km
Insulation Resistance Min.:
1.0
GOhm/km
Norms
Halogen-free acc. to EN 50267-2-3
Approvals
Type:
Microphone Cable
Helukabel
Cable
Structure
4 x 0.22
Conductor Material:
Copper, tinned
Conductor Insulation:
PE
Conductor Colors:
Red, Blue, Green, Black
Stranding Element:
Star Quad
Jacket Material:
PVC
Cable External Diameter:
Approx. 6.1 mm
Jacket Color:
Black
Application
The 4-conductor HELUSOUND® microphone cable is stranded in star quads and suitable for special application due to its earth conductor and braided shielding. Among other things, it is used as a stereo cable in the area of professional studio and microphone technology.
