Enclosure Home Page|Industrial Enclosures|Thermoplastic Indoor Enclosures w/ Metric Knockouts & Terminals

K 9355 - Thermoplastic Indoor Enclosures w/ Metric Knockouts & Terminals

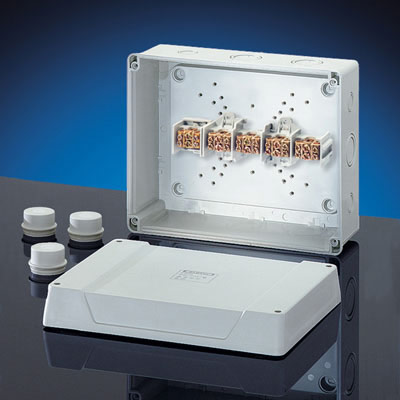

K 9355 - Polystyrene Indoor Enclosures w/ Metric Knockouts & Terminals W 10.24" (260 mm) x H 8.27" (210 mm) x D 4.57" (116 mm)
  Enlarge Picture

K 9355 - Polystyrene Indoor Enclosures w/ Metric Knockouts & Terminals W 10.24" (260 mm) x H 8.27" (210 mm) x D 4.57" (116 mm)
Enlarge Picture
W 10.24" (260 mm) x H 8.27" (210 mm) x D 4.61" (117 mm)
rated connecting capacity 3~ 16-35 mm�
conductor material: Cu
Polarity 5-pole, per pole
conductor cross section s 6 x 16 mm�
s 4 x 25 mm�
s 4 x 35 mm�
s 2 x 50 mm�
current carrying capacity of the terminal 125 A
rated insulation voltage 690 V
degree of protection: IP 55 (ESM)
degree of protection: (refer to index LES) IP 65
material: thermoplastic
color: gray RAL 7035
cable entry included 3 ESM 40
sealing range � 17-30 mm

SpacerAccessories Accessories

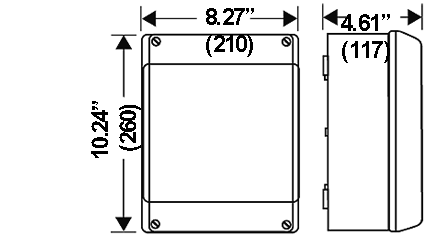

Detailed Dimensions Detailed Dimensions
SpacerHole Configuration: Hole Configuration: Number of Holes & Sizes

K9355 Features & Applications

Cable junction box K 9355
Application area Suitable for indoor installation and outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737
Resistant to occasional cleaning procedures (direct jet) Resistant to occasional cleaning procedures (direct jet) with high-pressure cleaner without additives, water pressure: max. 100 bar, water temperature: max. 80� C, distance => 0,15 m, in accordance with the requirements IP 69K, enclosure and cable glands at least IP 65
ambient temperature Average value over 24 hours + 35� C
Maximum value + 40� C
Minimum value - 25� C
Relative humidity 50% at 40� C short-time 100% at 25� C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650�C for boxes and cable glands - 850�C for parts of insulating material necessary to retain current carrying parts in position
Fire protection in the event of specific risks or hazards Demands placed on electrical installations and devices in areas and facilities subject to fire risk, e.g. DIN VDE 0100 Part 482, official regulations, VdS directives Minimum requirements - Glow wire test to IEC 60 695-2-11: - 850�C for boxes and cable glands - 850�C for cavity wall installation - Use of fire resistant cables
Burning behavior Glow wire test IEC 60 695-2-11: 750� C
UL Subject 94 V-2
flame resistant self-extinguishing
degree of protection against mechanical load IK07 (2 Joule)
Toxic behavior halogen-free silicone-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note: To material properties see technical data.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
