Enclosure Home Page|Industrial Enclosures|Thermoplastic Indoor Enclosures w/ Smooth Walls (No Knockouts)

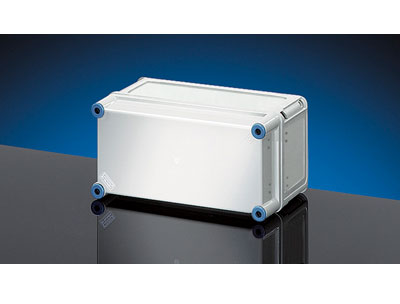

K 0101 - Thermoplastic Indoor Enclosures w/ Smooth Walls

K 0101
  Enlarge Picture

K 0101
Enlarge Picture
rated current: for built-in equipment bis 63 A
degree of protection: IP 65
mounting width 275 mm
mounting height 125 mm
material: thermoplastic
max. installation depth with built-in mounting plate 146 mm
color: gray RAL 7035

SpacerAccessories Accessories
SpacerDetailed Dimensions Detailed Dimensions

K0101 Features & Applications


empty box K 0101
Application area Suitable for indoor installation and outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737
ambient temperature Maximum value + 40° C
Minimum value - 25° C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650°C for boxes and cable glands - 850°C for parts of insulating material necessary to retain current carrying parts in position
Fire protection in the event of specific risks or hazards Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650°C for boxes and cable glands - 850°C for parts of insulating material necessary to retain current carrying parts in position
Burning behavior Glow wire test IEC 60 695-2-11: 750° C
UL Subject 94 V-2
flame resistant self-extinguishing
degree of protection against mechanical load IK07 (2 Joule)
Toxic behavior halogen-free silicone-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note: To material properties see technical data.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
