Enclosure Home Page|Industrial Enclosures|ThermoplasticIndoor Enclosures w/ Metric Knockouts


D 9020 - Thermoplastic Indoor Enclosures w/ Metric Knockouts

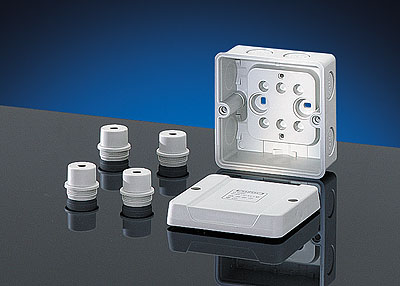

D 9020 - Polystyrene Indoor Enclosures w/ Metric Knockouts
  Enlarge Picture

D 9020 - Polystyrene Indoor Enclosures w/ Metric Knockouts

Enlarge Picture

Part Number:
D 9020
Add to Quote
Quantity

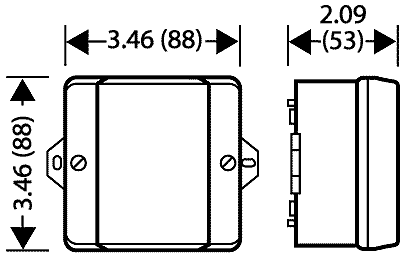

W 3.46" (88 mm) x H 3.46" (88 mm) x D 2.09" (53 mm)

Approval mark vde
degree of protection: IP 55 (with ESM Grommet)
degree of protection: IP 65 (with Liquid Tight Cable Gland)
mounting width 59 mm
mounting height 66 mm
material: thermoplastic
max. installation depth 37 mm
color: gray RAL 7035
cable entry included 4 ESM 20 Grommets
sealing range � 6-13 mm
in accordance with IEC 60,670-22
Accessories Accessories
Detailed Dimensions Detailed Dimensions
Hole Configuration: Hole Configuration: Number of Holes and Sizes

D9020 Features & Applications

Application:

Application area Suitable for indoor installation and outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737
Resistant to occasional cleaning procedures (direct jet) Resistant to occasional cleaning procedures (direct jet) with high-pressure cleaner without additives, water pressure: max. 100 bar, water temperature: max. 80� C, distance => 0,15 m, in accordance with the requirements IP 69K, enclosure and cable glands at least IP 65
ambient temperature Maximum value + 40� C
Minimum value - 25� C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650�C for boxes and cable glands - 850�C for parts of insulating material necessary to retain current carrying parts in position
Fire protection in the event of specific risks or hazards Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650�C for boxes and cable glands - 850�C for parts of insulating material necessary to retain current carrying parts in position
Burning behaviour Glow wire test IEC 60 695-2-11: 750� C
UL Subject 94 V-2
flame resistant self-extinguishing
degree of protection against mechanical load IK07 (2 Joule)
Toxic behaviour halogen-free silicone-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note: To material properties see technical data.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
