Enclosure Home Page|Industrial Enclosures|Thermoplastic Indoor Enclosures w/ Smooth Walls (No Knockouts)

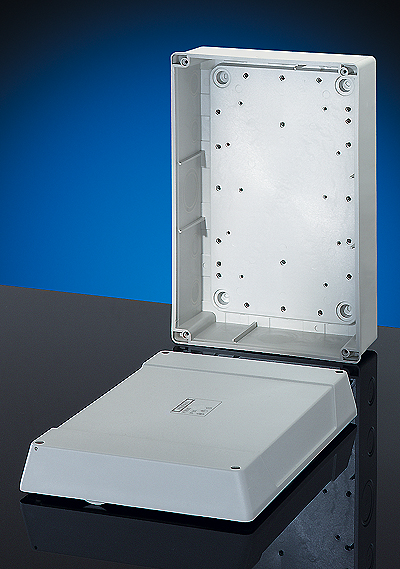

K 8500 - Thermoplastic Indoor Enclosures w/ Smooth Walls

K 8500
  Enlarge Picture

K 8500
Enlarge Picture

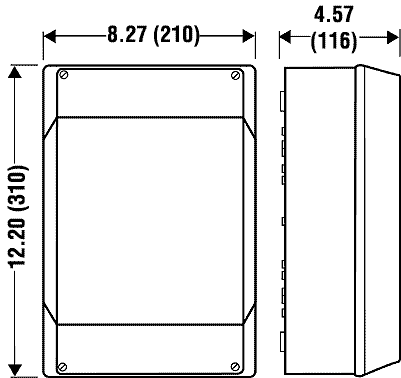

W 12.20" (310 mm) x H 8.27" (210 mm) x D 4.61" (117 mm)

degree of protection IP 65
material thermoplastic
mounting width 180 mm
mounting height 280 mm
max. installation depth 95 mm
color gray RAL 7035
cable entry wall surface can be drilled individually for cable entry max. M 50

SpacerAccessories Accessories
SpacerDetailed Dimensions Detailed Dimensions

K8500 Features & Applications

Application:
This Enclosure box is suitable for indoor installation and protected outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737.
Resistant to occasional cleaning procedures (direct jet) max. with high-pressure cleaner
without additives water pressure: max. 65 bar, water temperature: max. 50° C, distance => 0.5
m box and cable entries at least IP 65.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and cinema complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
