Enclosure Home Page|Industrial Enclosures|Close-Out Sale Selection


KV 9236 - Polystyrene Indoor Enclosures w/ PG Knockouts
KV9236 Polystyrene Enclosure Close-Out Price
$82.35
Stock
16

Enlarge Picture

Enlarge Picture

15.87 (403 mm) x 19.02 (483 mm) x 5.08" (129 mm), 36 Modules 2 x 18 x 18 mm, 2-row
FIXCONNECT� Plug-in Terminal Technology PE+N: 8 x 25 mm2 ,32 x4 mm2, Cu

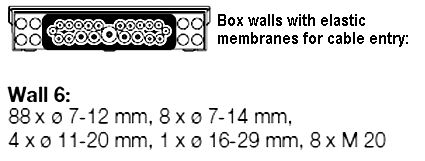

  • 8 x M20 Knockout / 88 x � 7-12 mm, 8 x � 7-14 mm, 4 x � 11-20 mm, 1 x � 16-29 mm Membrane Hole
  • for for the installation of DIN Rail equipment, top hat profile 35 mm
  • with cable entry cover
  • with transparent door
  • with blanking strips for unused DIN Rail openings
  • material thormoplastic
  • rated insulation voltage AC 400 V
degree of protection IP 55 (with ESM Grommet)
degree of protection IP 65 (with Liquid Tight Cable Gland)
material thermoplastic
color gray RAL 7035
sealing range Ø 6-13 mm

Accessories Accessories
Detailed Dimensions Detailed Dimensions
Hole Configuration: Hole Configuration: Number of Holes and Sizes

KV 9236 Features & Applications

High quality Thermoplastic (Polystyrene):
  • Solid, modern and user-friendly design
  • Color: Gray RAL 7035
  • Halogen-free and Silicone-free
  • Fire-resistant & Self-extinguishing
  • RoHS Compliant
  • Stainless Steel fastening screws
  • Accessories included in box
  • Maintenance-free
  • Cable Entry: Metric Knockouts

Application:
This Enclosure box is suitable for indoor installation and protected outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737.
Resistant to occasional cleaning procedures (direct jet) max. with high-pressure cleaner
without additives water pressure: max. 65 bar, water temperature: max. 50° C, distance => 0.5
m box and cable entries at least IP 65.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
