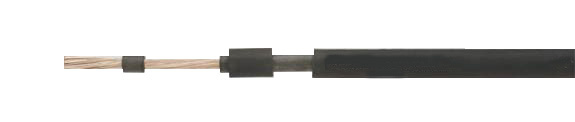

European Special Cables: SOLARFLEX 111 Thinline LiTPETPE

Double Insulated, 0.6/1 kV, UV-Resistant, Applied for VDE & TÜV Certifications

Hi-Tech Controls, Inc, European & Domestic cable

Special Cables: SOLARFLEX 111 Thinline-Double insulated, 0.6/1 kV, UV-resistant, VDE and TÜV certified
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
Conductor/ Jacket Color AWG
702989  SOLARFLEX 111 1X2.5 5.4 24.0 46.0 black/black -
702991  SOLARFLEX 111 1X2.5 5.4 24.0 46.0 red/black -
702990  SOLARFLEX 111 1X2.5 5.4 24.0 46.0 blue/black -
702992  SOLARFLEX 111 1X4 6.0 38.4 68.0 black/black -
702994  SOLARFLEX 111 1X4 6.0 38.4 68.0 red/black -
702993  SOLARFLEX 111 1X4 6.0 38.4 68.0 blue/black -
702995  SOLARFLEX 111 1X6 6.8 57.6 95.0 black/black -
702997  SOLARFLEX 111 1X6 6.8 57.6 95.0 red/black -
702996  SOLARFLEX 111 1X6 6.8 57.6 95.0 blue/black -
702998  SOLARFLEX 111 1X10 8.0 96.0 110.0 black/black -
703000  SOLARFLEX 111 1X10 8.0 96.0 110.0 red/black -
702999  SOLARFLEX 111 1X10 8.0 96.0 110.0 blue/black -
703001  SOLARFLEX 111 1X16 9.4 153.6 170.0 black/black -
703003  SOLARFLEX 111 1X16 9.4 153.6 170.0 red/black -
703002  SOLARFLEX 111 1X16 9.4 153.6 170.0 blue/black -
703006  SOLARFLEX 111 1X25 11.2 240.0 280.0 black/black -
703004  SOLARFLEX 111 1X25 11.2 240.0 280.0 red/black -
703005  SOLARFLEX 111 1X25 11.2 240.0 280.0 blue/black -
703009  SOLARFLEX 111 1X35 12.8 336.0 336.0 black/black -
703007  SOLARFLEX 111 1X35 12.8 336.0 336.0 red/black -
703008  SOLARFLEX 111 1X35 12.8 336.0 336.0 blue/black -
703012  SOLARFLEX 111 1X50 14.6 480.0 480.0 black/black -
703011  SOLARFLEX 111 1X50 14.6 480.0 480.0 red/black -
703010  SOLARFLEX 111 1X50 14.6 480.0 480.0 blue/black -
703015  SOLARFLEX 111 1X70 17.4 672.0 672.0 black/black -
703013  SOLARFLEX 111 1X70 17.4 672.0 672.0 red/black -
703014  SOLARFLEX 111 1X70 17.4 672.0 672.0 blue/black -
703018  SOLARFLEX 111 1X95 20.0 912.0 912.0 black/black -
703016  SOLARFLEX 111 1X95 20.0 912.0 912.0 red/black -
703017  SOLARFLEX 111 1X95 20.0 912.0 912.0 blue/black -
703021  SOLARFLEX 111 1X120 21.0 1152.0 1152.0 black/black -
703019  SOLARFLEX 111 1X120 21.0 1152.0 1152.0 red/black -
703020  SOLARFLEX 111 1X120 21.0 1152.0 1152.0 blue/black -
703024  SOLARFLEX 111 1X150 24.7 1440.0 1440.0 black/black -
703022  SOLARFLEX 111 1X150 24.7 1440.0 1440.0 red/black -
703023  SOLARFLEX 111 1X150 24.7 1440.0 1440.0 blue/black -
Technical Data European
  • Temperature Range
    -40°C to +120°C (-40° F to +248° F)
  • Nominal Voltage
    According to VDE 600/1000V AC
    900/1500 V DC
  • AC Test Voltage, 50 Hz
    4000 V
  • Minimum Bending Radius
    For fixed installation
    Approx. 4 cable Ø
Approvals
RoHS CE VDE
Cable Construction
  • Bare copper, tinned, finely stranded according to DIN VDE 0295 class 5 and IEC 60228 cl. 5
  • Special TPE insulation and jacket
  • Flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1
  • Double-insulated
Application
The power of the wind, sun and water are alternative power sources which are always available and inexhaustible. These cables are intended for photo-voltaic systems. Photo-voltaic systems convert the energy of the sun directly into electric energy. The cable is UV-radiation and temperature resistant and can be used to connect individual solar cells. Because of their excellent weather resistance, these cables can also be installed outdoors, but not buried underground or laid in water.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1.
  • No cold flow meaning optimum long-term tightness of the connection system
  • UV, ozone, weather and hydrolysis-resistant
  • Excellent resistance to oils and chemicals
  • Robust and abrasion-resistant
  • Resistant to short circuits up to 250°C thanks to their double insulation
  • Recyclable
  • Good flexibility
  • RoHS approved
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
