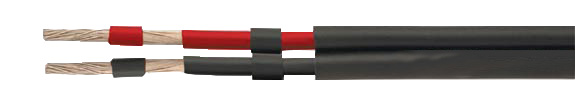

European Special Cables: SOLARFLEX 107 LiTPEPUR

Double Insulated, 0.6/1 kV, UV-Resistant

Hi-Tech Controls, Inc, European & Domestic cable

Special Cables: SOLARFLEX 107 LiTPEPUR, Double Insulated, 0.6/1 kV, Halogen-Free, UV-Resistant, VDE Certified
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
Conductor/ Jacket Color AWG
702248  SOLARFLEX 107 2X2.5

10.4

48.0 95.0 red/black -
704400  SOLARFLEX 107 2X4 11.9 76.8 135.0 red/black -
Technical Data European
  • Temperature Range
    -40°C to +90°C (-40° F to +194° F)
    -40°C to +120°C (-40° F to +248° F) 3000 hours
  • Nominal Voltage
    600/1000 V
  • Test Voltage, 50 Hz
    4000 V
  • Insulation Resistance
    Min. 200 MOhm/km
  • Minimum Bending Radius
    Approx. 4 cable Ø
Approvals
RoHS
Cable Construction
  • Double insulated, PUR jacket and TPE conductor insulation, halogen-free
  • Bare copper, tinned, finely stranded according to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • Flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 and according to UL 1581 "cable flame test"
Application
The power of the wind, sun and water are alternative power sources which are always available and inexhaustible. These cables are intended for photo-voltaic systems. Photo-voltaic systems convert the energy of the sun directly into electric energy. The cable is UV-radiation and temperature resistant and can be used to connect individual solar cells. Because of their excellent weather resistance, these cables can also be installed outdoors, but not buried underground or laid in water.
Properties
  • Very robust and abrasion-resistant jacket
  • Excellent oil and chemical resistance
  • Flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 and according to UL 1581 "cable flame test"
  • No cold flow meaning optimum long-term tightness of the connection systems
  • UV, ozone, weather adn hydrolysis-resistant
  • Excellent resistance to oils and chemicals
  • Robust and abrasion-resistant jacket
  • Resistant to short circuits up to 250°C thanks to their double insulation
  • Easy machine processing
  • Recyclable
  • RoHS approved
Note
  • RoHS approved
Cable Accessories
  • Coming Soon!
