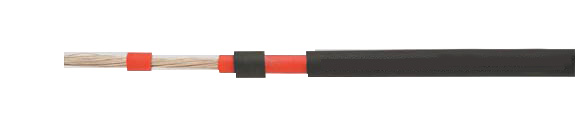

European Special Cables: SOLARFLEX 100 LiPEPUR

Double Insulated, 0.6/1 kV, UV-Resistant, Halogen-Free, VDE Reg. No. 7837 & TÜV Certified, UL approval upon request

Hi-Tech Controls, Inc, European & Domestic cable

Special Cables: SOLARFLEX 100-Double insulated, 0.6/1 kV, UV-resistant, halogen-free, VDE Reg. No. 7837 and TÜV certified, UL-approval upon request
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
Conductor/ Jacket Color AWG
700549  SOLARFLEX 100 1X2.5 5.8 24.0 55.0 red/black 14
701504  SOLARFLEX 100 1X2.5 5.8 24.0 55.0 blue/black 14
701505  SOLARFLEX 100 1X2.5 5.8 24.0 55.0 black/black 14
700277  SOLARFLEX 100 1X4 6.7 38.4 85.0 red/black 12
701506  SOLARFLEX 100 1X4 6.7 38.4 85.0 blue/black 12
701507  SOLARFLEX 100 1X4 6.7 38.4 85.0 black/black 12
700278  SOLARFLEX 100 1X6 7.6 57.6 95.0 red/black 10
701508  SOLARFLEX 100 1X6 7.6 57.6 95.0 blue/black 10
701509  SOLARFLEX 100 1X6 7.6 57.6 95.0 black/black 10
700368  SOLARFLEX 100 1X10 9.6 96.0 110.0 black/black 8
701510  SOLARFLEX 100 1X10 9.6 96.0 110.0 blue/black 8
701511  SOLARFLEX 100 1X10 9.6 96.0 110.0 red/black 8
700369  SOLARFLEX 100 1X16 11.0 153.6 170.0 black/black 6
701512  SOLARFLEX 100 1X16 11.0 153.6 170.0 blue/black 6
701513  SOLARFLEX 100 1X16 11.0 153.6 170.0 red/black 6
702188  SOLARFLEX 100 1X25 13.1 240.0 295.0 red/black -
702189  SOLARFLEX 100 1X25 13.1 240.0

295.0

black/blue -
702190  SOLARFLEX 100 1X25 13.1 240.0 295.0 black/black -
702192  SOLARFLEX 100 1X35 14.1 336.0 395.0 black/blue -
702191  SOLARFLEX 100 1X35 14.1 336.0 395.0 red/black -
702193  SOLARFLEX 100 1X35 14.1 336.0 395.0 black/black -
701963  SOLARFLEX 100 1X50 17.4 480.0 630.0 black/blue -
701943  SOLARFLEX 100 1X50 14.1 336.0 395.0 red/black -
701964  SOLARFLEX 100 1X50 17.4 480.0 630.0 black/black -
701965  SOLARFLEX 100 1X70 18.9 672.0 850.0 black/blue -
701944  SOLARFLEX 100 1X70 18.9 672.0 850.0 red/black -
701966  SOLARFLEX 100 1X70 18.9 672.0 850.0 black/black -
701967  SOLARFLEX 100 1X95 21.8 912.0 1200.0 black/blue -
701945  SOLARFLEX 100 1X95 21.8 912.0 1200.0 red/black -
701968  SOLARFLEX 100 1X95 21.8 912.0 1200.0 black/black -
701969  SOLARFLEX 100 1X120 24.3 1152.0 1550.0 black/blue -
701946  SOLARFLEX 100 1X120 24.3 1152.0 1550.0 red/black -
701970  SOLARFLEX 100 1X120 24.3 1152.0 1550.0 black/black -
701971  SOLARFLEX 100 1X150 26.6 1440.0 1730.0 black/blue -
701972  SOLARFLEX 100 1X150 26.6 1440.0 1730.0 black/black -
Technical Data European
  • Temperature Range
    -40°C to +90°C (-40° F to +194° F)
    UL to +80°C (+176° F)
    -40°C to +120°C (-40° F to +248° F) 3000 hours
  • Nominal Voltage
    According to VDE 600/1000V AC, 900/1500V DC
    According to UL 1000V
  • AC Test Voltage, 50 Hz
    4000 V
  • Minimum Bending Radius
    For fixed installation
    Approx. 4 cable Ø
Approvals
RoHSULCE VDE
Cable Construction
  • Bare copper, tinned, finely stranded fine wire conductor to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
  • Special TPE insulation
  • PUR jacket, halogen-free and flame retardant
  • ROHS Approved
Application
The power of the wind, sun and water are alternative power sources which are always available and inexhaustible. These cables are intended for photo-voltaic systems. Photo-voltaic systems convert the energy of the sun directly into electric energy. The cable is UV-radiation and temperature resistant and can be used to connect individual solar cells. Because of their excellent weather resistance, these cables can also be installed outdoors, but not buried underground or laid in water.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Halogen-free and flame retardant acc. to VDE 0485-332-2, DIN EN 60332-1 and according to UL 1581 "cable flame test"
  • UV, ozone, weather and hydrolosis-resistant
  • Excellent oil and chemical resistance
  • Resistant to short-circuits up to 250 C thanks to their double insulation
  • No cold flow meaning optimum long-term tightness of the connection systems
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
