European Special Cables:

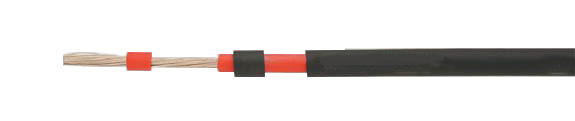

SOLARFLEX 110 Thinline LiTPEPUR

Double Insulated, 0.6/1 kV, UV-Resistant, Halogen-Free, Applied for VDE & TÜV Certifications

Hi-Tech Controls, Inc, European & Domestic cable

Special Cables: SOLARFLEX 110 Thinline-Double insulated, 0.6/1 kV, UV-resistant, halogen-free, VDE and TÜV certified
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
Conductor/ Jacket Color AWG
702953  SOLARFLEX 110 1X2.5 5.4 24.0 55.0 red/black -
702955  SOLARFLEX 110 1X2.5 5.4 24.0 55.0 black/black -
702954  SOLARFLEX 110 1X2.5 5.4 24.0 55.0 blue/black -
702958  SOLARFLEX 110 1X4 6.0 38.4 85.0 black/black -
702956  SOLARFLEX 110 1X4 6.0 38.4 85.0 red/black -
702957  SOLARFLEX 110 1X4 6.0 38.4 85.0 blue/black -
702961  SOLARFLEX 110 1X6 6.8 57.6 95.0 black/black -
702959  SOLARFLEX 110 1X6 6.8 57.6 95.0 red/black -
702960  SOLARFLEX 110 1X6 6.8 57.6 95.0 blue/black -
702962  SOLARFLEX 110 1X10 8.0 96.0 110.0 black/black -
702964  SOLARFLEX 110 1X10 8.0 96.0 110.0 red/black -
702963  SOLARFLEX 110 1X10 8.0 96.0 110.0 blue/black -
702965  SOLARFLEX 110 1X16 9.4 153.6 170.0 black/black -
702967  SOLARFLEX 110 1X16 9.4 153.6 170.0 red/black -
702966  SOLARFLEX 110 1X16 9.4 153.6 170.0 blue/black -
702970  SOLARFLEX 110 1X25 11.2 240.0 295.0 black/black -
702968  SOLARFLEX 110 1X25 11.2 240.0 295.0 red/black -
702969  SOLARFLEX 110 1X25 11.2 240.0 295.0 blue/black -
702973  SOLARFLEX 110 1X35 12.8 336.0 395.0 black/black -
702971  SOLARFLEX 110 1X35 12.8 336.0 395.0 red/black -
702972  SOLARFLEX 110 1X35 12.8 336.0 395.0 blue/black -
702976  SOLARFLEX 110 1X50 14.6 480.0 630.0 black/black -
702974  SOLARFLEX 110 1X50 14.6 480.0 630.0 red/black -
702975  SOLARFLEX 110 1X50 14.6 480.0 630.0 blue/black -
702979  SOLARFLEX 110 1X70 17.4 672.0 850.0 black/black -
702977  SOLARFLEX 110 1X70 17.4 672.0 850.0 red/black -
702978  SOLARFLEX 110 1X70 17.4 672.0 850.0 blue/black -
702982  SOLARFLEX 110 1X95 20.0 912.0 1200.0 black/black -
702980  SOLARFLEX 110 1X95 20.0 912.0 1200.0 red/black -
702981  SOLARFLEX 110 1X95 20.0 912.0 1200.0 blue/black -
702985  SOLARFLEX 110 1X120 21.0 1152.0 1550.0 black/black -
702983  SOLARFLEX 110 1X120 21.0 1152.0 1550.0 red/black -
702984  SOLARFLEX 110 1X120 21.0 1152.0 1550.0 blue/black -
702988  SOLARFLEX 110 1X150 24.7 1440.0 1730.0 black/black -
702986  SOLARFLEX 110 1X150 24.7 1440.0 1730.0 red/black -
702987  SOLARFLEX 110 1X150 24.7 1440.0 1730.0 blue/black -
Technical Data European
  • Temperature Range
    -40°C to +90°C (-40° F to +194° F)
    -40°C to +120°C (-40° F to +152° F) 3000 hours
  • Nominal Voltage
    According to VDE 600/1000 V AC, 900/1500 V DC
  • AC Test Voltage, 50 Hz
    4000 V
  • Minimum Bending Radius
    For fixed installation
    Approx. 4 cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper, tinned, finely stranded according to DIN VDE 0295 class 5 and IEC 60228 cl. 5
  • PUR jacket, halogen-free, special TPE insulation
  • PUR jacket, halogen-free
  • Flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 and according to UL 1581 "cable flame test"
Application
The power of the wind, sun and water are alternative power sources which are always available and inexhaustible. These cables are intended for photo-voltaic systems. Photo-voltaic systems convert the energy of the sun directly into electric energy. The cable is UV-radiation and temperature resistant and can be used to connect individual solar cells. Because of their excellent weather resistance, these cables can also be installed outdoors, but not buried underground or laid in water.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Halogen-free and flame-resistant according to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 and according to UL 1581 "cable flame test"
  • No cold flow meaning optimum long-term tightness of the connection system
  • Excellent oil and chemical resistance
  • UV, ozone, weather and hydrolysis-resistant
  • Resistant to short circuits up to 250°C thanks to their double insulation
  • Great flexibility
  • Easy machine processing
  • Recyclable
  • RoHS approved
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
