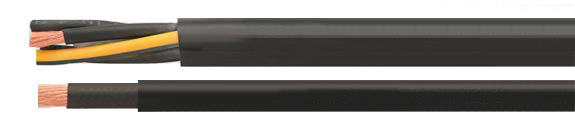

European Special Cables: HELUWIND WK 135-Torsion
Wind Power Cable - UV-Resistant, Suitable for Offshore, Single & Multi Conductor, UL & CSA-Style 10553/20234, 0.6/1kV, 90°C/194°F (80°C/176°F in accordance with UL)

Sealcon, Inc, European & Domestic cable

Special Cables, Cables for Renewable Energy, Heluwind, Helu Wind, Wind Power Cable, Heluwind WK 135-Torsion, WK 135-Torsion, for windpower systems, RoHS Approved, RoHS Compliant, FT4, UV Resistant, Single, Multicore, Shielded, Unshielded, Seawater Resistant, 703668, 703669, 703671, 703289, 703673, 703291, 703292, 703293, 703294, 704699, 703295, 704700, 704701, 704702, 704703, 703296, 704704, 704705, 704706, 703297, 704038, 704707, 704708, 704709, 704710, 704711, 704712, 704713, 704714, 704715, 704716, 704717, 704718, 704719, 704720, 704721, 704722, 703298, 703299, 703300, 703301, 704723, 703302, 704724, 704725, 704726, 704727, 704728, 704729, 704730, 704731, 704732, 704733, 703303, 703304, 703305, 703306, 704734, 703307, 705046, 704735, 704736, 703308, 703309, 703310, 704737, 704738, 704471, 704739, 703311, 703312, 704740, 703313, 703314, 703315, 703316, 704742, 704743, 704744, 705108, 704741, 703317, 703318, 703319, 703320, 703321, 703322, 703323, 704745, Sealcon, European
AWG Selection
22 22 20 20 19 19 18 18 16 16 14 14 12 12 10 10 8 8 6 6 4 4
2 2 1 1 2/0 2/0 3/0 3/0 4/0 4/0 300 300 350 350 500 500 600 600 750 750
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG / MCM

703668

 HELUWIND WK 135-Torsion 4x0.34 mm2 7.1 29.0 88.0 22

703669

 HELUWIND WK 135-Torsion 4x0.5 mm2 7.4 34.0 98.0 20

703671

 HELUWIND WK 135-Torsion 6x0.5 mm2 8.6 49.0 122.0 20

703289

 HELUWIND WK 135-Torsion 10x0.5 mm2 10.8 48.0 165.0 20

703673

 HELUWIND WK 135-Torsion 12x0.5 mm2 11.1 84.0 208.0 20

703291

 HELUWIND WK 135-Torsion 3x0.75 mm2 7.3 22.0 77.0 19

703291

 HELUWIND WK 135-Torsion 4x0.75 mm2 7.9 29.0 100.0 19

703293

 HELUWIND WK 135-Torsion 5x0.75 mm2 8.6 36.0 120.0 19

703294

 HELUWIND WK 135-Torsion 7x0.75 mm2 10.0 51.0 170.0 19

704699

 HELUWIND WK 135-Torsion 10x0.75 mm2 11.0 72.0 200.0 19

703295

 HELUWIND WK 135-Torsion 12x0.75 mm2 11.8 87.0 220.0 19

704700

 HELUWIND WK 135-Torsion 14x0.75 mm2 12.5 101.0 238.0 19

704701

 HELUWIND WK 135-Torsion 16x0.75 mm2 13.2 116.0 271.0 19

704702

 HELUWIND WK 135-Torsion 18x0.75 mm2 13.9 130.0 310.0 19

704703

 HELUWIND WK 135-Torsion 21x0.75 mm2 15.2 152.0 380.0 19

703296

 HELUWIND WK 135-Torsion 25x0.75 mm2 16.9 180.0 490.0 19

704704

 HELUWIND WK 135-Torsion 32x0.75 mm2 18.2 231.0 560.0 19

704705

 HELUWIND WK 135-Torsion 36x0.75 mm2 19.1 260.0 620.0 19

704706

 HELUWIND WK 135-Torsion 40x0.75 mm2 20.5 288.0 729.0 19

703297

 HELUWIND WK 135-Torsion 41x0.75 mm2 20.8 296.0 750.0 19

704038

 HELUWIND WK 135-Torsion 50x0.75 mm2 23.5 441.0 990.0 19

704707

 HELUWIND WK 135-Torsion 4x1 mm2 8.3 39.0 100.0 18

704708

 HELUWIND WK 135-Torsion 5x1 mm2 9.0 48.0 110.0 18

704709

 HELUWIND WK 135-Torsion 7x1 mm2 10.5 68.0 140.0 18

704710

 HELUWIND WK 135-Torsion 10x1 mm2 13.0 96.0 220.0 18

704711

 HELUWIND WK 135-Torsion 12x1 mm2 13.2 116.0 240.0 18

704712

 HELUWIND WK 135-Torsion 14x1 mm2 13.4 135.0 280.0 18

704713

 HELUWIND WK 135-Torsion 16x1 mm2 14.1 154.0 310.0 18

704714

 HELUWIND WK 135-Torsion 18x1 mm2 15.1 173.0 360.0 18

704715

 HELUWIND WK 135-Torsion 21x1 mm2 16.7 202.0 410.0 18

704716

 HELUWIND WK 135-Torsion 25x1 mm2 18.4 240.0 500.0 18

704717

 HELUWIND WK 135-Torsion 32x1 mm2 19.8 308.0 590.0 18

704718

 HELUWIND WK 135-Torsion 36x1 mm2 20.6 346.0 700.0 18

704719

 HELUWIND WK 135-Torsion 40x1 mm2 22.4 384.0 800.0 18

704720

 HELUWIND WK 135-Torsion 41x1 mm2 22.4 394.0 810.0 18

704721

 HELUWIND WK 135-Torsion 50x1 mm2 24.6 480.0 980.0 18

704722

 HELUWIND WK 135-Torsion 2x1.5 mm2 7.9 29.0 75.0 16

703298

 HELUWIND WK 135-Torsion 3x1.5 mm2 8.0 44.0 110.0 16

703299

 HELUWIND WK 135-Torsion 4x1.5 mm2 8.9 58.0 131.0 16

703300

 HELUWIND WK 135-Torsion 5x1.5 mm2 9.7 72.0 165.0 16

703301

 HELUWIND WK 135-Torsion 7x1.5 mm2 12.0 101.0 210.0 16

704723

 HELUWIND WK 135-Torsion 10x1.5 mm2 13.1 144.0 270.0 16

703302

 HELUWIND WK 135-Torsion 12x1.5 mm2 14.3 173.0 360.0 16

704724

 HELUWIND WK 135-Torsion 14x1.5 mm2 14.9 202.0 420.0 16

704725

 HELUWIND WK 135-Torsion 16x1.5 mm2 15.7 231.0 450.0 16

704726

 HELUWIND WK 135-Torsion 18x1.5 mm2 16.8 260.0 510.0 16

704727

 HELUWIND WK 135-Torsion 21x1.5 mm2 17.8 303.0 590.0 16

704728

 HELUWIND WK 135-Torsion 25x1.5 mm2 20.6 360.0 700.0 16

704729

 HELUWIND WK 135-Torsion 32x1.5 mm2 22.2 460.0 900.0 16

704730

 HELUWIND WK 135-Torsion 36x1.5 mm2 23.1 519.0 980.0 16

704731

 HELUWIND WK 135-Torsion 40x1.5 mm2 25.0 576.0 1030.0 16

704732

 HELUWIND WK 135-Torsion 41x1.5 mm2 25.0 591.0 1050.0 16

704733

 HELUWIND WK 135-Torsion 50x1.5 mm2 27.7 720.0 1200.0 16

703303

 HELUWIND WK 135-Torsion 3x2.5 mm2 10.0 72.0 180.0 14

703304

 HELUWIND WK 135-Torsion 4x2.5 mm2 9.7 96.0 230.0 14

703305

 HELUWIND WK 135-Torsion 52.5 mm2 11.1 120.0 250.0 14

703306

 HELUWIND WK 135-Torsion 7x2.5 mm2 14.4 168.0 360.0 14

704734

 HELUWIND WK 135-Torsion 10x2.5 mm2 15.8 240.0 480.0 14

703307

 HELUWIND WK 135-Torsion 12x2.5 mm2 16.2 288.0 580.0 14

705046

 HELUWIND WK 135-Torsion 19x2.5 mm2 22.0 288.0 690.0 14

704735

 HELUWIND WK 135-Torsion 3x4 mm2 10.8 116.0 250.0 12

704736

 HELUWIND WK 135-Torsion 4x4 mm2 12.0 154.0 270.0 12

703308

 HELUWIND WK 135-Torsion 5x4 mm2 13.2 192.0 340.0 12

703309

 HELUWIND WK 135-Torsion 7x4 mm2 15.9 269.0 530.0 12

703310

 HELUWIND WK 135-Torsion 12x4 mm2 19.6 461.0 740.0 12

704737

 HELUWIND WK 135-Torsion 3x6 mm2 13.1 173.0 340.0 10

704738

 HELUWIND WK 135-Torsion 4x6 mm2 14.6 231.0 460.0 10

704738

 HELUWIND WK 135-Torsion 5x6 mm2 16.3 288.0 550.0 10

704739

 HELUWIND WK 135-Torsion 7x6 mm2 19.6 404.0 780.0 10

703311

 HELUWIND WK 135-Torsion 4x10 mm2 17.4 384.0 670.0 8

703312

 HELUWIND WK 135-Torsion 5x10 mm2 20.9 480.0 930.0 8

704740

 HELUWIND WK 135-Torsion 7x10 mm2 23.5 672.0 1150.0 8

703313

 HELUWIND WK 135-Torsion 4x16 mm2 23.2 615.0 1100.0 6

703314

 HELUWIND WK 135-Torsion 5x16 mm2 25.8 768.0 1390.0 6

703315

 HELUWIND WK 135-Torsion 4x25 mm2 26.2 960.0 1650.0 4

703316

 HELUWIND WK 135-Torsion 5x25 mm2 29.7 1200.0 1990.0 4

704742

 HELUWIND WK 135-Torsion 4x35 mm2 30.6 1344.0 2100.0 2

704743

 HELUWIND WK 135-Torsion 5x35 mm2 35.4 1680.0 2600.0 2

704744

 HELUWIND WK 135-Torsion 4x50 mm2 35.5 1920.0 2600.0 1

705108

 HELUWIND WK 135-Torsion 4x95 mm2 47.7 3648.0 5500.0 3/0

704741

 HELUWIND WK 135-Torsion 1x35 mm2 13.4 336.0 460.0 2

703317

 HELUWIND WK 135-Torsion 1x70 mm2 18.2 672.0 930.0 2/0

703318

 HELUWIND WK 135-Torsion 1x95 mm2 21.9 912.0 1230.0 3/0

703319

 HELUWIND WK 135-Torsion 1x120 mm2 24.3 1152.0 1520.0 4/0

703320

 HELUWIND WK 135-Torsion 1x150 mm2 27.2 1440.0 1870.0 300

703321

 HELUWIND WK 135-Torsion 1x185 mm2 29.4 1776.0 2300.0 350

703322

 HELUWIND WK 135-Torsion 1x240 mm2 32.3 2304.0 2900.0 500

703322

 HELUWIND WK 135-Torsion 1x300 mm2 32.8 2880.0 3520.0 600

704745

 HELUWIND WK 135-Torsion 1x400 mm2 39.3 3840.0 4500.0 750
Technical Data European
  • Temperature Range
    Flexing
    -40°C to +90°C (-40°F to +194°F)
    Fixed Installation acc. to VDE
    -40°C to +90°C (-40°F to +194°F)
    Fixed Installation acc. to UL
    Up to +80°C (-176°F)
  • Nominal Voltage
    According to VDE U0/U 0.6/1 kV, according to UL 1000V
    Also for 1500V DC capable
  • Test Voltage, 50 Hz
    3000V
  • Minimum Bending Radius
     10x cable Ø (4x Fixed Installation)
  • Torsion Application
     Torsion up to +/-150° per 1m
  • Approvals
    UL style 10553 Single Conductor types
    UL style 20234 Multi Conductor types
    cRUus, CE certified
  • Tests
     Fire IC 60332-3-24, halogen-free IEC 60754-1
    Smoke density IEC 61034-1+2
Approvals
RoHSUL CSA CE VDE
Cable Construction
  • Special bare stranded copper wire, acc. to DIN VDE 0295
  • Special conductor insulation
  • Conductor colors, black with numbers + gnye
  • Multiconductor types cables
  • Special jacket compound, non-adhesive
  • Jacket Color: Black
Application
The HELUWIND WK 135-Torsion series was specifically designed for wind power applications. We supply the leading wind turbine manufacturers. Advantages of WK 135-Torsion over H07BN4-F are increased abrasion resistance, recyclable, and flame behavior according to FT4 and IEC 60332-3-24.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Halogen-Free
  • Global application
  • Extremely abrasion-resistant
  • Highly flame-retardant
  • Torsion tested
  • Suitable for offshore
  • Extremely oil-resistant
  • UV-resistant
  • Recyclable
  • Multi-climate operation app
  • For CCV-application
  • Easy to tailor
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
