European Special Cables: HELUWIND WK 102

Wind Power Cable - Torsion, UV-Resistant, FT1

Hi-Tech Controls, Inc, European & Domestic cable

Special Cables: HELUWIND WK 102, Wind Power Cable - Torsion, UV-Resistant, FT1
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
78171  HELUWIND WK 102 2X1.5 7. 28.8 65.0
78172  HELUWIND WK 102 3X4 12.0 116.0 250.0
78173   HELUWIND WK 102 1X240 31.2 2304.0 2800.0
78174   HELUWIND WK 102 1X300 37.0 2880.0 3800.0
Technical Data European
  • Temperature Range
    Flexing
    -40°C to +80°C (-40°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    According to VDE U0/U 0.6/1 kV
  • Test Voltage, 50 Hz
    3500V
  • Minimum Bending Radius
    10x cable Ø
  • Torsion Application
    +/- 150 per 1m
  • Flame Test
    FT1
Approvals
RoHSCE VDE

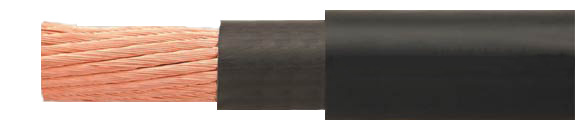

Cable Construction
  • Special bare stranded copper wire, acc. to DIN VDE 0295 class 5
  • Black PCV cold flexing insulation
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • UV resistant
  • RoHS approved
Note
  • The listed part numbers show only a small list of our production range. All types can be produced as Single or Multi Conductor, shielded or unshielded versions. Please contact us with your individual requirements.
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
