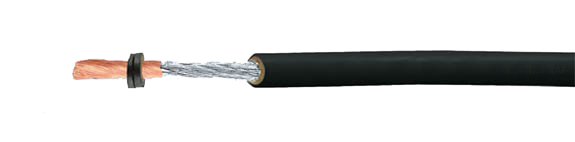

European Rubber Cable: NSHXAFÖ 3 kV

Special Rubber Insulated Cable, VDE Approved, Short Circuit Up to 1000 V

Hi-Tech Controls, Inc, European & Domestic cable

NSHXAFÖ 3KV halogen-free special rubber insulated cable, VDE approved, short circuit up to 1000V, Hi-Tech Controls, European
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
38517 NSHXAFÖ 3KV 1X1.5 7.0 14.0 62.0 16
38518 NSHXAFÖ 3KV 1X2.5 7.5 24.0 76.0 14
38519 NSHXAFÖ 3KV 1X4 9.0 38.0 95.0 12
38520 NSHXAFÖ 3KV 1X6 9.5 58.0 140.0 10
38521 NSHXAFÖ 3KV 1X10 11.0 96.0 190.0 8
38522 NSHXAFÖ 3KV 1X16 13.0 154.0 270.0 6
38523 NSHXAFÖ 3KV 1X25 15.0 240.0 410.0 4
38524 NSHXAFÖ 3KV 1X35 16.5 336.0 490.0 2
38525 NSHXAFÖ 3KV 1X50 18.0 480.0 650.0 1
38526 NSHXAFÖ 3KV 1X70 20.5 672.0 900.0 4
38527 NSHXAFÖ 3KV 1X95 24.0 912.0 1200.0 3/0
38528 NSHXAFÖ 3KV 1X120 26.0 1152.0 1450.0 4/0
38529 NSHXAFÖ 3KV 1X150 28.0 1440.0 1800.0 300 kcmil
38530 NSHXAFÖ 3KV 1X185 31.0 1776.0 2200.0 350 kcmil
38531 NSHXAFÖ 3KV 1X240 34.5 2304.0 2650.0 500 kcmil
38532 NSHXAFÖ 3KV 1X300 38.0 2880.0 3250.0 600 kcmil
We can also have your company name printed on these cables. Cables with print
Technical Data European
  • Special rubber conductor cable acc. to E DIN VDE 0250 part 606
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -25°C to +80°C (-13°F to +176°F)
  • Permissible Operating Temperature
    at conductor +90°C/+176°F
  • Nominal Voltage U0/U 1.8/3 kV
  • Highest permissible Operating Voltage
    in three-phase and one-phase
    A.C. systems U0/U 2.1/3.6 kV
    In d.c. systems U0/U 2.7/5.4 kV
  • Test Voltage 6 kV
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed 6x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper conductor, fine wire to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and/or IEC 60228 cl. 5
  • EPR-insulation, 3GI3 acc. to DIN VDE 0207 part 20
  • Halogen-free, polymer jacket GM3 acc. to DIN VDE 0207 part 24
  • Color: Black
Application
Particularly suitable for protection against short circuits in laying and for inherently ground-fault-proof routing in rail vehicles and omnibuses. Also suitable for laying in dry environments. In switching units and distributors they are considered to be short circuit and inherently ground proof to 1000 V.
Note: Considered as being short circuit safe and ground fault proof are those operating materials and conducting assemblies where because of suitable measures and/or means applied, neither a short circuit nor a short to ground is to be expected under operating conditions which are in accordance which those specified for the intended application.
Properties
  • Tests
    • Corrosiveness of corrosive gases acc. to DIN VDE 0482, part 267 / DIN EN 50267-2-2 / IEC 607542 (as per DIN VDE 0472, part 813)
    • Smoke density acc. to DIN VDE 0482, part 268 HD 606, EN 50268-1+2 / IEC 61034-1+2, BS 7622 part 1+2 (as per DIN VDE 0472, part 816)
    • Oil resistant acc. to DIN VDE 0473 part 811-2-1
    • Behavior in fire: Test acc. to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (as per DIN VDE 0472, part 804 test method B)
Note
  • No notes available at this time
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
