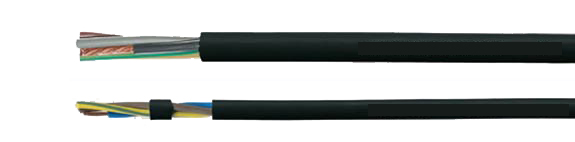

Helukable Rubber Cable: H05 RR-F / H05 RN-F

Rubber Jacket Cable, VDE Approved

Hi-Tech Controls, Inc, European & Domestic cable

H05 RR-F / H05 RN-F rubber outer jacket, VDE approved, Hi-Tech Controls, European
H05 RR-F

European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
35001 H05 RR-F 2x0.75 5.7 - 7.4 14.4 60.0 18
35005 H05 RR-F 3G0.75 6.2 - 8.1 21.6 74.0 18
35009 H05 RR-F 4G0.75 6.8 - 8.8 29.0 78.0 18
35019 H05 RR-F 5G0.75 7.6 - 9.9 36.0 99.0 18
35002 H05 RR-F 2X1 6.1 - 8.0 19.0 72.0 17
35006 H05 RR-F 3G1 6.5 - 8.5 29.0 85.0 17
35010 H05 RR-F 4G1 7.1 - 9.3 38.0 98.0 17
35020 H05 RR-F 5G1 8.0 - 10.3 48.0 134.0 17
35003 H05 RR-F 2X1.5 7.6 - 9.8 29.0 98.0 16
35007 H05 RR-F 3G1.5 8.0 - 10.4 43.0 120.0 16
35011 H05 RR-F 4G1.5 9.0 - 11.6 58.0 150.0 16
35013 H05 RR-F 5G1.5 9.8 - 12.7 72.0 180.0 16
35004 H05 RR-F 2X2.5 9.0 - 11.6 48.0 145.0 14
35008 H05 RR-F 3G2.5 9.6 - 12.4 72.0 170.0 14
35012 H05 RR-F 4G2.5 10.7 - 13.8 96.0 220.0 14
35014 H05 RR-F 5G2.5 11.9 - 15.3 120.0 270.0 14
35015 H05 RR-F 3G4 11.3 - 14.5 115.0 260.0 12
35017 H05 RR-F 4G4 12.7 - 16.2 154.0 340.0 12
35016 H05 RR-F 3G6 12.8 - 16.3 173.0 361.0 10
35018 H05 RR-F 4G4 14.2 - 18.1 230.0 462.0 10

European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Cop. weight
kg/km
Weight
ca. kg/km
AWG
36001 H05 RN-F 2x0.75 5.7 - 7.4 14.4 78.0 18
36003 H05 RN-F 3G0.75 6.2 - 8.1 21.6 94.0 18
36007 H05 RN-F 4G0.75 6.8 - 8.8 29.0 90.0 18
36008 H05 RN-F 4G0.75 6.8 - 8.8 29.0 90.0 18
36002 H05 RN-F 2x1.0 6.1 - 8.0 19.0 94.0 17
36004 H05 RN-F 3G1.0 6.5 - 8.5 29.0 114.0 17
36005 H05 RN-F 3G1.5 8.6 - 11.0 43.0 157.0 16
36006 H05 RN-F 5G1.5 10.5 - 13.5 72.0 228.0 16

We can also have your company name printed on these cables.
Cables with print
Technical Data European
  • To DIN VDE 0282 part 4, HD 22.4 S4 IEC 60245-4
  • Temperature Range
    -30°C to +60°C (-22°F to +140°F)
  • Permissible Operating Temperature
    at conductor +60°C/+140°F
  • Nominal Voltage U0/U 300/500 V
  • Max. Operating Voltage
    three-phase and one-phase a.c.
    U0/U 318/550 V
    for direct current U0/U 413/825 V
  • Test Voltage 2000 V
  • Minimum Bending Radius
    approx. 7.5x cable Ø
Approvals
RoHSCE VDE PCT
Cable Construction
  • Bare or tinned copper conductors, fine stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
  • Rubber conductor insulation EI4 to DIN VDE 0282 part 1
  • Conductors laid up
  • Conductors color coded to DIN VDE 0293-308 and HD 186
  • Outer jacket black:
    RR-F = Rubber, EM 3 to DIN VDE 0282 part 1
    RN-F = EM 2 to DIN VDE 0282 part 1
Application

H05 RR-F
These cables are suitable for connecting electrical appliances, for example: vacuum cleaners, flat irons, soldering irons, kitchen appliances, toasters, stoves, etc. They are also used for medium mechanical stress in households and offices. These cables are suitable for fixed installation in partition walls, furniture, decoration covering and in hollow spaces of prefabricated building parts.
They are suitable for use in open air for short time, in industries ( also permitted for tailor workshops) or in agriculture plants and for connecting commercial electrical tools.
H05 RN-F
These cables are suitable for connecting electrical equipment with low mechanical stress in dry, damp and wet places as well as in open air, for example as connection cable for horticulture tools. These cables can be used in contact with fats and oils (for example, deep fryer). They are also suitable for fixed installation, for example in furniture, decoration covering and in hollow spaces of prefabricated building parts.
The installation in hazardous areas is allowed.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Resistant to
    Ozone
  • Oils and fats are allowed to come in touch
  • Behavior in fire according to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • H05 RR-F has replaced the former type NLH and NMH up to 2.5 mm²
  • H05 RN-F has replaced to former type NMHÖU up to 1 mm²
    At 1.5 mm² - not in VDE; adapted to VDE (H)05 RN-F
    Art. No. 36008 = national type: A-05 RN-F
    Art. No. 36007 = (A)05 RN-F, outer jacket color gray, for window shades manufacturer
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
