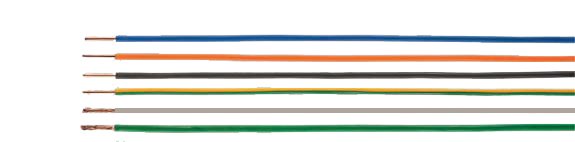

European Rubber Cable: H05G-U / H05G-K / H07G-U / H07G-R / H07G-K

Single Conductors, Rubber Jacket

Hi-Tech Controls, Inc, European & Domestic cable

H05G-U / -K / H07G-U / -R / -K single conductors, rubber jacket, Hi-Tech Controls, European
H05G-U (single wire)
H05G-K (fine wire)
H07G-U (single wire)
H07G-K (fine wire)
H07G-R (multi wire)


H05G-U (single wire)

European
Part-No.

Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Outer
Diameter Max.
Cop. weight
kg/km
Weight
ca. kg/km
AWG
541__ H05G-U 0.5 1.9 2.4 4.8 10.0 20
542__ H05G-U 0.75 2.1 2.6 7.2 15.0 18
543__ H05G-U 1.0 2.2 2.8 9.6 16.0 17

H05G-K (fine wire)
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Outer
Diameter Max.
Cop. weight
kg/km
Weight
ca. kg/km
AWG
550__ H05G-K 0.5 2.1 2.6 4.8 13.0 20
551__ H05G-K 0.75 2.2 2.8 7.2 16.0 18
552__ H05G-K 1.0 2.4 2.9 9.6 22.0 17

H07G-U (single wire)
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Outer
Diameter Max.
Cop. weight
kg/km
Weight
ca. kg/km
AWG
544__ H07G-U 1.5 2.8 3.5 14.4 24.0 16
545__ H07G-U 2.5 3.4 4.3 24.0 35.0 14
546__ H07G-U 4.0 4.0 5.0 38.0 53.0 12
H07G-K (fine wire)
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Outer
Diameter Max.
Cop. weight
kg/km
Weight
ca. kg/km
AWG
553__ H07G-K 1.5 3.0 3.7 14.4 24.0 16
554__ H07G-K 2.5 3.6 4.5 24.0 42.0 14
555__ H07G-K 4.0 4.3 5.4 38.0 61.0 12
556__ H07G-K 6.0 4.8 6.0

58.0

78.0 10
557__ H07G-K 10.0 6.0 7.6 96.0 130.0 8
558__ H07G-K 16.0 7.1 8.9 154.0 212.0 6
559__ H07G-K 25.0 8.8 11.0 240.0 323.0 4
560__ H07G-K 35.0 10.1 12.6 336.0 422.0 2
561__ H07G-K 50.0 11.9 14.9 480.0 527.0 1
562__ H07G-K 70.0 13.6 17.0 672.0 726.0 2/0
563__ H07G-K 95.0 15.5 19.3 912.0 937.0 3/0
564__ H07G-K 120.0 17.1 21.4 1152.0 1192.0 4/0

H07G-R (multi wire)
Helukabe
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Outer
Diameter Max.
Cop. weight
kg/km
Weight
ca. kg/km
AWG
547__ H07G-R 6.0 4.7 5.9 58.0 72.0 10
548__ H07G-R 10.0 6.0 7.4 96.0 123.0 8
549__ H07G-R 16.0 6.8 8.5 154.0 184.0 6

We can also have your company name printed on these cables.
Cables with print
Color Code
  • 00 = green
  • 01 = black
  • 02 = blue
  • 03 = brown
  • 04 = grey
  • 05 = orange
  • 06 = pink
  • 07 = turquoise
  • 08 = white
  • 09 = violet
  • 10 = yellow
  • 11 = green-yellow
Technical Data European
  • Heat-resistant (+120°C/+248°F) rubber-insulated cable to DIN VDE 0282 part 7 and HD 22.7 S2
  • Max. permissible Operating Temperature
    at conductor +110°C/+230°F
  • Lowest Ambient Temperatures
    Flexing
    Up to -25°C/-13°F
    Fixed Installation
    Up to -40°C /-40°F
  • Nominal Voltage
    H05G U0/U 300/500 V
    H07G U0/U 450/750 V
  • Test Voltage
    H05G 2000 V
    H07G 2500 V
  • Minimum Bending Radius
    Approx. 7x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper conductor to DIN VDE 0295 and IEC 60228, BS 6360 and HD 383
    single wire, solid: class 1
    multi stranded wires: class 2
    fine wires: class 5
  • Rubber conductor insulation compound type EI3 (EVA) to DIN VDE 0282 part 7
    (= DIN VDE 0207 part 20)
  • Separating layer over bare conductor (for tinned conductor is optional)
  • Conductor identification to DIN VDE 0293
  • Standard color: Black
Application

For inside wiring of switch boards and distributors as well as for operating parts such as in or on lights, for the connection of electric heaters with a nominal voltage up to 1000 V alternating voltage or up to 750 V under direct voltage against ground.
The cables are allowed for laying in tubes, on and under plaster.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties
  • Single conductor colors green and yellow can only be applied where the safety regulations allow it
  • The identification for the lighting chain cable is green permitted
Note
  • Please complete the above part number for the color required using the color code
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
