PVC
Single Conductors, +105°C/+221°F, Heat-Resistant
Sealcon, Inc, European & Domestic cable

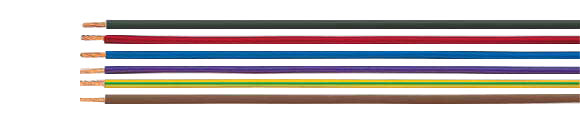

LiYW +105°C/+221°F
Cross-sec.
mm2
Conductor
Diameter
mm
Copper Weight kg/km
Weight
ca. kg/km
European Part-No.
black
green-yellow
blue
brown
red
white
gray
violet
dark-blue
0.14
1.3
1.4
3.2
29500
29501
29502
29503
29504
29505
29506
29507
29508
0.25
1.8
2.4
4.3
29509
29510
29511
29512
29513
29514
29515
29516
29517
0.5
2.6
4.8
7.2
29518
29519
29520
29521
29522
29523
29524
29525
29526
H05 V2-K +90°C/+194°F
Cross-sec.
mm2
Conductor
Diameter
mm
Copper Weight kg/km
Weight
Ca. kg/km
European Part-No.
AWG No.
black
green-yellow
blue
brown
red
white
gray
violet
dark-blue
0.5
2.1-2.5
4.8
8.7
20
29942
29943
29944
29945
29946
29947
29948
29949
29950
0.75
2.2-2.7
7.2
11.9
18
29951
29952
29953
29954
29955
29956
29957
29958
29959
1.0
2.4-2.8
9.6
14.0
17
29960
29961
29962
29963
29964
29965
29966
29967
29968
Technical
Data
European
Special PVC single conductor with
increased heat-resistance LiYW
up to +105°C/+221°F adapted to DIN
VDE 0281 H05 V2-K to +90°C/+194°F
according to DIN VDE 0281 part
7 and HD 21.7 S2
Temperature Range LiYW
Flexing
+5°C to +105°C (+41°F to +221°F)
Fixed Installation
-10°C
to +105°C (+14°F to +221°F)
H05 V2-K
Flexing
+5°C to + 90°C (+41°F to +194°F)
Fixed Installation
-10°C
to +105°C (+14°F to +221°F)
Nominal Voltage LiYW: U0/U 300/500 V
H05 V2-K: U0/U 300/500 V
Test Voltage 2000
V
Insulation Resistance Min. 20 MOhm x km
Minimum Bending Radius Approx. 10-15x
conductor Ø
Radiation Resistance Up to 80x106 cJ/kg (up
to 80 Mrad)
Approvals
Cable
Construction
Plain copper conductors to DIN VDE
0295 cl. 5, IEC 60228 cl. 5, BS 6360
cl. 5 and HD 383 (0.5 mm² and
above)
for 0,14 mm² = 18x0.1 mm
0.25 mm² = 14x0.15 mm
Special heat-resistant conductor insulation
LiYW up to +105°C/+221°F adapted to DIN
VDE 0207
H05 V2-K up to +90°C/+194°F, conductor insulation
heat-resistant TI3 to DIN VDE 0281
part 7
Conductors color coded or on request
numbered according to DIN VDE 0293
Application
Thermal insulated
wires are ideal for use in power
current installation, switch cabinets,
motors and transformers which are
subject to direct contact with
high temperatures (e.g. varnishing
machines and drying towers etc.).
These are also suitable for inside
wiring of electrical equipments
such as lighting and heating apparatus. =
The product
is conformed
with the
EC Low-Voltage
Directive
2006/95/EG.
Properties
Heat-resistant special PVC compound
of selected stabilizer and plasticine
All requirements and test methods
conform DIN VDE 0281 part 7, deviates
however the maximal permissible operating
temperature up to +105°C/+221°F for LiYW
Not to be used in contact with objects
higher than +85°C/185°F
PVC self-extinguishing and flame
retardant according to VDE 0482332-1-2, DIN EN 60332-1-2 / IEC 60332-1
(equivalent DIN VDE 0472 part 804 test
method B)
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
AWG sizes are approximate equivalent
values. The actual cross-section is in
mm².
