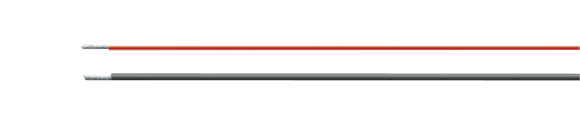

European Heat-Resistant Cable: HELUFLON®-FEP-6Y

Single Conductor, Fluorinated Polymeric Materials, -100°C/-148°F to +205°C/+401°F

Hi-Tech Controls, Inc, European wires and cables

HELUFLONŽ-FEP-6Y single conductor, fluorinated polymeric materials, -100°C to +205°C, RoHS Compliant, RoHS Approved, Hi-Tech Controls, European  , Heat Resistant / Compensating Cables
Materials
Cu Wire, Tinned
Copper Wire, Tinned
Cu Wire, Bare
Copper Wire, Bare
Cu Wire, SIlvered
Copper Wire, SIlvered
European Part-No. Description & No. Conductors x cross-sec. mm2, Color Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
2551_  HELUFLON-FEP-6Y 1x0.14, tinned 1.0 1.35 2.6 26
2552_ HELUFLON-FEP-6Y 1x0.25, tinned 1.16 2.4 4.1 24
2553_ HELUFLON-FEP-6Y 1x0.5, tinned 1.42 4.8 8.0 20
2554_ HELUFLON-FEP-6Y 1x0.75, tinned 1.62 7.2 9.7 18
2555_ HELUFLON-FEP-6Y 1x1, tinned 1.9 9.6 12.7 17
2556_ HELUFLON-FEP-6Y 1x1.5, tinned 2.2 14.4 17.9 16
2557_ HELUFLON-FEP-6Y 1x2.5, tinned 2.65 24.0 26.4 14
2558_ HELUFLON-FEP-6Y 1x4, tinned 3.2 38.0 43.1 12
2559_ HELUFLON-FEP-6Y 1x6, tinned 4.4 58.0 65.9 10
2560_ HELUFLON-FEP-6Y 1x10, tinned 5.3 96.0 115.0 8
2561_ HELUFLON-FEP-6Y 1x16, tinned 8.0 154.0 175.0 6
2490_  HELUFLON-FEP-6Y 1x0.14, bare 1.0 1.35 2.6 26
2491_ HELUFLON-FEP-6Y 1x0.25, bare 1.16 2.4 4.1 24
2492_ HELUFLON-FEP-6Y 1x0.5, bare 1.42 4.8 8.0 20
2493_ HELUFLON-FEP-6Y 1x0.75, bare 1.62 7.2 9.7 18
2494_ HELUFLON-FEP-6Y 1x1, bare 1.9 9.6 12.7 17
2495_ HELUFLON-FEP-6Y 1x1.5, bare 2.2 14.4 17.9 16
2496_ HELUFLON-FEP-6Y 1x2.5, bare 2.65 24.0 26.4 14
2497_ HELUFLON-FEP-6Y 1x4, bare 3.2 38.0 43.1 12
2498_ HELUFLON-FEP-6Y 1x6, bare 4.4 58.0 65.9 10
2499_ HELUFLON-FEP-6Y 1x10, bare 5.3 96.0 115.0 8
2037_ HELUFLON-FEP-6Y 1x16, bare 8.0 154.0 175.0 6
2026_  HELUFLON-FEP-6Y 1x0.14, silvered 1.0 1.35 2.6 26
2027_ HELUFLON-FEP-6Y 1x0.25, silvered 1.16 2.4 4.1 24
2028_ HELUFLON-FEP-6Y 1x0.0.5, silvered 1.42 4.8 8.0 20
2029_ HELUFLON-FEP-6Y 1x0.75, silvered 1.62 7.2 9.7 18
2030_ HELUFLON-FEP-6Y 1x1, silvered 1.9 9.6 12.7 17
2031_ HELUFLON-FEP-6Y 1x1.5, silvered 2.2 14.4 17.9 16
2032_ HELUFLON-FEP-6Y 1x2.5, silvered 2.65 24.0 26.4 14
2033_ HELUFLON-FEP-6Y 1x4, silvered 3.2 38.0 43.1 12
2034_ HELUFLON-FEP-6Y 1x6, silvered 4.4 58.0 65.9 10
2035_ HELUFLON-FEP-6Y 1x10, silvered 5.3 96.0 115.0 8
2036_ HELUFLON-FEP-6Y 1x16, silvered 8.0 154.0 175.0 6
Technical Data European
  • Fluorinated polymeric insulation FEP (Fluorethylenepropylene)
  • Temperature Range
    -100°C to +205°C (-148°F to +401°F)
    (up to +230°C/+446°F for a short time)
  • Nominal Voltage 600 V
  • Test Voltage 2500 V
  • Insulation Resistance
    min. 2 GOhm x km
  • Minimum Bending Radius
    Flexing 10x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 1x106 cJ/kg (up to 1 Mrad)
  • Conductor Temperature Range
    Plain Cu +130°C/+266°F
    Tinned Cu +180°C/+356°F
    Silver Pl. Cu +200°C/+392°F
Approvals
RoHSCE
Cable Construction
  • Stranded Cu wire, bare, tinned, silver
  • Make-up fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation FEP-HELUFLON®
Application
Teflon cables are predominantly used for installing in control cabinets subjected to high thermal effects as well as in brickworks, heaters, kitchen fitments and measuring appliances as well as in the chemical industry. These cables are non-flammable and resistant to acids, alkalis, solvents, oil and petrol.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Higher insulation resistance
  • Low dielectric loss
  • Not flammable
  • Min. 20 kV dielectric strength
  • Resistant to micro-cultures
  • Do not permit any fungus-formation
  • Absolute ozone resistance
  • Absolute weather resistance
  • Water absorption <0.01%
  • Minimal water vapor permeability (approx. 0.18 mgr/cm² in 24 hours)
  • Self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Please complete the above part-no. for the color required using the following table:
    1 = black
    2 = red
    3 = blue
    4 = brown
    5 = white
    6 = transparent
    7 = twin tone
    8 = other colors
Cable Accessories
  • Coming Soon!
