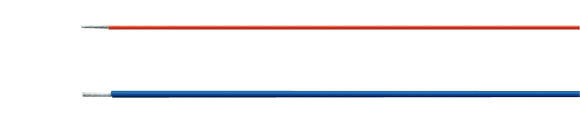

European Heat-Resistant Cable: HELUFLON®-PTFE-5Y

Single Conductor, Fluorinated Polymeric Materials, 600 V/1000 V

Hi-Tech Controls, Inc, European & Domestic cable

HELUFLONŽ-PTFE-5Y single conductor, fluorinated polymeric materials, 600V/1000V, RoHS Compliant, RoHS Approved, Hi-Tech Controls, European  , Heat Resistant / Compensating Cables
European Part-No. Description & No. Conductors x cross-sec. mm2 No. cond. Outer
Diameter
mm

Weight
ca. kg/km
AWG
2511_ HELUFLON-PTFE-5Y TYPE E 0.03 7 0.7 0.4 32
2512_ HELUFLON-PTFE-5Y TYPE E 0.06 7 0.8 0.6 30
2513_ HELUFLON-PTFE-5Y TYPE E 0.09 7 0.9 0.9 28
2514_ HELUFLON-PTFE-5Y TYPE E 0.14 7 1.0 1.5 26
2515_ HELUFLON-PTFE-5Y TYPE E 0.14 19 1.0 1.6 26
2516_ HELUFLON-PTFE-5Y TYPE E 0.21 7 1.1 2.3 24
2517_ HELUFLON-PTFE-5Y TYPE E 0.24 19 1.1 2.5 24
2518_ HELUFLON-PTFE-5Y TYPE E 0.35 7 1.3 3.7 22
2519_ HELUFLON-PTFE-5Y TYPE E 0.38 19 1.3 4.0 21
2520_ HELUFLON-PTFE-5Y TYPE E 0.57 7 1.5 6.0 20
2521_ HELUFLON-PTFE-5Y TYPE E 0.57 19 1.5 6.4 20
2522_ HELUFLON-PTFE-5Y TYPE E 0.9 7 1.7 9.4 18
2523_ HELUFLON-PTFE-5Y TYPE E 0.95 19 1.7 10.2 18
2524_ HELUFLON-PTFE-5Y TYPE E 1.23 19 2.0 12.9 16
2525_ HELUFLON-PTFE-5Y TYPE E 1.94 19 2.4 20.3 14
2531_ HELUFLON-PTFE-5Y TYPE EE 0.03 7 1.0 0.4 32
2532_ HELUFLON-PTFE-5Y TYPE EE 0.06 7 1.1 0.6 30
2533_ HELUFLON-PTFE-5Y TYPE EE 0.09 7 1.1 1.0 28
2534_ HELUFLON-PTFE-5Y TYPE EE 0.14 7 1.2 1.6 26
2535_ HELUFLON-PTFE-5Y TYPE EE 0.14 19 1.2 1.7 26
2536_ HELUFLON-PTFE-5Y TYPE EE 0.21 7 1.4 2.4 24
2537_ HELUFLON-PTFE-5Y TYPE EE 0.24 19 1.4 2.6 24
2538_ HELUFLON-PTFE-5Y TYPE EE 0.35 7 1.5 3.8 22
2539_ HELUFLON-PTFE-5Y TYPE EE 0.38 19 1.5 4.2 21
2540_ HELUFLON-PTFE-5Y TYPE EE 0.57 7 1.7 6.3 20
2541_ HELUFLON-PTFE-5Y TYPE EE 0.57 19 1.7 6.9 20
2542_ HELUFLON-PTFE-5Y TYPE EE 0.9 7 2.0 10.6 18
2543_ HELUFLON-PTFE-5Y TYPE EE 0.95 19 2.0 13.6 18
2544_ HELUFLON-PTFE-5Y TYPE EE 1.23 19 2.3 21.4 16
2545_ HELUFLON-PTFE-5Y TYPE EE 1.94 19 2.7 34.0 14
Technical Data European
  • Fluorinated polymeric insulation PTFE (Polytetrafluorethylene)
  • Design to DIN VDE 0881 and IEC 60673
  • Temperature Range
    -190°C to +260°C (-310°F to +500°F)
    (up to +300°C/572°F for short time)
  • Nominal Voltage
    Type E = 600 V
    Type EE = 1000 V
  • Test Voltage
    Type E = 3.4 kV
    Type EE = 5 kV
  • Insulation Resistance
    Min. 1 GOhm x km
  • Minimum Bending Radius
    10 x cable Ø
  • Radiation Resistance
    Up to 1x106 cJ/kg (up to 1 Mrad)
  • Conductor Temperature Range
    Plain Cu +130°C/+266°F
    Tinned Cu +180°C/+356°F
    Silver Pl. Cu +200°C/+392°F
    Nickel Pl. Cu +300°C/+572°F
Approvals
RoHSCE VDE
Cable Construction
  • Stranded Cu wire, bare, tinned, silver or nickel plated
  • Conductor insulation PTFE-HELUFLON® to DIN VDE 207 part 6
  • Conductors color coded
  • Outer jacket PTFE-HELUFLON®
  • PTFE as per MIL-W 16878
Application
Teflon cables are predominantly used for installing in control cabinets subjected to high thermal effects as well as in brickworks, heaters, kitchen fitments and measuring appliances as well as in the chemical industry. These cables are non-flammable and resistant to acids, alkalis, solvents, oil and petrol.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Higher insulation resistance
  • Low dielectric loss
  • Not flammable
  • Min. 20 kV dielectric voltage
  • Resistant to micro-cultures
  • Do not permit any fungus-formation
  • Absolute ozone resistance
  • Absolute weather resistance
  • Water absorption <0.01%
  • Minimal water vapor permeability (approx. 0.18 mgr/cm² in 24 hours)
  • Self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • Please complete the above part-no. for the color required using the following table:
    1 = black
    2 = red
    3 = blue
    4 = brown
    5 = white
    6 = transparent
    7 = twin tone
    8 = other colors
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
