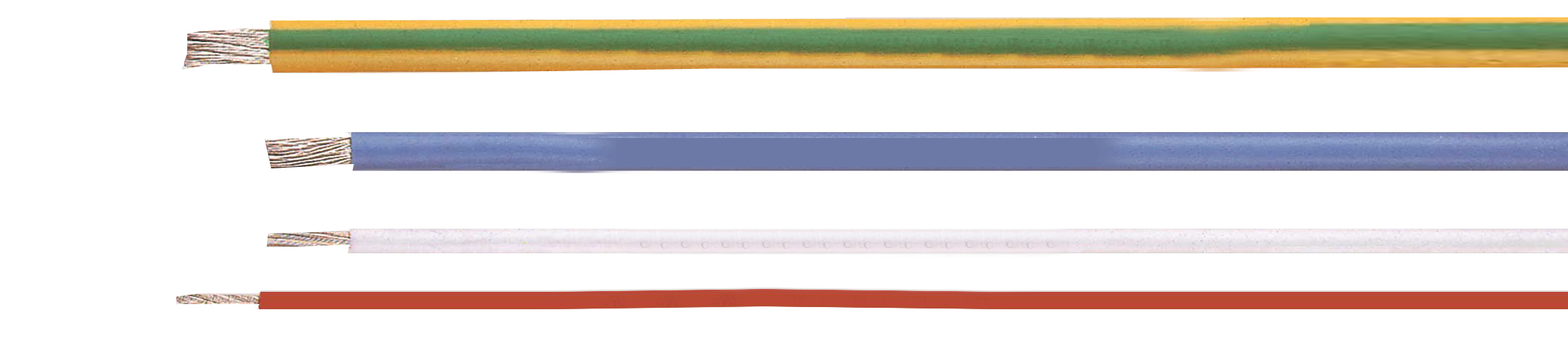

European Heat-Resistant Cable: HELUTHERM® 145

Flexible, Electron Beam Cross-Linked, Halogen-Free

Hi-Tech Controls, Inc, European & Domestic cable

HELUTHERMŽ 145 flexible, electron beam cross-linked, halogen-free, RoHS Compliant, RoHS Approved, Hi-Tech Controls, European  , Heat Resistant / Compensating Cables
Cross-sec. mm2 Outer
Dia. min.
mm
Outer
Dia. max.
mm
Copper Weight kg/km Weight ca. kg/km European Part-No.
black green-yellow brown red white gray violet
RAL 9005 - RAL 8003 RAL 3000 RAL 1013 RAL 7000 RAL 4005
0.25 1.4 1.8 2.4 4.0 50999 50998 51071 51072 51073 51074 51075
0.33 1.5 1.9 3.2 5.0 51167 51166 51169 51170 51171 51172 51173
0.5 1.7 2.1 4.8 7.0 51281 51280 51283 51284 51285 51286 51287
0.75 2.0 2.4 7.2 11.0 51295 51294 51297 51298 51299 51300 51301
1.0 2.3 2.7 9.6 14.0 51309 51308 51311 51312 51313 51314 51315
1.5 2.7 3.1 14.4 20.0 51323 51322 51325 51326 51327 51328 51329
2.5 3.3 3.7 24.0 30.0 51337 51336 51339 51340 51341 51342 51343
4.0 4.1 4.5 38.0 47.0 51351 51350 51353 51354 51355 51356 51357
6.0 4.75 5.25 58.0 72.0 51365 51364 51367 51368 51369 51370 51371
10.0 6.0 6.6 96.0 120.0 51379 51378 51381 51382 51383 51384 51385
16.0 7.25 7.75 154.0 182.0 51420 51419 51422 51423 51424 51425 51426
25.0 9.35 9.85 240.0 272.0 51434 51433 51436 51437 51438 51439 51440
35.0 10.3 11.1 336.0 371.0 51448 51447 51450 51451 51452 51453 51454
50.0 12.6 13.4 480.0 530.0 51462 51461 51464 51465 51466 51467 51468
70.0 14.7 15.4 672.0 730.0 51476 51475 51478 51479 51480 51481 51482
95.0 16.9 17.7 912.0 964.0 51490 51489 51492 51493 51494 51495 51496
120.0 18.2 19.2 1152.0 1235.0 51504 51503 51506 51507 51508 51509 51510
150.0 20.8 22.0 1440.0 1523.0 51518 51517 51520 51521 51522 51523 51524
185.0 23.0 24.2 1776.0 1850.0 51532 51531 51534 51535 51536 51537 51538
240.0 26.1 27.3 2304.0 2432.0 51546 51545 51548 51549 51550 51551 51552
Cross-sec. mm2 Outer
Dia. Min.
mm
Outer
Dia. Max.
mm

Copper Weight
kg/km

Weight ca. kg/km European Part-No.
dark-blue yellow beige light-blue orange green 2-colored
RAL 5010 RAL 1021 RAL 1001 RAL 5015 RAL 2003 RAL 6018 -
0.25 1.4 1.8 2.4 4.0 51079 51076 51164 51070 51077 51078 51165
0.33 1.5 1.9 3.2 5.0 51177 51174 51178 51168 51175 51176 51179
0.5 1.7 2.1 4.8 7.0 51291 51288 51292 51282 51289 51290 51293
0.75 2.0 2.4 7.2 11.0 51305 51302 51306 51296 51303 51304 51307
1.0 2.3 2.7 9.6 14.0 51319 51316 51320 51310 51317 51318 51321
1.5 2.7 3.1 14.4 20.0 51333 51330 51334 51324 51331 51332 51335
2.5 3.3 3.7 24.0 30.0 51347 51344 51348 51338 51345 51346 51349
4.0 4.1 4.5 38.0 47.0 51361 51358 51362 51352 51359 51360 51363
6.0 4.75 5.25 58.0 72.0 51375 51372 51376 51366 51373 51374 51377
10.0 6.0 6.6 96.0 120.0 51389 51386 51390 51380 51387 51388 51391
16.0 7.25 7.75 154.0 182.0 51430 51427 51431 51421 51428 51429 51432
25.0 9.35 9.85 240.0 272.0 51444 51441 51445 51435 51442 51443 51446
35.0 10.3 11.1 336.0 371.0 51458 51455 51459 51449 51456 51457 51460
50.0 12.6 13.4 480.0 530.0 51472 51469 51473 51463 51470 51471 51474
70.0 14.7 15.4 672.0 730.0 51486 51483 51487 51477 51484 51485 51488
95.0 16.9 17.7 912.0 964.0 51500 51497 51501 51491 51498 51499 51502
120.0 18.2 19.2 1152.0 1235.0 51514 51511 51515 51505 51512 51513 51516
150.0 20.8 22.0 1440.0 1523.0 51528 51525 51529 51519 51526 51527 51530
185.0 23.0 24.2 1776.0 1850.0 51542 51539 51543 51533 51540 51541 51544
240.0 26.1 27.3 2304.0 2432.0 51556 51553 51557 51547 51554 51555 51558
Technical Data European
  • Halogen-free single conductors with increased heat resistance
  • Temperature Range
    Flexing
    -35°C to +120°C (-31°F to +248°F)
    Fixed Installation
    -45°C to +145°C (-49°F to +293°F)
  • Nominal Voltage
    U0/U 300/500 V up to 1 mm2
    U0/U 450/750 V from 1.5 mm2
    For fixed and protected installation
    U0/U 600/1000 V from 1.5 mm2
  • Test Voltage 3500 V
  • Minimum Bending Radius
    Flexing 12.5 x cable Ø
    Fixed Installation 4 x cable Ø
  • Caloric Load Values
    See Technical Information
  • Power Ratings Table
    See Technical Information
Approvals
RoHSCE
Cable Construction
  • Tinned copper wires, according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of polyolefin-copolymer, electron beam cross-linked
  • For conductor colors see table

Tests

  • Flame test to VDE 0482 part 266-2, BS 4066 part 3 / DIN EN 50266-2 / IEC 60332-3 (equivalent DIN VDE 0472 part 804 test method C)
  • Corrosiveness of combustion gases according to VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
  • Halogen-free according to VDE 0482 part 267 / DIN EN 50267-2-1 / IEC 60754-1 (equivalent DIN VDE 0472 part 815)
  • Smoke density to VDE 0482 part 268-1 and 2, test method C, IEC 61034-1 / 61034-2, HD 606 and BS 7622 part 1 and 2 (equivalent DIN VDE 0472 part 815)
Application
These temperature resistant single-conductor cables are used for the internal wiring of lighting fixtures, heaters, electrical machinery, switching systems and distributors in equipment and plant and machinery, suitable for installation on, in and beneath plaster, in closed installation ducts, as well as for traffic systems and outdoor applications. These cables are not approved for direct routing on racks, gutters or tanks. For a protected installation, these cables may be used at a nominal voltage of up to 1000 V alternating current or a direct current up to 750 V when grounded. The maximum operating d.c. voltage used in rail vehicles shall not exceed 900 V when grounded. These halogen-free single conductor cables are characterized by their amazing long-time resistance to temperature and feature among the leading halogen-free, flame resistant products in the world. These single conductor cables significantly contribute to safety and the environment.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Halogen-free, no liberation of corrosive or toxic vapors, in that way this helps saving valuable time when trying to evacuate a building in a disciplined manner and prevent unnecessary loss of life
  • Lower propagation of fire
  • Low development of smoke and fumes
  • Good abrasion and notch resistance
  • Good resistance to oils and weathering
  • Resistant to UV radiation and ozone
  • Resistant to soldering temperatures
  • Thermal class B
  • These single conductor cables are resistant to melting, even when in contact with a soldering iron at temperatures between 300°C/572°F and 380°C/716°F, because of the electron beam cross-linking of the insulation material
  • Due to the high temperature profile the cross-section of conductor can under certain circumstances be reduced, hereby enabling a saving in space requirement and weight
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
