Special silicone-insulated
cable with higher heat-resistance
adapted to DIN VDE 0250 part
1 and part 816
Temperature Range -60°C
to
+180°C (-72°F
to
+356°F)
(Up to +220°C/+428°F for short time)
Temperature Limit at
the Conductor In
operation
+180°C
Nominal Voltage U0/U
300/500 V
Test Voltage 2000
V
Breakdown Voltage min.
5000 V
Insulation Resistance Min.
200
MOhm
x km
Power Rating At ambient temperatures
up to +145°C/+293°F according to
DIN VDE 0100
150°C/302°F - load value 100%
155°C/311°F - load value 91%
160°C/320°F - load value 82%
165°C/329°F - load value 71%
170°C/338°F - load value 58%
175°C-347°F - load value 41%
Radiation Resistance Up
to
20x106 cJ/kg
(up
to
20
Mrad)
Approvals

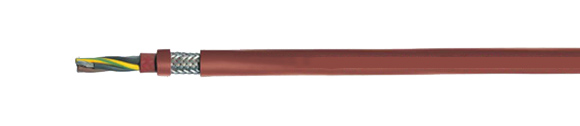

Cable
Construction
Tinned copper conductor according to
DIN VDE 0295 cl. 5, BS 6360 cl. 5 and
IEC 60228 cl. 5
Conductor insulation of silicone
Core Conductors according to DIN VDE 0293-308
Conductor Colors
-up to 5 conductors: one color
-up to 6 or more conductors: black with white
numbering
-3 or more: green-yellow earth conductor
-2 conductors: No green-yellow earth conductor
Conductors stranded in layers with optimal
lay-length
Inner jacket of silicone
Braid of tinned copper wires, coverage
approx. 85%
Silicone-rubber-insulated common outer
jacket
Jacket preferably red brown color
Application
Silicone cables
were designed for use wherever
insulation is subjected to extreme
temperature changes. They are heat
resistant for permanent temperatures
up to +180°C/+356°F, and short time
for operation to +220°C/+428°F. These
cables have great environmental
resistance properties and can be
used at temperatures as low as
-60°C/-76°F. Silicone cables are
halogen-free and are especially
suitable for installation in power
stations. They have also found
their uses in steel producing industries,
aviation industry, ship building
as well as in ceramic, glass and
cement factories.
An interference-free transmission
of signals and impulse is assured
by the high density of shielding. EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. =
The product is conformed with the
EC Low-Voltage Directive 73/23/EEC
and 93/68/EEC.
Properties
Resistant to high molecular oils, fats from
vegetables and animals, alcohols, plasticizers
and clophenes, diluted acids, lye and
salt dissolution, oxidation substances,
tropical influences and weather, lake
water, oxygen and UV
Halogen-free according
to DIN VDE 0482
part 267 / DIN EN
50267-2-2 / IEC
60754-2 (equivalent
DIN VDE 0472
part 813)
Burning behavior no propagation
of fire
testing according to DIN VDE 0482332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent
DIN VDE 0472 part 804 test method B)
For laying as a fixed installation
only in open or ventilated pipe systems
as well as in ducts. Otherwise the mechanical
properties of the silicon are reduced
by the enclosed air at temperatures exceeding
+90°C/+194°F.
Note
G = with green-yellow grounding
x = without green-yellow grounding (OB)
AWG sizes are approximate equivalent
values. The actual cross-section is in
mm².
