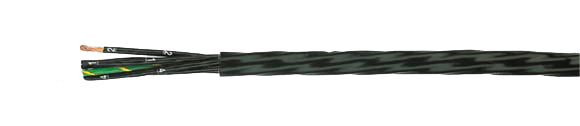

Heat-Resistant Cable: HELUFLON®-FEP-6Y

Multi Conductor, Fluorinated Polymeric Materials, -100°C/-148°F to +205°C/+401°F

Hi-Tech Controls, Inc, European & Domestic cable

HELUFLONŽ-FEP-6Y multi conductor, fluorinated polymeric materials, -100°C to +205°C, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Heat Resistant / Compensating Cables
Materials
Cu Wire, Tinned
Copper Wire, Tinned
Cu Wire, Bare
Copper Wire, Bare
Cu Wire, SIlvered
Copper Wire, SIlvered

Part-No. Description & No. Conductors x cross-sec. mm2, Color Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
24547  HELUFLON-FEP-6Y 2X0.25, tinned 2.7 5.0 17.0 24
24548 HELUFLON-FEP-6Y 3G0.25, tinned 2.7 7.5 22.0 24
24549 HELUFLON-FEP-6Y 4G0.25, tinned 3.2 10.0 27.0 24
24550 HELUFLON-FEP-6Y 5G0.25, tinned 3.5 12.5 34.0 24
24551 HELUFLON-FEP-6Y 7G0.25, tinned 3.9 17.5 46.0 24
24552 HELUFLON-FEP-6Y 2X0.5, tinned 3.3 9.8 21.0 20
24553 HELUFLON-FEP-6Y 3G0.5, tinned 3.5 14.7 32.0 20
24554 HELUFLON-FEP-6Y 4G0.5, tinned 3.9 19.6 44.0 20
24555 HELUFLON-FEP-6Y 5G0.5, tinned 4.3 24.5 55.0 20
24556 HELUFLON-FEP-6Y 7G0.5, tinned 4.8 34.3 70.0 20
24557 HELUFLON-FEP-6Y 2X0.75, tinned 3.6 14.4 31.0 18
24558 HELUFLON-FEP-6Y 3G0.75, tinned 3.9 21.6 46.0 18
24559 HELUFLON-FEP-6Y 4G0.75, tinned 4.3 29.0 58.0 18
24560 HELUFLON-FEP-6Y 5G0.75, tinned 4.7 36.0 69.0 18
24561 HELUFLON-FEP-6Y 7G0.75, tinned 4.8 50.0 92.0 18
24562 HELUFLON-FEP-6Y 2X1, tinned 4.1 19.0 41.0 17
24563 HELUFLON-FEP-6Y 3G1, tinned 4.4 29.0 55.0 17
24564 HELUFLON-FEP-6Y 4G1, tinned 4.9 38.0 71.0 17
24565 HELUFLON-FEP-6Y 5G1, tinned 5.5 48.0 88.0 17
24566 HELUFLON-FEP-6Y 7G1, tinned 6.0 67.0 113.0 17
24273 HELUFON-FEP-6Y 12G1, tinned 8.0 115.2 220.0 17
24274 HELUFON-FEP-6Y 18G1, tinned 9.5 173.0 321.0 17
24275 HELUFON-FEP-6Y 25G1, tinned 11.2 240.0 458.0 17
24501 HELUFLON-FEP-6Y 2X1.5, tinned 4.9 29.0 45.0 16
24502 HELUFLON-FEP-6Y 3G1.5, tinned 5.3 43.0 70.0 16
24503 HELUFLON-FEP-6Y 4G1.5, tinned 5.8 58.0 98.0 16
24504 HELUFLON-FEP-6Y 5G1.5, tinned 6.5 72.0 117.0 16
24505 HELUFLON-FEP-6Y 7G1.5, tinned 7.2 101.0 184.0 16
24276 HELUFLON-FEP-6Y 12G1.5, tinned 10.2 173.0 326.0 16
24277 HELUFLON-FEP-6Y 18G1.5, tinned 12.3 260.0 504.0 16
24278 HELUFLON-FEP-6Y 25G1.5, tinned 14.0 360.0 682.0 16
24279 HELUFLON-FEP-6Y 3G2.5, tinned 6.4 72.0 121.0 14
24280 HELUFLON-FEP-6Y 4G2.5, tinned 7.0 96.0 182.0 14
24281 HELUFLON-FEP-6Y 5G2.5, tinned 7.9 120.0 240.0 14
24282 HELUFLON-FEP-6Y 7G2.5, tinned 8.7 168.0 316.0 14
24283 HELUFLON-FEP-6Y 3G4, tinned 7.5 115.0 212.0 12
24284 HELUFLON-FEP-6Y 4G4, tinned 8.3 154.0 304.0 12
24285 HELUFLON-FEP-6Y 5G4, tinned 9.2 192.0 386.0 12
25914  HELUFLON-FEP-6Y 2X0.25, bare 2.7 5.0 17.0 24
25915 HELUFLON-FEP-6Y 3G0.25, bare 2.9 7.5 22.0 24
25916 HELUFLON-FEP-6Y 4G0.25, bare 3.2 10.0 27.0 24
25917 HELUFLON-FEP-6Y 5G0.25, bare 3.5 12.5 34.0 24
25918 HELUFLON-FEP-6Y 7G0.25, bare 3.9 17.5 46.0 24
25919 HELUFLON-FEP-6Y 2X0.5, bare 3.3 9.8 21.0 20
25920 HELUFLON-FEP-6Y 3G0.5, bare 3.5 14.7 32.0 20
25921 HELUFLON-FEP-6Y 4G0.5, bare 3.9 19.6 44.0 20
25922 HELUFLON-FEP-6Y 5G0.5, bare 4.3 24.5 55.0 20
25923 HELUFLON-FEP-6Y 7G0.5, bare 4.8 34.3

70.0

20
25924 HELUFLON-FEP-6Y 2X0.75, bare 3.6 14.4 31.0 18
25925 HELUFLON-FEP-6Y 3G0.75, bare 3.9 21.6 46.0 18
25926 HELUFLON-FEP-6Y 4G0.75, bare 4.3 29.0 58.0 18
25927 HELUFLON-FEP-6Y 5G0.75, bare 4.7 36.0 69.0 18
25928 HELUFLON-FEP-6Y 7G0.75, bare 5.4 50.0 92.0 18

25929

HELUFLON-FEP-6Y 2X1, bare 4.1 19.0 41.0 17
25930 HELUFLON-FEP-6Y 3G1, bare 4.4 29.0 55.0 17
25931 HELUFLON-FEP-6Y 4G1, bare 5.7 38.0 71.0 17
25932 HELUFLON-FEP-6Y 5G1, bare 5.5 48.0 88.0 17
25933 HELUFLON-FEP-6Y 7G1, bare 6.0 67.0 113.0 17
25934 HELUFLON-FEP-6Y 12G1, bare 8.0 115.2 220.0 17
25935 HELUFLON-FEP-6Y 18G1, bare 9.5 173.0 321.0 17
25936 HELUFLON-FEP-6Y 25G1, bare 11.2 240.0 458.0 17
25937 HELUFLON-FEP-6Y 2X1.5, bare 4.9 29.0 45.0 16
25938 HELUFLON-FEP-6Y 3G1.5, bare 5.3 43.0 70.0 16
25939 HELUFLON-FEP-6Y 4G1.5, bare 5.8 58.0 98.0 16
25940 HELUFLON-FEP-6Y 5G1.5, bare 6.5 72.0 117.0 16
25941 HELUFLON-FEP-6Y 7G1.5, bare 7.2 101.0 184.0 16
25942 HELUFLON-FEP-6Y 12G1.5, bare 10.2 173.0 326.0 16
25943 HELUFLON-FEP-6Y 18G1.5, bare 12.3 260.0 504.0 16
25944 HELUFLON-FEP-6Y 25G1.5, bare 14.0 360.0 682.0 16
25945 HELUFLON-FEP-6Y 3G2.5, bare 6.4 72.0 121.0 14
25946 HELUFLON-FEP-6Y 4G2.5, bare 7.0 96.0 182.0 14
25947 HELUFLON-FEP-6Y 5G2.5, bare 7.9 120.0 240.0 14
25948 HELUFLON-FEP-6Y 7G2.5, bare 8.7 168.0 316.0 14
25949 HELUFLON-FEP-6Y 3G4, bare 7.5 115.0 212.0 12
25950 HELUFLON-FEP-6Y 4G4, bare 8.3 154.0 304.0 12
25951 HELUFLON-FEP-6Y 5G4, bare 9.2 192.0 386.0 12
25952  HELUFLON-FEP-6Y 2X0.25, silvered 2.7 5.0 17.0 24
25953 HELUFLON-FEP-6Y 3G0.25, silvered 2.9 7.5 22.0 24
25954 HELUFLON-FEP-6Y 4G0.25, silvered 3.2 10.0 27.0 24
25955 HELUFLON-FEP-6Y 5G0.25, silvered 3.5 12.5 34.0 24
25956 HELUFLON-FEP-6Y 7G0.25, silvered 3.9 17.5 46.0 24
25957 HELUFLON-FEP-6Y 2X0.5, silvered 3.3 9.8 21.0 20
25958 HELUFLON-FEP-6Y 3G0.5, silvered 3.5 14.7 32.0 20
25959 HELUFLON-FEP-6Y 4G0.5, silvered 3.9 19.6 44.0 20
25960 HELUFLON-FEP-6Y 5G0.5, silvered 4.3 24.5 55.0 20
25961 HELUFLON-FEP-6Y 7G0.5, silvered 4.8 34.3 70.0 20
25962 HELUFLON-FEP-6Y 2X0.75, silvered 3.6 14.4 31.0 18
25963 HELUFLON-FEP-6Y 3G0.75, silvered 3.9 21.6 46.0 18
25964 HELUFLON-FEP-6Y 4G0.75, silvered 4.3 29.0 58.0 18
25965 HELUFLON-FEP-6Y 5G0.75, silvered 4.7 36.0 69.0 18
25966 HELUFLON-FEP-6Y 7G0.75, silvered 5.4 50.0 92.0 18
25967 HELUFLON-FEP-6Y 2X1, silvered 4.1 19.0 41.0 17
25968 HELUFLON-FEP-6Y 3G1, silvered 4.4 29.0 55.0 17
25969 HELUFLON-FEP-6Y 4G1, silvered 4.9 38.0 71.0 17
25970 HELUFLON-FEP-6Y 5G1, silvered 5.5 48.0 88.0 17
25971 HELUFLON-FEP-6Y 7G1, silvered 6.0 67.0 113.0 17
25972 HELUFLON-FEP-6Y 12G1, silvered 8.0 115.2 220.0 17
25973 HELUFLON-FEP-6Y 18G1, silvered 9.5 173.0 321.0 17
25974 HELUFLON-FEP-6Y 25G1, silvered 11.2 240.0 458.0 17
25975 HELUFLON-FEP-6Y 2X1.5, silvered 4.9 29.0 45.0 16
25976 HELUFLON-FEP-6Y 3G1.5, silvered 5.3 43.0 70.0 16
25977 HELUFLON-FEP-6Y 4G1.5, silvered 5.8 58.0 98.0 16
25978 HELUFLON-FEP-6Y 5G1.5, silvered 6.5 72.0 117.0 16
25979 HELUFLON-FEP-6Y 7G1.5, silvered 7.2 101.0 184.0 16
25980 HELUFLON-FEP-6Y 12G1.5, silvered 10.2 173.0 326.0 16
25981 HELUFLON-FEP-6Y 18G1.5, silvered 12.3 260.0 504.0 16
25982 HELUFLON-FEP-6Y 25G1.5, silvered 14.0 360.0 682.0 16
25983 HELUFLON-FEP-6Y 3G2.5, silvered 6.4 72.0 121.0 14
25984 HELUFLON-FEP-6Y 4G2.5, silvered 7.0 96.0 182.0 14
25985 HELUFLON-FEP-6Y 5G2.5, silvered 7.9 120.0 240.0 14
25986 HELUFLON-FEP-6Y 7G2.5, silvered 8.7 168.0 316.0 14
25987 HELUFLON-FEP-6Y 3G4, silvered 7.5 115.0 212.0 12
25989 HELUFLON-FEP-6Y 4G4, silvered 8.3 154.0 304.0 12
25990 HELUFLON-FEP-6Y 5G4, silvered 9.2 192.0 386.0 12
Technical Data
  • Fluorinated polymeric insulation FEP (Fluorethylenepropylene)
  • Temperature Range
    -100°C to +205°C (-148°F to +401°F)
    (up to +230°C/+446°F for a short time)
  • Nominal Voltage 600 V
  • Test Voltage 2500 V
  • Insulation Resistance
    min. 2 GOhm x km
  • Minimum Bending Radius
    Flexing 15x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 1x106 cJ/kg (up to 1 Mrad)
  • Conductor Temperature Range
    Plain Copper +130°C/+266°F
    Tinned Copper +180°C/+356°F
    Silver Pl. Copper +200°C/+392°F
Approvals
RoHSCE
Cable Construction
  • Stranded copper wire, bare, tinned, silver
  • Make-up fine wire stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation FEP-HELUFLON®
  • Green-yellow grounding
    0.25 mm² color code to DIN VDE 0293-308
    0.5 mm² and above black conductors with white imprints
  • Outer jacket FEP-HELUFLON®
  • Color: Black (RAL 9005)
Application
These cables are predominantly used for installing in control cabinets subjected to high thermal effects as well as in brickworks, heaters, kitchen fitments and measuring appliances as well as in the chemical industry. These cables are non-flammable and resistant to acids, alkalis, solvents, oil and petrol.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Higher insulation resistance
  • Low dielectric loss
  • Not flammable
  • Min. 20 kV dielectric strength
  • Resistant to micro-cultures
  • Do not permit any fungus-formation
  • Absolute ozone resistance
  • Absolute weather resistance
  • Water absorption <0.01%
  • Minimal water vapor permeability (approx. 0.18 mgr/cm² in 24 hours)
  • Self-extinguishing and flame retardant according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
