Heat-Resistant Cable:

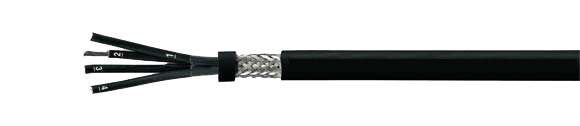

HELUTHERM® 145 MULTI-C

Flexible, Electron Beam Cross-Linked, Halogen-Free, Copper Shielded, EMI Preferred Type

Hi-Tech Controls, Inc, European & Domestic cable

HELUTHERMŽ 145 MULTI-C flexible, electron beam cross-linked, halogen-free, Cu shielded, EMI preferred type, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Heat Resistant / Compensating Cables
AWG Selection
24
24
20
20
18
18
17
17
16
16
14 14 12 12 10 10 8 8

Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
52194 HELUTHERM 145 MULTI-C 2X0.25 5.0 16.0 36.0 24
52195 HELUTHERM 145 MULTI-C 3X0.25 5.5 21.0 44.0 24
52196 HELUTHERM 145 MULTI-C 5X0.25 6.4 29.0 68.0 24
52197 HELUTHERM 145 MULTI-C 7X0.25 7.5 37.0 95.0 24
52198 HELUTHERM 145 MULTI-C 1X0.5 3.7 15.0 24.0 20
52199 HELUTHERM 145 MULTI-C 2X0.5 5.6 29.0 55.0 20
52200 HELUTHERM 145 MULTI-C 3X0.5 6.1 38.0 64.0 20
52201 HELUTHERM 145 MULTI-C 4X0.5 6.7 45.0 78.0 20
52202 HELUTHERM 145 MULTI-C 5X0.5 7.3 51.0 95.0 20
52203 HELUTHERM 145 MULTI-C 6X0.5 7.9 66.0 106.0 20
52204 HELUTHERM 145 MULTI-C 7X0.5 8.4 68.0 122.0 20
52205 HELUTHERM 145 MULTI-C 8X0.5 9.0 80.0 138.0 20
52206 HELUTHERM 145 MULTI-C 10X0.5 10.0 93.0 161.0 20
52207 HELUTHERM 145 MULTI-C 12X0.5 10.0 107.0 170.0 20
52208 HELUTHERM 145 MULTI-C 14X0.5 11.0 122.0 193.0 20
52209 HELUTHERM 145 MULTI-C 16X0.5 11.7 129.0 216.0 20
52210 HELUTHERM 145 MULTI-C 19X0.5 12.8 158.0 253.0 20
52211 HELUTHERM 145 MULTI-C 21X0.5 13.5 167.0 281.0 20
52212 HELUTHERM 145 MULTI-C 1X0.75 4.0 18.0 29.0 18
52213 HELUTHERM 145 MULTI-C 2X0.75 6.6 38.0 71.0 18
52214 HELUTHERM 145 MULTI-C 3X0.75 6.9 50.0 82.0 18
52215 HELUTHERM 145 MULTI-C 4X0.75 7.6 58.0 100.0 18
52216 HELUTHERM 145 MULTI-C 5X0.75 8.3 70.0 117.0 18
52217 HELUTHERM 145 MULTI-C 6X0.75 8.9 85.0 135.0 18
52218 HELUTHERM 145 MULTI-C 7X0.75 9.9 90.0 158.0 18
52219 HELUTHERM 145 MULTI-C 8X0.75 10.6 110.0 178.0 18
52220 HELUTHERM 145 MULTI-C 10X0.75 11.5 140.0 207.0 18
52221 HELUTHERM 145 MULTI-C 12X0.75 11.5 148.0 220.0 18
52222 HELUTHERM 145 MULTI-C 14X0.75 12.2 167.0 250.0 18
52223 HELUTHERM 145 MULTI-C 16X0.75 12.9 183.0 282.0 18
52224 HELUTHERM 145 MULTI-C 19X0.75 14.5 212.0 335.0 18
52225 HELUTHERM 145 MULTI-C 21X0.75 15.3 230.0 370.0 18
52226 HELUTHERM 145 MULTI-C 1X1 4.2 20.0 33.0 17
52227 HELUTHERM 145 MULTI-C 2X1 7.0 31.0 78.0 17
52228 HELUTHERM 145 MULTI-C 3X1 7.4 56.0 92.0 17
52229 HELUTHERM 145 MULTI-C 4X1 8.1 66.0 112.0 17
52230 HELUTHERM 145 MULTI-C 5X1 8.9 95.0 134.0 17
52231 HELUTHERM 145 MULTI-C 6X1 9.5 105.0 164.0 17
52232 HELUTHERM 145 MULTI-C 7X1 10.5 109.0 192.0 17
52233 HELUTHERM 145 MULTI-C 8X1 11.4 130.0 219.0 17
52234 HELUTHERM 145 MULTI-C 10X1 12.5 138.0 254.0 17
52235 HELUTHERM 145 MULTI-C 12X1 12.5 164.0 270.0 17
52236 HELUTHERM 145 MULTI-C 14X1 13.5 198.0 308.0 17
52237 HELUTHERM 145 MULTI-C 16X1 14.3 203.0 350.0 17
52238 HELUTHERM 145 MULTI-C 19X1 16.2 235.0 447.0 17
52239 HELUTHERM 145 MULTI-C 21X1 17.0 257.0 492.0 17
52240 HELUTHERM 145 MULTI-C 1X1.5 4.8 22.0 42.0 16
52241 HELUTHERM 145 MULTI-C 2X1.5 8.2 58.0 105.0 16
52242 HELUTHERM 145 MULTI-C 3X1.5 8.7 71.0 121.0 16
52243 HELUTHERM 145 MULTI-C 4X1.5 9.4 86.0 156.0 16
52244 HELUTHERM 145 MULTI-C 5x1.5 10.5 104.0 188.0 16
52245 HELUTHERM 145 MULTI-C 6X1.5 11.5 118.0 225.0 16
52246 HELUTHERM 145 MULTI-C 7X1.5 12.6 136.0 264.0 16
52247 HELUTHERM 145 MULTI-C 8X1.5 13.7 172.0 308.0 16
52248 HELUTHERM 145 MULTI-C 10X1.5 15.0 193.0 361.0 16
52249 HELUTHERM 145 MULTI-C 12X1.5 15.0 222.0 383.0 16
52250 HELUTHERM 145 MULTI-C 14X1.5 16.0 272.0 458.0 16
52251 HELUTHERM 145 MULTI-C 16X1.5 17.0 285.0 515.0 16
52252 HELUTHERM 145 MULTI-C 19X1.5 19.3 331.0 639.0 16
52253 HELUTHERM 145 MULTI-C 21X1.5 20.3 367.0 705.0 16
52254 HELUTHERM 145 MULTI-C 1X2.5 5.6 28.0 59.0 14
52255 HELUTHERM 145 MULTI-C 2X2.5 9.8 96.0 148.0 14
52256 HELUTHERM 145 MULTI-C 3X2.5 10.4 146.0 183.0 14
52257 HELUTHERM 145 MULTI-C 4X2.5 11.5 150.0 221.0 14
52258 HELUTHERM 145 MULTI-C 5X2.5 12.6 200.0 273.0 14
52259 HELUTHERM 145 MULTI-C 6X2.5 13.8 227.0 326.0 14
52260 HELUTHERM 145 MULTI-C 7X2.5 15.3 235.0 397.0 14
52261 HELUTHERM 145 MULTI-C 8X2.5 16.5 265.0 475.0 14
52262 HELUTHERM 145 MULTI-C 10X2.5 18.3 326.0 542.0 14
52263 HELUTHERM 145 MULTI-C 12X2.5 18.4 376.0 582.0 14
52264 HELUTHERM 145 MULTI-C 14X2.5 19.6 428.0 681.0 14
52265 HELUTHERM 145 MULTI-C 16X2.5 20.7 480.0 778.0 14
52266 HELUTHERM 145 MULTI-C 19X2.5 23.5 557.0 948.0 14
52267 HELUTHERM 145 MULTI-C 21X2.5 24.4 606.0 1042.0 14
52268 HELUTHERM 145 MULTI-C 1X4 6.3 56.0 86.0 12
52269 HELUTHERM 145 MULTI-C 2X4 10.9 135.0 196.0 12
52270 HELUTHERM 145 MULTI-C 3X4 12.8 178.0 248.0 12
52271 HELUTHERM 145 MULTI-C 4X4 12.8 220.0 316.0 12
52272 HELUTHERM 145 MULTI-C 5X4 14.3 259.0 376.0 12
52273 HELUTHERM 145 MULTI-C 6X4 15.6 302.0 452.0 12
52274 HELUTHERM 145 MULTI-C 7X4 17.0 355.0 555.0 12
52275 HELUTHERM 145 MULTI-C 8X4 18.3 392.0 655.0 12
52276 HELUTHERM 145 MULTI-C 10X4 20.7 480.0 767.0 12
52277 HELUTHERM 145 MULTI-C 12X4 20.3 557.0 829.0 12
52278 HELUTHERM 145 MULTI-C 14X4 22.1 636.0 948.0 12
52279 HELUTHERM 145 MULTI-C 1X6 6.9 81.0 108.0 10
52280 HELUTHERM 145 MULTI-C 2X6 12.1 175.0 255.0 10
52281 HELUTHERM 145 MULTI-C 3X6 12.8 240.0 330.0 10
52282 HELUTHERM 145 MULTI-C 4X6 14.3 305.0 429.0 10
52283 HELUTHERM 145 MULTI-C 5X6 16.0 441.0 536.0 10
52284 HELUTHERM 145 MULTI-C 6X6 17.4 473.0 624.0 10
52285 HELUTHERM 145 MULTI-C 7X6 19.3 505.0 751.0 10
52286 HELUTHERM 145 MULTI-C 1X10 8.4 124.0 170.0 8
52287 HELUTHERM 145 MULTI-C 2X10 15.1 265.0 409.0 8
52288 HELUTHERM 145 MULTI-C 3X10 16.4 370.0 550.0 8
52289 HELUTHERM 145 MULTI-C 4X10 18.1 485.0 715.0 8
52290 HELUTHERM 145 MULTI-C 5X10 20.2 610.0 882.0 8
52291 HELUTHERM 145 MULTI-C 6X10 22.3 715.0 1026.0 8
52292 HELUTHERM 145 MULTI-C 7X10 24.3 820.0 1195.0 8
Technical Data
  • Halogen-free control and connecting cable with increased heat resistance
  • Temperature Range
    Flexing
    -35°C to +120°C (-31°F to +248°F)
    Fixed Installation
    -55°C to +145°C (-67°F to +293°F)
    In short-circuit +250°C/+482°F
  • Nominal Voltage
    U0/U 450/ 750 V (up to 0.75 mm²)
    U0/U 600/1000 V (1 mm²)
  • Test Voltage 3500 V
  • Minimum Bending Radius
    For fixed installation 4x cable Ø
    In operation to -30°C/-22°F 12x cable Ø
    In operation to +60°C/+140°F 8x cable Ø
  • Coupling Resistance
    Max. 250 Ohm/km
  • Caloric Load Values
    See Technical Information
  • Power Ratings Table
    See Technical Information
Approvals
RoHSCE VDE GL
Cable Construction
  • Tinned copper wires, according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Conductor insulation of polyolefin-copolymer, electron beam cross-linked and halogen-free
  • Black conductors with continuous white numbering
  • Conductors stranded in layers with optimal lay-length
  • Braided shield of tinned copper wires, coverage approx. 85%
  • Polyolefin-Copolymer, electron beam cross-linked and halogen-free outer jacket
  • Color: Black
  • Different insulation and outer jacket in other colors available on request
Application
These halogen-free, electron beam cross linked and temperature resistant wiring and control cables with enhanced fire behavior properties are used for wiring up the lighting fixtures, heaters, electric machines (temperature class B), switching systems and distribution switchboards. A very long service life is also given on account of their excellent high-temperature stability.
These cables exhibit good resistance to weathering as well as being very stable to temperature, moisture, ozone and UV radiation. These cables are therefore mainly used for traffic control systems and diverse outdoor applications. The development of smoke is low and no corrosive d=gases are liberated during combustion of these halogen-free cables in case of fire. The risk of toxic fumes inconsiderably less in the event of fire, because the caloric load value is lower. Precious time can thus be won for a disciplined evacuation, and unnecessary loss of life can be prevented. the extend of the damage to costly control and monitoring systems and the concrete nd steel structures of buildings and plant due to fire is reduced by this. Injuries to persons and and damage to materials can be prevented. A lower conductor cross-section is possible in certain circumstances because of the high thermal load and thus savings in the space and weight required can be made. These wiring and control cables provide a significant contribution in safety engineering and environmental protection.
EMI = Electromagnetic Interference
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Lower propagation of fire
  • Low development of smoke and fumes
  • Good abrasion and notch resistance
  • Good resistance to oils and weathering
  • Resistant to UV radiation and ozone
  • Resistant to soldering temperatures
  • Thermal class B
  • These control cables are resistant to melting, even when in contact with a soldering iron at temperatures of between 300°C/572°F and 380°C/716°F, because of the electron-beam cross-linking for the insulation material
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • Tests
    Flame test
    (unit flame test) to VDE 0482-332-3, BS 4066 part 3/ DIN EN 60332-3-22, IEC 60332-3-22 (equivalent DIN VDE 0472 part 804 test method C )
    Flame Test (cable) to VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2 (equivelant DIN VDE 0472 part 804 test method B)
    Corrosiveness of combustion gases according to DIN VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
    Halogen-free according to DIN VDE 0482 part 267 / DIN EN 50267-2-1 / IEC 60754-1 (equivalent DIN VDE 0472 part 815)
    Smoke density to VDE 0482 part 268-1 and 2, test method C, IEC 61034-1 /61034-2, HD 606 and BS 7622 part 1 and 2 (DIN VDE 0472 part 816)

Note
  • Unshielded type: HELUTHERM® 145 MULTI
Cable Accessories
  • Coming Soon!
