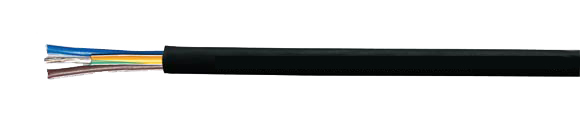

Heat-Resistant Cable: HELUTHERM® 120

Flexible, Heat-Resistant (+105°C/+221°F)

Hi-Tech Controls, Inc, European & Domestic cable

HELUTHERMŽ 120 flexible, heat-resistant (+105°C), RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Heat Resistant / Compensating Cables
AWG Selection
20
20
18
18
17
17
16
16
14
14
12
12

Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
24002  HELUTHERM 120 2X0.5 5.0 9.6 40.0 20
24003 HELUTHERM 120 3G0.5 5.3 14.4 50.0 20
24004 HELUTHERM 120 4G0.5 5.8 19.2 60.0 20
24005 HELUTHERM 120 5G0.5 6.7 24.0 70.0 20
24006 HELUTHERM 120 7G0.5 8.8 33.6 90.0 20
24007 HELUTHERM 120 12G0.5 11.1 58.0 140.0 20
24008 HELUTHERM 120 18G0.5 12.9 86.0 170.0 20
24009 HELUTHERM 120 25G0.5 15.8 101.0 250.0 20
24011  HELUTHERM 120 2X0.75 6.2 14.4 52.0 18
24012 HELUTHERM 120 3G0.75 6.6 21.6 61.0 18
24013 HELUTHERM 120 4G0.75 7.1 29.0 75.0 18
24014 HELUTHERM 120 5G0.75 8.0 36.0 94.0 18
24015 HELUTHERM 120 7G0.75 9.5 50.0 112.0 18
24016 HELUTHERM 120 12G0.75 11.6 86.0 180.0 18
24017 HELUTHERM 120 18G0.75 13.9 130.0 270.0 18
24018 HELUTHERM 120 25G0.75 16.9 180.0 380.0 18
24019  HELUTHERM 120 1X1 6.0 9.6 50.0 17
24020 HELUTHERM 120 2X1 6.5 19.2 60.0 17
24021 HELUTHERM 120 3G1 6.9 29.0 73.0 17
24022 HELUTHERM 120 4G1 7.7 38.0 88.0 17
24023 HELUTHERM 120 5G1 8.4 48.0 110.0 17
24024 HELUTHERM 120 6G1 9.3 58.0 121.0 17
24025 HELUTHERM 120 7G1 10.0 67.0 130.0 17
24026 HELUTHERM 120 12G1 12.5 115.0 223.0 17
24027 HELUTHERM 120 18G1 14.7 173.0 350.0 17
24028 HELUTHERM 120 25G1 17.8 240.0 485.0 17
24030  HELUTHERM 120 2X1.5 7.4 29.0 77.0 16
24031 HELUTHERM 120 3G1.5 8.1 43.0 97.0 16
24032 HELUTHERM 120 4G1.5 9.0 58.0 122.0 16
24033 HELUTHERM 120 5G1.5 10.0 72.0 143.0 16
24034 HELUTHERM 120 7G1.5 11.9 101.0 179.0 16
24035 HELUTHERM 120 12G1.5 14.5 173.0 310.0 16
24036 HELUTHERM 120 18G1.5 17.4 259.0 460.0 16
24037 HELUTHERM 120 25G1.5 21.3 360.0 650.0 16
24039  HELUTHERM 120 2X2.5 9.3 48.0 120.0 14
24046 HELUTHERM 120 3G2.5 10.1 72.0 150.0 14
24040 HELUTHERM 120 4G2.5 11.0 96.0 200.0 14
24041 HELUTHERM 120 5G2.5 12.3 120.0 250.0 14
24042 HELUTHERM 120 7G2.5 14.6 168.0 310.0 14
24044  HELUTHERM 120 2X4 10.6 77.0 180.0 12
24291 HELUTHERM 120 3G4 11.5 115.0 220.0 12
24045 HELUTHERM 120 4G4 12.5 154.0 300.0 12
24292 HELUTHERM 120 5G4 15.1 192.0 360.0 12
Technical Data
  • Special PVC cable with increased heat-resistance
  • Adapted to DIN VDE 0281 part 12
    0.5-0.75 mm² according IEC 60227/56 1.0-2.5 mm² according IEC 60227/57
  • Temperature Range
    Flexing
    -5°C to 105°C (+23°F to 221°F)
    Fixed Installation
    -30°C to +105°C (-22°F to +221°F)
    (Up to +120°C/+248°F for short time)
  • Nominal Voltage
    0.5-1 mm²: U0/U 300/500 V
    1.5 mm² and above: U0/U 450/750 V
  • Spark-Test 6000 V
  • Test Voltage 2000 V
  • Breakdown Voltage min. 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5x cable Ø
    Fixed Installation 4x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSCE VDE
Cable Construction
  • Bare copper conductors to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • Special PVC conductor insulation, TI3 to DIN VDE 0281 part 1
  • Conductor identification to DIN VDE 0293-308
  • Conductor colors:
    Up to 5 conductors one-colored
    6 and more conductors, black with numbering
  • 3 and above, with green-yellow earth conductor
  • 2 conductors without green-yellow earth conductor
  • Conductors stranded in layers with optimal lay-length
  • Special PVC outer jacket, heat-resistant TM3 to DIN VDE 0281 part 1
  • Outer jacket: Black (RAL 9005), other colors on request
Application
This cables are ideal for use in machines, appliances or motors which are subject to direct contact with high temperatures (e.g. garnishing machines and drying towers etc.)
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
  • On request
    HELUTHERM® 120 H03V2V2-F
    HELUTHERM® 120 H05V2V2-F
    HELUTHERM® 120 (H)05V2V2-F
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
