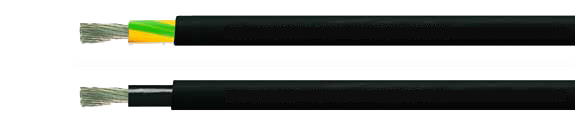

Heat-Resistant Cable: HELUTHERM® 125-J/-O

Extra Flexible, Halogen-free, Temperature resistant

Sealcon, Inc, European & Domestic cable

HELUTHERM� 120 flexible, heat-resistant (+105�C), RoHS Compliant, RoHS Approved, Sealcon, , Heat Resistant / Compensating Cables

Part-No. Description & No. Conductors x cross-sec. mm2 Outer Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
65300 HELUTHERM 125-J 1G 0.5 3.6 4.8 13.0 20
65301 HELUTHERM 125-J 1G 0.75 3.8 7.2 16.0 18
65302 HELUTHERM 125-J 1G 1 4.1 9.6 20.0 17
65303 HELUTHERM 125-J 1G 1.5 4.6 14.4 27.0 16
65304 HELUTHERM 125-J 1G 2.5 5.2 24.0 37.0 14
65305 HELUTHERM 125-J 1G 4 5.7 38.0 52.0 12.0
65306 HELUTHERM 125-J 1G 6 6.7 58.0 76.0 10
65307 HELUTHERM 125-J 1G 10 8.1 96.0 121.0 8
65308 HELUTHERM 125-J 1G 16 9.5 154.0 182.0 6
65309 HELUTHERM 125-J 1G 25 11.2 240.0 267.0 4
65310 HELUTHERM 125-J 1G 35 12.4 336.0 363.0 2
65311 HELUTHERM 125J 1G 50 14.2 480.0 526.0 1
65312 HELUTHERM 125-J 1G 70 16.9 672.0 700.0 2/0
65313 HELUTHERM 125-J 1G 95 18.6 912.0 1014.0 3/0
65286 HELUTHERM 125-O 1 X 0.5 3.6 4.8 13.0 20
65287 HELUTHERM 125-O 1 X 0.75 3.8 7.2 16.0 18
65288 HELUTHERM 125-O 1 X1 4.1 9.6 20.0 17
65289 HELUTHERM 125-O 1 X 1.5 4.6 14.4 27.0 16
65290 HELUTHERM 125-O 1 X 2.5 5.2 24.0 37.0 14
65291 HELUTHERM 125-O 1 X 4 5.7 38.0 52.0 12
65292 HELUTHERM 125-O 1 X 6 6.7 58.0 76.0 10
65293 HELUTHERM 125-O 1 X 10 8.1 96.0 121.0 8
65294 HELUTHERM 125-O 1 X 16 9.5 154.0 182.0 6
65295 HELUTHERM 125-O 1 X 25 11.2 240.0 267.0 4
65296 HELUTHERM 125-O 1 X 35 12.4 336.0 363.0 2
65297 HELUTHERM 125-O 1 X 50 14.2 480.0 526.0 1
65298 HELUTHERM 125-O 1 X 70 16.9 672.0 700.0 2/0
65299 HELUTHERM 125-O 1 X 95 18.6 912.0 1014.0 3/0
Technical Data
  • flexible and heat-resistant single conductor
  • Temperature Range
    Flexing -50°C to 125°C
  • Nominal Voltage
    U0/U 600/1000 V
  • Test Voltage 2000 V
  • Breakdown Voltage min. 4000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    flexing approx. 7,5x cable ø
    fixed installationa approx. 3x cable ø
Approvals
RoHSCE
Cable Construction
  • Tinned copper, fine wire conductor, to DIN VDE 0295 Kl.5, BS6360 cl.5   and/or IEC60228 cl.5.
  • 1st conductor insulation from special compound elastomer based, cross-linked, color: black or green/yellow
  • 2nd conductor insulation from compound elastomer based, cross-linked, color: black
  • meter marking
Application
These halogen-free and temperature resistant single conductor are used for wiring up the heaters, electric machines (temperature class B), switching systems and distribution switchboards, production lines and machinery production. The excellence temperature resistant is the guarantee of a very long life cycle.
CE Approval = The Product is conformed with the EC Low-Voltage Directive 2006/95/EG
Properties
  • Halogen-free
  • uv-resistant
  • Abrasion resistant
  • Flexible at heat and low temperature
  • The materials used in manufacture are silicone and cadmium-free and contain no substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow ground;
    x = without green-yellow ground (OZ).
Cable Accessories
  • Coming Soon!
