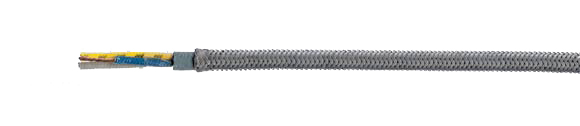

Heat-Resistant Cable: MULTITHERM® 400-ES

Halogen-Free, High Grade Steel Braiding

Hi-Tech Controls, Inc, European & Domestic cable

MULTITHERM® 400-ES halogen-free, high grade steel braiding, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Heat Resistant / Compensating Cables
AWG Selection
20
20
18
18
17
17
16
16
14
14
12 12 10 10 8 8 6 6


Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Max. permissible current carrying capacity at +340°C (A) Weight ca. kg/km AWG
52018 MULTITHERM 400-ES 2X0.5 7.1 10.0 3.3 84.0 20
52019 MULTITHERM 400-ES 3X0.5 7.3 15.0 3.1 89.0 20
52020 MULTITHERM 400-ES 4X0.5 8.4 19.0 3.0 111.0 20
52021 MULTITHERM 400-ES 5X0.5 8.9 25.0 2.9 126.0 20
52022 MULTITHERM 400-ES 6X0.5 9.5 30.0 2.8 146.0 20
52023 MULTITHERM 400-ES 7X0.5 9.6 34.0 2.7 158.0 20
52024 MULTITHERM 400-ES 2X0.75 7.6 14.4 5.1 95.0 18
52025 MULTITHERM 400-ES 3X0.75 7.9 21.6 5.1 109.0 18
52026 MULTITHERM 400-ES 4X0.75 8.9 29.0 4.9 131.0 18
52027 MULTITHERM 400-ES 5X0.75 9.7 36.0 4.7 157.0 18
52028 MULTITHERM 400-ES 6X0.75 10.4 43.0 4.5 177.0 18
52029 MULTITHERM 400-ES 7X0.75 10.6 50.0 4.4 190.0 18
52030 MULTITHERM 400-ES 2X1 7.8 19.0 7.0 105.0 17
52031 MULTITHERM 400-ES 3X1 8.7 29.0 6.7 126.0 17
52032 MULTITHERM 400-ES 4X1 9.2 38.0 6.4 148.0 17
52033 MULTITHERM 400-ES 5X1 10.0 48.0 6.2 174.0 17
52034 MULTITHERM 400-ES 6X1 10.7 58.0 6.0 198.0 17
52035 MULTITHERM 400-ES 7X1 10.9 67.0 5.8 212.0 17
52036 MULTITHERM 400-ES 2X1.5 8.9 29.0 9.4 132.0 16
52037 MULTITHERM 400-ES 3X1.5 9.2 43.0 9.0 153.0 16
52038 MULTITHERM 400-ES 4X1.5 10.0 58.0 8.6 183.0 16
52039 MULTITHERM 400-ES 5X1.5 10.9 72.0 8.3 212.0 16
52040 MULTITHERM 400-ES 6X1.5 11.6 88.0 8.0 241.0 16
52041 MULTITHERM 400-ES 7X1.5 11.9 101.0 7.8 259.0 16
52042 MULTITHERM 400-ES 2X2.5 10.1 48.0 12.2 191.0 14
52043 MULTITHERM 400-ES 3X2.5 10.6 72.0 11.6 213.0 14
52044 MULTITHERM 400-ES 4X2.5 11.5 96.0 11.2 256.0 14
52045 MULTITHERM 400-ES 5X2.5 12.7 120.0 10.8 307.0 14
52046 MULTITHERM 400-ES 6X2.5 14.9 144.0 10.4 359.0 14
52047 MULTITHERM 400-ES 7X2.5 15.1 168.0 10.1 388.0 14
52048 MULTITHERM 400-ES 2X4 11.9 77.0 16.0 260.0 12
52049 MULTITHERM 400-ES 3X4 12.3 115.0 15.3 303.0 12
52050 MULTITHERM 400-ES 4X4 15.1 154.0 14.6 378.0 12
52051 MULTITHERM 400-ES 5X4 15.6 192.0 14.1 458.0 12
52052 MULTITHERM 400-ES 7X4 16.6 270.0 13.3 593.0 12
52053 MULTITHERM 400-ES 3X6 16.3 173.0 20.0 442.0 10
52054 MULTITHERM 400-ES 4X6 18.3 230.0 19.0 567.0 10
52055 MULTITHERM 400-ES 5X6 19.8 288.0 18.0 671.0 10
52056 MULTITHERM 400-ES 4X10 22.1 384.0 26.0 866.0 8
52057 MULTITHERM 400-ES 4X16 26.6 615.0 34.0 1203.0 6

Technical Data
  • Special conductor insulation for high temperatures
  • Temperature Range
    -60°C to +400°C (-76°F to +752°F)
  • Permissible Temperature
    +200°C to +400°C (+392°F to +752°F)
    (up to +500°C/+932°F for short time)
  • Nominal Voltage 500 V
  • Test Voltage 2500 V
  • Minimum Bending Radius
    approx. 5x cable Ø
Approvals
RoHSCE VDE
Cable Construction
  • Copper wires, finely stranded, nickel plated (ASTM B 355)
  • Conductor insulation of braided glass-fiber impregnated with silicone
  • Second conductor insulation of glass-fiber braiding impregnated with silicone
  • Overall lay up of conductors
  • Conductor identification according to color coding listed below
  • Common outer jacket of glass-fibre braiding impregnated with silicone
  • Jacket color: Gray
  • Overall shield of braided high-grade steel, coverage approx. 80%
Application
Where extremely high connecting and ambient temperatures occur, e.g. in iron and steel works, rolling mills, foundries, glass and ceramic plants, in power plant construction, in the chemical industry, nuclear technology, crude oil engineering, in technical applications in medicine, as well as for wiring resistance in electrical heating equipment, furnaces and machinery in thermoplastic forming. Due to the special construction of the cable, a maximum temperature of approx. +220°C/+428°F is recommended for use in damp environments. Applications at temperatures above this should be used in dry environments only. The robust braiding of high-grade steel protects the cable from aggressive atmospheres and mechanical stresses. The braided shield can also be used for grounding purposes.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Asbestos & cadmium free
  • Color code:
    • No. of conductors with protective ground conductor
      3 = green-yellow/blue/brown
      4 = green-yellow/black/blue/brown
      5 = green-yellow/black/blue/brown/white
      6 = green-yellow/black/blue/brown/white/red
      7 = green-yellow/black/blue/brown/white/red/gray
    • No. of conductors without protective ground conductor
      2 = blue/brown
      3 = black/blue/brown
      4 = black/blue/brown/white
      5 = black/blue/brown/white/red
      6 = black/blue/brown/white/red/gray
      7= black/blue/brown/white/red/gray/green

Note
  • Please inquire for further configurations and conductor cross sections for your requirements.
  • Unshielded type: MULTITHERM® 400
Cable Accessories
  • Coming Soon!
