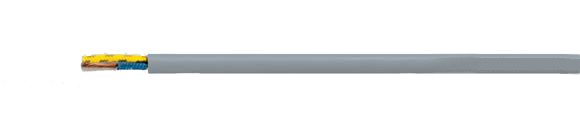

Heat-Resistant Cable: MULTITHERM® 400

Halogen-Free

Sealcon, Inc, European & Domestic cable

MULTITHERM® 400 halogen-free, RoHS Compliant, RoHS Approved, Sealcon, , Heat Resistant / Compensating Cables
AWG Selection
20
20
18
18
17
17
16
16
14
14
12 12 10 10 8 8 6 6


Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight ca. kg/km AWG
51741 MULTITHERM 400 2X0.5 6.2 10.0 47.0 20
51742 MULTITHERM 400 3X0.5 6.4 15.0 50.0 20
51743 MULTITHERM 400 4X0.5 7.5 19.0 70.0 20
51744 MULTITHERM 400 5X0.5 8.0 25.0 81.0 20
51745 MULTITHERM 400 6X0.5 8.6 30.0 97.0 20
51746 MULTITHERM 400 7X0.5 8.7 34.0 105.0 20
51747 MULTITHERM 400 2X0.75 6.7 14.4 55.0 18
51748 MULTITHERM 400 3X0.75 7.0 21.6 66.0 18
51749 MULTITHERM 400 4X0.75 8.0 29.0 86.0 18
51750 MULTITHERM 400 5X0.75 8.8 36.0 103.0 18
51751 MULTITHERM 400 6X0.75 9.5 43.0 119.0 18
51752 MULTITHERM 400 7X0.75 9.7 50.0 130.0 18
51753 MULTITHERM 400 2X1 6.9 19.0 63.0 17
51754 MULTITHERM 400 3X1 7.8 29.0 82.0 17
51755 MULTITHERM 400 4X1 8.3 38.0 98.0 17
51756 MULTITHERM 400 5X1 9.1 48.0 119.0 17
51757 MULTITHERM 400 6X1 9.8 58.0 138.0 17
51758 MULTITHERM 400 7X1 10.0 67.0 150.0 17
51759 MULTITHERM 400 2X1.5 8.0 29.0 87.0 16
51760 MULTITHERM 400 3X1.5 8.3 43.0 103.0 16
51761 MULTITHERM 400 4X1.5 9.1 58.0 128.0 16
51762 MULTITHERM 400 5X15 10.0 72.0 150.0 16
51763 MULTITHERM 400 6X1.5 10.7 88.0 175.0 16
51764 MULTITHERM 400 7X1.5 11.0 101.0 190.0 16
51765 MULTITHERM 400 2X2.5 9.2 48.0 135.0 14
51766 MULTITHERM 400 3X2.5 9.7 72.0 153.0 14
51767 MULTITHERM 400 4X2.5 10.6 96.0 190.0 14
50060 MULTITHERM 400 5X2.5 11.8 120.0 230.0 14
50061 MULTITHERM 400 6X2.5 12.8 144.0 270.0 14
50062 MULTITHERM 400 7X2.5 13.0 168.0 295.0 14
50063 MULTITHERM 400 2X4 11.0 77.0 191.0 12
50064 MULTITHERM 400 3X4 11.4 115.0 224.0 12
50065 MULTITHERM 400 4X4 13.0 154.0 285.0 12
50066 MULTITHERM 400 5X4 14.5 192.0 360.0 12
50067 MULTITHERM 400 7X4 16.5 270.0 485.0 12
50068 MULTITHERM 400 3X6 14.2 173.0 340.0 10
50069 MULTITHERM 400 4X6 16.2 230.0 442.0 10
50070 MULTITHERM 400 5X6 17.7 288.0 535.0 10
50071 MULTITHERM 400 4X10 20.0 384.0 710.0 8
50072 MULTITHERM 400 4X16 24.5 615.0 990.0 6
Technical Data
  • Special copper-nickel silicone-insulated cable with enhanced heat resistance
  • Temperature Range
    -60°C to +400°C (-76F to +752°F)
    (up to +500°C/+932°F for short time)
  • Nominal Voltage 500 V
  • Test Voltage 2500 V
  • Minimum Bending Radius
    Approx. 5x cable Ø
Approvals
RoHSCE
Cable Construction
  • Copper wires, finely stranded, nickel plated (ASTM B 355)
  • Conductor insulation of braided glass-fiber impregnated with silicone
  • Second conductor insulation of glass-fiber braiding impregnated with silicone
  • Overall lay up of conductors
  • Conductor identification according to color coding listed below
  • Common outer jacket of glass-fiber braiding impregnated with silicone
  • Jacket color: Gray
Application
MULTITHERM® 400 cables are used for applications where extremely high connecting and ambient temperatures can arise, e.g. in iron and steel works, rolling mills, foundries, glass and ceramic factories, in furnace and power plant construction, during thermoplastic molding processes etc. The special construction of the cable is designed for a recommended maximum temperature in damp environments of +220°C/+428°F and for dry environments above this temperature.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Asbestos & cadmium free
  • Color code:
    • No. of conductors with protective ground conductor
      3 = green-yellow/blue/brown
      4 = green-yellow/black/blue/brown
      5 = green-yellow/black/blue/brown/white
      6 = green-yellow/black/blue/brown/white/red
      7 = green-yellow/black/blue/brown/white/red/gray
    • No. of conductors without protective ground conductor
      2 = blue/brown
      3 = black/blue/brown
      4 = black/blue/brown/white
      5 = black/blue/brown/white/red
      6 = black/blue/brown/white/red/gray
      7= black/blue/brown/white/red/gray/green

Note
  • Please inquire for further configurations and conductor cross sections for your requirements.
  • We supply customized cables for temperature ranges up to approx. +1600°C/2912°F.
  • Please inquire for minimum ordering quantities and delivery times.
  • Shielded type: MULTITHERM® 400-ES
Cable Accessories
  • Coming Soon!
