Hi-Tech Controls Heat-Resistant Cable:

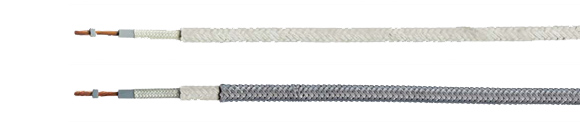

HELUTHERM® 600/600-ES

Halogen-Free, High Grade Steel Braiding
HELUTHERM® 600/600-ES halogen-free, high grade steel braiding, RoHS Compliant, RoHS Approved, Hi-Tech Controls, , Heat Resistant / Compensating Cables
HELUTHERM® 600
Part-No. Description & No. Conductors x cross-sec. mm2 Conductor Construction Outer
Ø

mm
Linear Resistance at 20°C Ohm/km Max. permissible current carrying capacity at +400°C (A) Nickel Weight kg/km Weight ca. kg/km AWG
51703 HELUTHERM 600 1x0.25 4x0.3 2.0 346.0 1.5 2.4 9.5 24
51704 HELUTHERM 600 1x0.5 7x0.3 2.3 175.0 2.5 4.8 11.5 20
51705 HELUTHERM 600 1x0.75 11x0.3 2.6 115.0 4.5 7.2 15.0 18
51706 HELUTHERM 600 1x1 14x0.3 2.8 88.0 5.5 14.4 17.8 17
51707 HELUTHERM 600 1x1.5 21x0.3 3.2 59.0 7.0 14.4 24.0 16
51708 HELUTHERM 600 1x2.5 35x0.3 3.7 35.0 10.0 24.0 36.0 14
51709 HELUTHERM 600 1x4 56x0.3 4.5 22.0 13.5 38.0 54.5 12
51710 HELUTHERM 6001x6 84x0.3 6.0 14.6 16.0 58.0 77.0 10
51711 HELUTHERM 600 1x10 140x0.3 8.0 8.8 21.0 96.0 150.0 8
51712 HELUTHERM 600 1x16 228x0.3 9.1 5.5 28.0 154.0 225.0 6
51713 HELUTHERM 600 1x25 354x0.3 10.8 3.5 36.0 240.0 340.0 4
51714 HELUTHERM 600 1x35 495x0.3 13.0 2.5 58.0 336.0 440.0 2
51715 HELUTHERM 600 1x50 707x0.3 13.5 1.5 70.0 480.0 600.0 1
HELUTHERM® 600-ES
Part-No. Description & No. Conductors x cross-sec. mm2 Conductor Construction Outer
Ø

mm
Linear Resistance at 20°C Ohm/km Max. permissible current carrying capacity at +400°C (A) Nickel Weight kg/km Weight ca. kg/km AWG
50475 HELUTHERM 600-ES 1x0.5 7x0.3 3.2 175.0 2.5 4.8 21.0 20
50476 HELUTHERM 600-ES 1x0.75 11x0.3 3.5 115.0 4.5 7.2 29.0 18
50477 HELUTHERM 600-ES 1x1 14x0.3 3.7 88.0 5.5 9.6 38.0 17
50478 HELUTHERM 600-ES 1x1.5 21x0.3 4.1 59.0 7.0 14.4 44.0 16
50479 HELUTHERM 600-ES 1x2.5 35x0.3 4.6 35.0 10.0 24.0 56.0 14
50480 HELUTHERM 600-ES 1x4 56x0.3 5.4 22.0 13.5 38.0 78.0 12
50481 HELUTHERM 600-ES 1x6 84x0.3 6.9 14.6 16.0 58.0 112.0 10
50482 HELUTHERM 600-ES 1x10 140x0.3 8.9 8.8 21.0 96.0 198.0 8
50483 HELUTHERM 600-ES 1x16 228x0.3 10.0 5.5 28.0 154.0 281.0 6
50484 HELUTHERM 600-ES 1x25 354x0.3 11.7 3.5 36.0 240.0 410.0 4
50485 HELUTHERM 600-ES 1x35 495x0.3 15.1 2.5 58.0 336.0 536.0 2
50486 HELUTHERM 600-ES 1x50 707x0.3 15.6 1.5 70.0 480.0 697.0 1
Technical Data
  • Special conductor insulation for high temperatures
  • Temperature Range
    -60°C to +600°C (-76°F to +1112°F)
  • Permissible Temperature
    +400°C to +600°C (+752°F to +1112°F)
    (Up to +600°C/+1112°F for short time)
  • Nominal Voltage 500 V
  • Test Voltage 2500 V
  • Minimum Bending Radius
    Approx. 5x cable Ø
Approvals
RoHSCE
Cable Construction

HELUTHERM® 600

  • Stranded nickel conductor (ASTM B 355)
  • Double insulated glass-fiber braiding, impregnated with silicone
  • Braiding of special mineral fibers and additional impregnation with silicone

HELUTHERM® 600-ES

  • Like above
  • Additional high grade steel braiding, coverage approximately 80%
Application
HELUTHERM® 600 cables are used in applications where extremely high connecting and ambient temperatures occur, e.g. in iron and steel works, rolling mills, foundries, glass and ceramic plants, in power construction as well as for wiring in electrical heating equipment, furnaces and in thermoplastic forming. Good characteristics in the presence of moisture and chemical effects.
HELUTHERM® 600-ES
The robust braiding of high-grade steel protects the cable from aggressive atmospheres and mechanical stresses. The high-grade braiding also gives this cable an attractive appearance. The braided shield can also be used for grounding.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Asbestos and cadmium-free
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
