Helukat Copper Data Cables

Data, Network
& BUS Cable: LAN Cable IVS

IBM P/N 33G2772, IBM P/N 33G8224, IBM P/N 33G2775

Hi-Tech Controls, Inc, European wires and cables

LAN Cable, IVS IBM Standard, IBM P/N 33G2772, IBM P/N 33G8224, IBM P/N 33G2775, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part Number: 80068
Part Number: 80070
Part Number: 80071
Electrical Data
Characteristic Impedance: 150 Ohm ± 15 Ohm at 3 to 20 MHz 150 Ohm ± 15 Ohm at 3 to 20 MHz 150 Ohm ± 15 Ohm at 3 to 20 MHz
185 Ohm ± 18.5 Ohm at 38.4 kHz 235 Ohm ± 23.5 Ohm at 38.4 kHz 235 Ohm ± 35.25 Ohm at 38.4 kHz
270 Ohm ± 27 Ohm at 9.6 kHz 390 Ohm ± 39 Ohm at 9.6 kHz 390 Ohm ± 58.5 Ohm at 9.6 kHz
Direct Current Resistance: 57.1 Ohm/km 151.0 Ohm/km 151.0 Ohm/km
Relative Propagation Velocity: 78% 78% -
Typical Values
Frequency (MHz) 20 100 20 100 20 100
Attenuation (dB/10m) 7.4 18.7 4.9 12.3 7.4 18.7
Next (dB) 80.0 60.0 50.0 39.0 60.0 49.0
Technical Data
Weight: 85.0 kg/km 60.0 kg/km 70.0 kg/km
Min. Bending Radius for Laying: 110 mm 84 mm 117 mm
Operating Temperature Range, min.: -10°C/+14°F -10°C/+14°F -10°C/+14°F
Operating Temperature Range, max.: +70°C/+158°F +70°C/+158°F +70°C/+158°F
Caloric Load, approximate value: 1.70 MJ/m 0.68 MJ/m 0.78 MJ/m
Copper Value: 38.0 kg/km 21.0 kg/km 25.0 kg/km
Technical Data
Electrical Data
Characteristic Impedance: 150 Ohm ± 15 Ohm at 3 to 20 MHz 150 Ohm ± 15 Ohm at 3 to 20 MHz 150 Ohm ± 15 Ohm at 3 to 20 MHz
185 Ohm ± 18.5 Ohm at 38.4 kHz 235 Ohm ± 23.5 Ohm at 38.4 kHz 235 Ohm ± 35.25 Ohm at 38.4 kHz
270 Ohm ± 27 Ohm at 9.6 kHz 390 Ohm ± 39 Ohm at 9.6 kHz 390 Ohm ± 58.5 Ohm at 9.6 kHz
Direct Current Resistance: 57.1 Ohm/km 151.0 Ohm/km 151.0 Ohm/km
Relative Propagation Velocity: 78% 78% -
Typical Values
Frequency (MHz) 20 100 20 100 20 100
Attenuation (dB/10m) 7.4 18.7 4.9 12.3 7.4 18.7
Next (dB) 80.0 60.0 50.0 39.0 60.0 49.0
Technical Data
Weight: 85.0 kg/km 60.0 kg/km 70.0 kg/km
Min. Bending Radius for Laying: 110 mm 84 mm 117 mm
Operating Temperature Range, min.: -10°C/+14°F -10°C/+14°F -10°C/+14°F
Operating Temperature Range, max.: +70°C/+158°F +70°C/+158°F +70°C/+158°F
Caloric Load, approximate value: 1.70 MJ/m 0.68 MJ/m 0.78 MJ/m
Copper Value: 38.0 kg/km 21.0 kg/km 25.0 kg/km

Approvals
RoHS

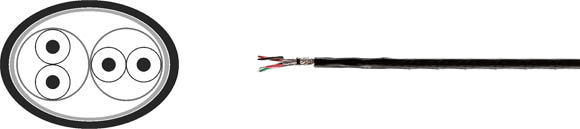

Cable Construction IBM P/N 33G2772
Type 1A
P/N 33G8224
Type 1A mini
P/N 33G2775
Type 6A
Inner Conductor Diameter: 0.64 mm 0.40 mm 0.48 mm
Conductor Material: Copper, bare Copper, bare Copper, bare
Conductor Insulation: Foam-skin-PE Foam-skin-PE Foam-skin-PE
Number of Conductors: 4 4 4
Conductor Colors: black/orange, red/green black/orange, red/green black/orange, red/green
Shield over Stranding Element: Polyester foil, aluminum-lined Polyester foil, aluminum-lined Polyester foil, aluminum-lined
Shield over Stranding 1: Cu braid, tinned Cu braid, tinned Cu braid, tinned
Shield over Stranding 2: - - -
Outer Jacket Material: PVC PVC PVC
Cable Dimensions: 7.6 x 11.9 mm 5.5 x 8.9 mm 7.8 mm
Outer Jacket Color: Black Black Black
Application
European IVS types are used in the area of the IVS system, developed by IBM. They correspond to the writing guidelines set by IBM.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
