Data, Network & BUS Cable:
HF-Cable Flexible HF FLEX
Sealcon, Inc, European & Domestic cable
Part-No.
Designation
Nominal
Size
Outer
Conductor Form
Outer
Dia. mm
Min.
Bending Radius for Laying
Attenuation
at 100 m (dB)
Medium
Power kW
Weight
kg/km
Cell
flex,
low loss
800201
HCF 14-50
1/4"
Corrugations
10.0
40
14.50
0.600
130.0
800202
HLCF 38-50
3/8"
Corrugations
11.2
50
10.30
0.600
120.0
800203
HLCF 12-50
1/2"
Corrugations
16.2
70
7.20
1.200
220.0
800204
HLCF 58-50
5/8"
Corrugations
21.4
90
5.60
1.700
370.0
800205
HLCF 78-50
7/8"
Corrugations
28.0
120
4.10
2.500
550.0
800206
HLCF 114-50
1
1/4"
Corrugations
39.4
200
3.40
2.400
1050.0
800207
HLCFS 114-50
1
1/4"
Corrugations
39.4
200
2.90
3.600
1150.0
800208
HLCF 158-50
1 5/8"
Corrugations
51.0
300
2.50
4.200
1530.0
800209
HLCF 214-50
2 1/4"
Corrugations
60.0
410
2.20
5.400
1920.0
Cell
flex,
super flexible
800210
HSCF 14-50
1/4"
Corrugations
7.8
25
19.50
0.300
70.0
800211
HSCF 38-50
3/8"
Corrugations
10.2
25
14.10
0.600
120.0
800212
HSCF 12-50
1/2"
Corrugations
13.7
32
11.20
0.800
210.0
Cell
flex,
ultra flexible
800213
HUCF 12-50
1/2"
Corrugations
13.7
30
13.20
0.700
240.0
Technical
Data
Not Available
Approvals
Cable
Construction
Flexible

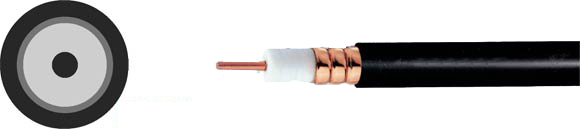

ultrahigh-frequency cables have a coax
cable Construction, where the inner and
outer conductors are kept apart by
a dielectric. This dielectric is applied
by a special manufacturing process.
The outer conductors have an annular
corrugation. The corrugation troughs
press into the dielectric, thereby
sealing this cavities. This prevents
any penetrated water from advancing
through annular-corrugated cables.
The jacket for these cables is made
of black abrasion-resistant PE. This
material is halogen-free and UV-resistant.
As an optional, a flame-resistant version
is available.
Application
Flexible ultrahigh-frequency
cables are used as the cables for the antennae
in directional radio, radio stations, satellite
radio, radio and TV transmitters, etc. The
most important parameters for these coax
cables are characteristic impedance, reflection
factor, attenuation, average power and the
bending radius.
