Data, Network
& BUS Cable: LAN Cable 200

  S-FTP flex

Hi-Tech Controls, Inc, European & Domestic cable

LAN Cable, 200 S-FTP flex, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part Number:
81254
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 260 Ohm/km max.
Mutual Capacitance: 47.0 nF/km nom.
Rel. Propagation Velocity: 69%
Typical Values
Frequency (MHz) 10 16 62.5 100 200
Attenuation (dB/10m) 0.8 1.1 2.4 2.9 4.3
Next (dB) 58.0 56.0 45.0 43.0 37.0
ACR (dB) 57.2 54.9 42.6 40.1 32.7
Technical Data
Weight: 35.0 kg/km
Min. Bending Radius for Laying: 46 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, approximate value: 0.543 MJ/m
Copper Value: 24.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5e
  • Flame-retardant acc. to IEC 60332-1
  • Smoke density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Corrosiveness acc. to EN50267-2-3
Technical Data
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 260 Ohm/km max.
Mutual Capacitance: 47.0 nF/km nom.
Rel. Propagation Velocity: 69%
Typical Values
Frequency (MHz) 10 16 62.5 100 200
Attenuation (dB/10m) 0.8 1.1 2.4 2.9 4.3
Next (dB) 58.0 56.0 45.0 43.0 37.0
ACR (dB) 57.2 54.9 42.6 40.1 32.7
Technical Data
Weight: 35.0 kg/km
Min. Bending Radius for Laying: 46 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, approximate value: 0.543 MJ/m
Copper Value: 24.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5e
  • Flame-retardant acc. to IEC 60332-1
  • Smoke density acc. to IEC 61034
  • Halogen-free acc. to 60754-2
  • Corrosiveness acc. to EN50267-2-3

Approvals
RoHS

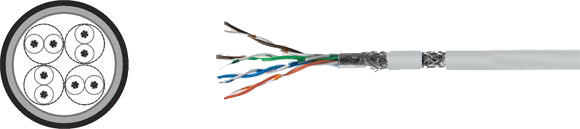

Cable Construction S-FTP 4x2xAWG 26/7 FRNC
Inner Conductor Diameter: 0.48 mm
Conductor Material: Copper, bare
Conductor Insulation: PO
Conductor Colors: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
Shielding 1: Polyester foil over stranded bundle
Shield over Stranding Element: -
Shield 1 over Stranding: Polyester foil, aluminum-lined
Shield 2 over Stranding: Copper braid
Outer Jacket Material: FRNC
Outer Cable Diameter: approximately 5.3 mm
Outer Jacket Color: Gray similar to RAL 7035
Application
®200 data cables are used in the tertiary level of a network as patch cables and connection cables. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Fast Ethernet, Ethernet, ATM155, FDDI, token ring 4/16 Mbit/s, or ISDN absolutely trouble-free. With its optimized construction, the ®200 series can be manufactured quickly and easily with all common RJ45 plugs.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
