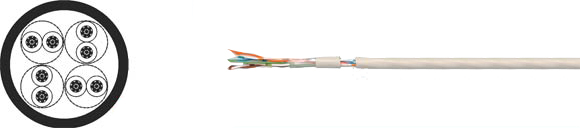

Hi-Tech Controls Data, Network & BUS Cable: LAN Cable 100

  UTP flex
LAN Cable, 100 UTP flex, Hi-Tech Controls, , RoHS Approved, RoHS Compliant
Part Number: 80055
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 290 Ohm/km max.
Mutual Capacitance: 50.0 nF/km nom.
Rel. Propagation Velocity: 74%
Typical Values
Frequency (MHz) 10 16 62.5 100
Attenuation (dB/10m) 0.9 1.2 2.4 3.1
Next (dB) 53.0 50.0 41.0 38.0
ACR (dB) 52.1 48.8 38.6 34.9
Technical Data
Weight: 17.0 kg/km
Min. Bending Radius for Laying: 35 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, approximate value: 0.527 MJ/m
Copper Value: 11.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5
Technical Data
Electrical Data
Characteristic Impedance: 100 Ohm ± 15 Ohm at 1 to 100 MHz
Loop Resistance: 290 Ohm/km max.
Mutual Capacitance: 50.0 nF/km nom.
Rel. Propagation Velocity: 74%
Typical Values
Frequency (MHz) 10 16 62.5 100
Attenuation (dB/10m) 0.9 1.2 2.4 3.1
Next (dB) 53.0 50.0 41.0 38.0
ACR (dB) 52.1 48.8 38.6 34.9
Technical Data
Weight: 17.0 kg/km
Min. Bending Radius for Laying: 35 mm
Operating Temperature Range, min.: -20°C/-4°F
Operating Temperature Range, max.: +60°C/+140°F
Caloric Load, approximate value: 0.527 MJ/m
Copper Value: 11.0 kg/km
Norms
  • Acc. to ISO/IEC 11801
  • Acc. to EN 50173
  • Acc. to EIA/TIA 568-A, Category 5

Approvals
RoHS
Cable Construction UTP 4x2xAWG 26/7 PVC
Inner Conductor Diameter: 0.48 mm
Conductor Material: Copper, bare
Conductor Insulation: PO
Conductor Colors: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
Shielding 1: -
Shield over Stranding Element: -
Shield 1 over Stranding: -
Shield 2 over Stranding: -
Outer Jacket Material: PVC
Outer Cable Diameter: approximately 4.5 mm
Outer Jacket Color: Gray similar to RAL 7035
Application
®100 data cables are used in the tertiary level of a network as patch cables and connection cables. They are characterized by large performance reserves and outstanding performance. They can be used to implement services such as Fast Ethernet, Ethernet, ATM155, FDDI, token ring 4/16 Mbit/s, or ISDN absolutely trouble-free. With its optimized construction, the ®100 series can be manufactured quickly and easily with all common RJ45 plugs.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
