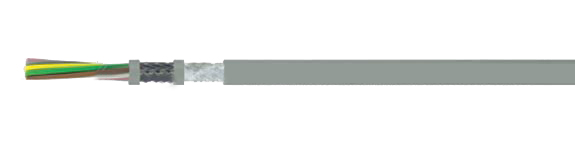

Control Cable: SUPERTRONIC 330 C-PURÍ

Special Cable for Drag Chains / Track cable, Halogen-Free, EMI Preferred Type

Hi-Tech Controls, Inc, European wires and cables

Hi-Tech Controls,  - SUPERTRONIC 330 C-Pur÷, EMC (EMI Preferred Type) Cable for Drag Chain, halogen free, Control Cable for Drag Chain, Control Cable

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
49797 SUPERTRONIC 330 C-PURÍ 2X0.14 4.3 11.2 32.0 26
49798 SUPERTRONIC 330 C-PURÍ 3X0.14 4.6 14.1 35.0 26
49799 SUPERTRONIC 330 C-PURÍ 4X0.14 4.8 15.5 40.0 26
49800 SUPERTRONIC 330 C-PURÍ 5X0.14 5.1 18.3 45.0 26
49801 SUPERTRONIC 330 C-PURÍ 7X0.14 5.8 27.8 66.0 26
49802 SUPERTRONIC 330 C-PURÍ 10X0.14 6.8 39.3 86.0 26
49803 SUPERTRONIC 330 C-PURÍ 12X0.14 7.4 42.1 94.0 26
49804 SUPERTRONIC 330 C-PURÍ 14X0.14 7.4 45.3 102.0 26
49805 SUPERTRONIC 330 C-PURÍ 18X0.14 7.8 54.1 118.0 26
49806 SUPERTRONIC 330 C-PURÍ 24X0.14 8.8 66.3 149.0 26
49807 SUPERTRONIC 330 C-PURÍ 25X0.14 9.2 68.4 156.0 26
49808 SUPERTRONIC 330 C-PURÍ 2X0.25 5.0 14.9 38.0 24
49809 SUPERTRONIC 330 C-PURÍ 3X0.25 5.2 18.8 44.0 24
49810 SUPERTRONIC 330 C-PURÍ 4X0.25 5.6 21.3 51.0 24
49811 SUPERTRONIC 330 C-PURÍ 5X0.25 5.9 31.0 68.0 24
49812 SUPERTRONIC 330 C-PURÍ 7X0.25 6.8 39.6 82.0 24
49813 SUPERTRONIC 330 C-PURÍ 10X0.25 8.3 53.9 110.0 24
49814 SUPERTRONIC 330 C-PURÍ 12X0.25 8.4 59.1 124.0 24
49815 SUPERTRONIC 330 C-PURÍ 14X0.25 8.9 64.2 135.0 24
49816 SUPERTRONIC 330 C-PURÍ 18X0.25 9.5 78.4 150.0 24
49817 SUPERTRONIC 330 C-PURÍ 24X0.25 10.8 89.9 194.0 24
49818 SUPERTRONIC 330 C-PURÍ 25X0.25 11.3 101.0 204.0 24
49819 SUPERTRONIC 330 C-PURÍ 2X0.34 5.4 18.1 45.0 22
49820 SUPERTRONIC 330 C-PURÍ 3X0.34 5.7 28.7 60.0 22
49821 SUPERTRONIC 330 C-PURÍ 4X0.34 6.0 35.7 76.0 22
49822 SUPERTRONIC 330 C-PURÍ 5X0.34 6.5 39.1 82.0 22
49823 SUPERTRONIC 330 C-PURÍ 7X0.34 7.7 52.7 110.0 22
49824 SUPERTRONIC 330 C-PURÍ 10X0.34 9.1 67.4 148.0 22
49825 SUPERTRONIC 330 C-PURÍ 12X0.34 10.0 76.4 166.0 22
49826 SUPERTRONIC 330 C-PURÍ 14X0.34 10.0 85.5 185.0 22
49827 SUPERTRONIC 330 C-PURÍ 18X0.34 10.6 99.7 216.0 22
49828 SUPERTRONIC 330 C-PURÍ 24X0.34 12.1 147.1 291.0 22
49829 SUPERTRONIC 330 C-PURÍ 25X0.34 12.8 155.0 305.0 22
Technical Data
  • Special PUR jacketed cable, shielded
  • Temperature Range
    Flexing
    -40░C to +80░C
    Fixed
    -50░C to +80░C
  • Nominal Voltage 300 V
  • Test Voltage
    Conductor/conductor 1500 V
    Conductor/shielding 1000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Capacitance
    Conductor/conductor 60 nF/km
  • Minimum bending Radius
    Flexing 7.5x cable ě
    Fixed 4x cable ě
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
  • Coupling Resistance
    Max. 250 Ohm/km
Approvals
RoHSUL CSA CE VDE
Cable Construction
  • Bare copper conductor, fine wire to DIN VDE 0295 cl. 6, col. 4, BS 6360 cl. 6
  • Polyolefin conductor insulation
  • Color coded to DIN 47100
  • Conductors stranded in layers with optimal lay length
  • Wrapping over the outer layer
  • Braided shielding of tinned copper wires, coverage approx. 85%
  • Conductor wrapping with fleece
  • Special full polyurethane outer jacket TMPU acc. to DIN VDE 0281 Part 10, Annex A and acc. to UL Std. 1581 Tab. 50227 +80░C/+176░F
  • Jacket color: Gray (RAL 7001)
Application

Especially suited for installation in dry, moist and wet environments and outdoors with flexible movement without tensile stress or forced movements. A highly flexible PVC control cable, suitable for frequent and quick lifting and bending stresses in machines and tool building, robot systems and on constantly moving machine components. Long service life guarantees reliable function and good cost efficiency. The dense shielding assures interference free transmission of all signals and impulses.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.), we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details, see selection table for drag chain cables.
EMI = Electromagnetic Interference
To optimize the EMI characteristics we recommend a large area of contact of the copper braiding around the entire circumference on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Flame-retardant outer jacket acc. to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent to DIN VDE 0472 Part 804 Test Method B)
  • Low adhesion
  • High flexibility at low temperatures
  • High abrasion resistance
  • Tear and cut resistant
  • Notch resistant
  • Resistant to UV-radiation, oxygen, ozone, hydrolysis, oil
  • Partially resistant to microbial attack, hydraulic fluid, coolant emulsion, alkalis
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • currently not available
Cable Accessories
  • Coming Soon!
