copper, ultra-fine wire conductors
acc. to DIN VDE 0295 cl. 6,
BS 6360 cl. 6 and/or IEC 60228
black with sequential numbering
imprinted in white, according
to DIN VDE 0293
stranded together with optimal
lay-length and stabilizing
wrapping facilitates sliding

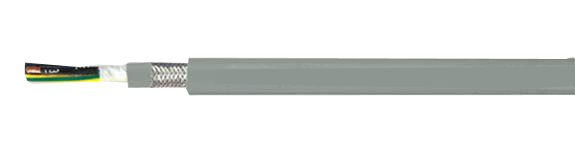

Braided shield made of tinned copper wire, approx.
Gray (RAL 7001)
As optimized supply
cable for the supply to motors,
in particular to DNC motors and
servo-motors. These cables
are specially designed for
use in power drag chains,
handling equipment, robotics,
tooling machinery, and processing
and manufacturing machinery.
Optimized insulation materials
ensure resistance to oils
(including mineral oils),
greases, coolants, hydraulic
fluids as well as many alkalis
and solvents. Favorable outer
diameters, reduced weights
and enhanced torsion characteristics
assure the use in multi-layer
operations with extremely
high continuous bending loads.
Suitable for outdoor use.
To optimize the EMI features
we recommend a large round
contact of the copper braiding
on both ends.
Adhesion-free, extremely abrasion
resistant, halogen-free, flame
retardant, resistant to hydrolysis
and microbial attack
The materials used in manufacture
are cadmium-free, contain no
silicone and are free from substances
harmful to the wetting properties
PUR-jacket flame retardent according
to VDE 0482-332-1-2, DIN EN 60332-1-2/ IEC
60332-1 (equivalent DIN VDE 0472 part 804 test
For extreme applications extending
beyond standard solutions we recommend
that you request our questionnaire,
which has been especially designed
for energy supply systems.
Please observe applicable installation
regulations for use in energy supply
