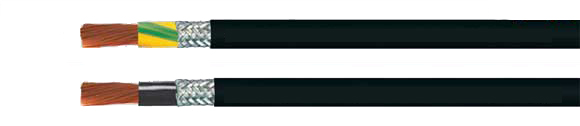

Control Cable: MULTISPEED® 600-C-PUR -J/-O

Special Single Conductors for Drag Chains / Track Cable, Shielded, Halogen-Free, EMI Preferred Type

Sealcon, Inc, European & Domestic cable

Sealcon,  - MULTISPEED 600-C-PUR –J/-O, Halogen-Free, shielded, EMC (EMI) preferred type, Special Single Conductors for Drag Chains, Control Cable

Part-No.
Description & No. Conductors x cross-sec. mm2

Outer
Diameter
mm

Copper Weight
kg/km
Weight
ca. kg/km
AWG
25901 MULTISPEED 600-C-PUR-J 1G6 7.8 71.0 101.0 10
25282 MULTISPEED 600-C-PUR-O 1X6 7.8 71.0 101.0 10
25902 MULTISPEED 600-C-PUR-J 1G10 9.7 122.0 168.0 8
25283 MULTISPEED 600-C-PUR-O 1X10 9.7 122.0 168.0 8
25903 MULTISPEED 600-C-PUR-J 1G16 11.7 180.0 217.0 6
25284 MULTISPEED 600-C-PUR-O 1X16 11.7 180.0 217.0 6
25904 MULTISPEED 600-C-PUR-J 1G25 13.0 282.0 342.0 4
25285 MULTISPEED 600-C-PUR-O 1X25 13.0 282.0 342.0 4
25905 MULTISPEED 600-C-PUR-J 1G35 14.7 386.0 468.0 2
25286 MULTISPEED 600-C-PUR-O 1X35 14.7 386.0 468.0 2
25906 MULTISPEED 600-C-PUR-J 1G50 18.7 535.0 584.0 1
25287 MULTISPEED 600-C-PUR-O 1X50 18.7 535.0 584.0 1
25907 MULTISPEED 600-C-PUR-J 1G70 22.2 750.0 822.0 2/0
25288 MULTISPEED 600-C-PUR-O 1X70 22.2 750.0 822.0 2/0
25908 MULTISPEED 600-C-PUR-J 1G95 23.4 1004.0 1190.0 3/0
25289 MULTISPEED 600-C-PUR-O 1X95 23.4 1004.0 1190.0 3/0
25909 MULTISPEED 600-C-PUR-J 1G120 24.5 1260.0 1400.0 4/0
25290 MULTISPEED 600-C-PUR-O 1X120 24.5 1260.0 1400.0 4/0
25910 MULTISPEED 600-C-PUR-J 1G150 27.8 1570.0 1710.0 300 kcmil
25291 MULTISPEED 600-C-PUR-O 1X150 27.8 1570.0 1710.0 300 kcmil
25911 MULTISPEED 600-C-PUR-J 1G185 29.4 1911.0 2021.0 350 kcmil
25292 MULTISPEED 600-C-PUR-O 1X185 29.4 1911.0 2021.0 350 kcmil
25912 MULTISPEED 600-C-PUR-J 1G240 34.2 2451.0 2601.0 500 kcmil
25293 MULTISPEED 600-C-PUR-O 1X240 34.2 2451.0 2601.0 500 kcmil
25913 MULTISPEED 600-C-PUR-J 1G300 37.4 2997.0 3257.0 600 kcmil
25294 MULTISPEED 600-C-PUR-O 1X300 37.4 2997.0 3257.0 600 kcmil
Technical Data
  • Special drag chain conductor cable for mechanical stresses adapted to DIN VDE 0281 Part 3 and UL Style 10545
  • Temperature Range
    Flexing
    -30�C to +80�C (-22�F to +176�F)
    Fixed Installation
    -40�C to +90�C (-40�F to +194�F)
  • Nominal Voltage U0/U 600/1000 V
  • Test Voltage 3000 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Minimum Bending Radius
    Flexing 5x conductor �
    Fixed Installation 3x conductor �
Approvals
RoHSUL CSA CE RoHS
Cable Construction
  • Bare copper conductor, ultra-fine wire to DIN VDE 0295 cl. 6, column 4, BS 6360 cl. 6 and/or IEC 60228 cl. 6
  • 1st conductor insulation from thermoplastic polymer in either black or green/yellow
  • Braided shielding of tinned copper wires, coverage approx. 85%
  • Conductor wrapping with fleece
  • 2nd insulation from special polyurethane, TMPU adapted to DIN VDE 0282, Part 10, low adhesion
  • Jacket color: Pine Green (RAL 6028)
Application

These special drag chain conductor cables permit extended use with extreme requirements, with free movement, without tensile stresses or forced movements. Suitable for installation in long traverse paths and high speeds at high temperature in dry, moist or wet environments or in open air. These cables can be used for all applications demanding the highest requirements in flexibility, abrasion resistance, ozone and chemical resistance. The copper shielding assures a disturbance free data and signal transmission for measuring and control systems.
For applications extending beyond standard solutions (e.g. composting plants or high lift conveyor systems working at extremely low speeds), we recommend that you request our questionnaire, which has been especially designed for energy supply systems. Before installation in cable trays, please read the instructions.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Flame retardant
  • Halogen-free
  • Abrasion resistant
  • Very good oil resistance
  • Very good alternating bending strength
  • Very high resistance to mechanical stresses
  • Improved notch resistance
  • Ozone and UV-resistant
  • Coolant-resistant
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow earth conductor (OZ)
  • Please observe applicable installation regulations for use in energy supply chains.
