Control Cable:

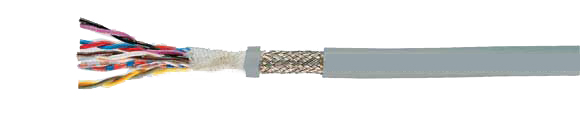

SUPER-PAAR-TRONIC-C-PUR

Special Cable for Drag Chains / Track Cable, Halogen-Free, EMI Preferred Type

Sealcon, Inc, European & Domestic cable

Sealcon,  – SUPER-PAAR-TRONIC-C-PUR, EMC (EMI Preferred Type) Cable for Drag Chain, halogen free, Control Cable for Drag Chain, Control Cable
AWG Selection
24 24 20 20 18 18 17 17

Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
19101 SUPER-PAAR-TRONIC-C-PUR 1X2X0.25 5.3 14.0 28.0 24
19102 SUPER-PAAR-TRONIC-C-PUR 2X2X0.25 6.0 32.0 61.0 24
19103 SUPER-PAAR-TRONIC-C-PUR 3X2X0.25 8.1 38.4 73.0 24
19104 SUPER-PAAR-TRONIC-C-PUR 4X2X0.25 8.9 43.2 90.0 24
19105 SUPER-PAAR-TRONIC-C-PUR 5X2X0.25 9.6 51.5 105.0 24
19106 SUPER-PAAR-TRONIC-C-PUR 6X2X0.25 10.4 71.8 133.0 24
19107 SUPER-PAAR-TRONIC-C-PUR 8X2X0.25 13.0 74.4 156.0 24
19108 SUPER-PAAR-TRONIC-C-PUR 10X2X0.25 14.1 90.0 188.0 24
19109 SUPER-PAAR-TRONIC-C-PUR 14X2X0.25 14.1 111.2 220.0 24
19119 SUPER-PAAR-TRONIC-C-PUR 1X2X0.5 6.7 22.0 47.0 20
19120 SUPER-PAAR-TRONIC-C-PUR 2X2X0.5 7.2 50.0 100.0 20
19121 SUPER-PAAR-TRONIC-C-PUR 3X2X0.5 10.4 71.8 131.0 20
19122 SUPER-PAAR-TRONIC-C-PUR 4X2X0.5 11.4 74.4 149.0 20
19123 SUPER-PAAR-TRONIC-C-PUR 5X2X0.5 12.5 84.5 169.0 20
19124 SUPER-PAAR-TRONIC-C-PUR 6X2X0.5 13.3 99.6 196.0 20
19125 SUPER-PAAR-TRONIC-C-PUR 8X2X0.5 16.9 144.3 285.0 20
19126 SUPER-PAAR-TRONIC-C-PUR 10X2X0.5 17.7 176.0 344.0 20
19127 SUPER-PAAR-TRONIC-C-PUR 14X2X0.5 17.7 215.4 401.0 20
19128 SUPER-PAAR-TRONIC-C-PUR 1X2X0.75 7.2 34.0 61.0 18
19129 SUPER-PAAR-TRONIC-C-PUR 2X2X0.75 9.6 60.0 113.0 18
19130 SUPER-PAAR-TRONIC-C-PUR 3X2X0.75 11.4 85.7 158.0 18
19131 SUPER-PAAR-TRONIC-C-PUR 4X2X0.75 12.5 93.6 173.0 18
19132 SUPER-PAAR-TRONIC-C-PUR 5X2X0.75 13.5 113.0 203.0 18
19133 SUPER-PAAR-TRONIC-C-PUR 6X2X0.75 14.7 130.4 231.0 18
19134 SUPER-PAAR-TRONIC-C-PUR 8X2X0.75 18.1 192.2 343.0 18
19135 SUPER-PAAR-TRONIC-C-PUR10X2X0.75 20.7 258.0 467.0 18
19136 SUPER-PAAR-TRONIC-C-PUR 14X2X0.75 20.7 316.6 546.0 18
19137 SUPER-PAAR-TRONIC-C-PUR 1X2X1 7.6 42.0 71.0 17
19138 SUPER-PAAR-TRONIC-C-PUR 2X2X1 8.3 73.0 130.0 17
19139 SUPER-PAAR-TRONIC-C-PUR 3X2X1 12.2 93.6 170.0 17
19140 SUPER-PAAR-TRONIC-C-PUR 4X2X1 13.2 117.8 204.0 17
19141 SUPER-PAAR-TRONIC-C-PUR 5X2X1 14.6 139.0 238.0 17
Technical Data
  • Special PETP-PUR cable, twisted in pairs, adapted to DIN VDE 0245, 0812
  • Conductor and Loop Resistance as per DIN VDE 0295, for 0.25 mm� see Technical Information
  • Temperature Range
    Flexing
    -40�C to +70�C (-40�F to +158�F)
    Fixed Installation
    -50�C to +70�C (-58�F to +158�F)
  • Nominal Voltage 350 V
  • Test Voltage 1500 V
  • Insulation Resistance
    Min. 100 MOhm x km
  • Mutual Capacitance
    Approx. 135 nF/km
  • Minimum Bending Radius
    Flexing at 0.25 mm�
    Approx. 7.5x cable �
    Fixed Installation at 0.25 mm�
    Approx. 4x cable �
    Flexing at 0.5 - 1.0 mm�
    Approx. 10x cable �
    Fixed Installation at 0.5 - 1.0 mm�
    Approx. 5x cable�
  • Coupling Resistance
    Max. 250 Ohm/km
  • Radiation Resistance
    Up to 100x106 cJ/kg (up to 100 Mrad)
Approvals
RoHSCERoHS
Cable Construction
  • Plain copper conductors, extra fine wire stranded to DIN VDE 0295 cl. 6. col. 4, BS 6360 cl. 6 and IEC 60228 cl. 6
  • Special conductor insulation of TPE-E, oil resistant
  • Conductor identification as per DIN 47100
  • Conductors twisted in pairs, the pairs torsion-free stranded in layers
  • Special fleece over outer layer
  • Tinned copper shielded braiding, approx. 85% coverage
  • Full-polyurethane outer jacket TMPU, to DIN VDE 0282 part 10, appendix A
  • Outer jacket: Gray (RAL 7001)
Application

These pair stranded and overall shielded special cables for drag chains offer the operational possibilities where the outer electrical influences at high frequency cause interference of impulse transmission, and are applied for permanent flexible operations in machineries, machine tools, robot systems, for movable automated machinery parts and multi shift operation as a transmission cable for BUS-systems. These highly flexible data cables are developed according to the newest state of technology improvement and with its sliding abilities by using the PETP-conductor insulation and Low adhesion and cut-resistant PUR-outer jacket, they are guaranteed an optimum life durability and are highly economic.
For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.), we recommend for our specially developed inquiry sheet for energy guiding systems.
Before installation in cable trays, please read the instructions. For further technical details see selection table for drag chain cables.
EMI = Electromagnetic Interference
To optimize the EMI characteristics we recommend a large area of contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Very good oil resistance, test method according to DIN VDE 0472 part 803
  • Resistant to weather, ozone and UV-radiation
  • Chemical resistant to solvents, acids, lye and hydraulic liquidity
  • Flame retardant
  • Guaranteed permanent application in multi-shift operation under extreme high bending stress
  • High resistance to mechanical strain
  • High property of alternating bending strength
  • Long life durability through low friction-resistance by using the TPE-E-conductor insulation where the conductors are stranded in layers
  • High tensile strength, abrasion and impact resistant at low temperatures
  • Low adhesion
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm�.
Cable Accessories
  • Coming Soon!
