Helukabel Special Cables:

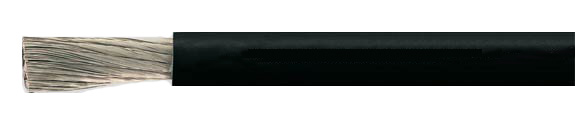

HELUWIND WK Thermflex 145
Wind Power Cable - Halogen-Free, +145°C/+293°F
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel
Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Diameter
mm
Copper
Weight
kg/km
Weight
ca. kg/km
75486
HELUWIND WK Thermflex 145 1X6
5.4
58.0
70.0
75487
HELUWIND WK Thermflex 145 1X10
6.8
96.0
119.0
75488
HELUWIND WK Thermflex 145 1X16
8.5
154.0
180.0
75489
HELUWIND WK Thermflex 145 1X25
10.3
240.0
270.0
75490
HELUWIND WK Thermflex 145 1X35
11.8
336.0
373.0
75491
HELUWIND WK Thermflex 145 1X50
13.9
480.0
528.0
75492
HELUWIND WK Thermflex 145 1X70
16.0
672.0
728.0
75493
HELUWIND WK Thermflex 145 1X95
18.5
912.0
966.0
75494
HELUWIND WK Thermflex 145 1X120
20.5
1152.0
1230.0
75495
HELUWIND WK Thermflex 145 1X150
22.1
1440.0
1530.0
71437
HELUWIND WK Thermflex 145 1X185
24.8
1776.0
1880.0
75496
HELUWIND WK Thermflex 145 1X240
27.7
2304.0
2500.0
Technical
Data
Helukabel
Temperature Range Flexing
-20°C to +120°C (-4°F to +248°F)
Non-Flexing
-55°C to +145°C (-67°F to +293°F)
Nominal Voltage U0/U 0.6/1 kV
Test Voltage
3000 V
Minimum Bending Radius For flexible use - 12.5-15x cable Ø
Insulation Resistance Min. 100 MOhm x km
Approvals
Cable
Construction
Tinned stranded copper wire, acc. to DIN VDE 0295 cl. 5 or IEC 60228 cl. 5
Special insulation, polyolefin-copolymer halogen-free, flame retardant
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring. =
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
Properties
RoHS Approved
UV, Oil, weather and abrasion-resistant
Note
The listed dimensions and article numbers are only a small part of our possibilities. You can recieve our cables and wires as a single or Multi Conductor version and also with EMI shielding. For other specifications, ask our specialists.
The product is conformed
with the EC Low-Voltage
Directive 73/23/EEC and
93/68/EEC.
