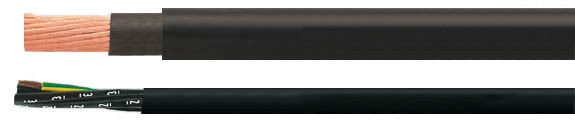

Helukabel Special Cables: HELUWIND WK 103w-Torsion
Wind Power Cable - UV-Resistant, Single & Multi Conductor, Shielded & Unshielded, UL & CSA Style 10678/21179, FT1

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Heluwind WK 103w-Torsion Wind Power Cable, Heluwind, Helu wind, Heluwind WK 103w-Torsion, Heluwind WK 103w, Heluwind WK 103, Heluwind 103, UV-Resistant, UV Resistant, Single & Multi Conductor, Single Conductor, Multi Conductor, MultiConductor, Shielded, Unshielded, UL, CSA Style, FT1, 704809, 704810, 704811, 704812, 704813, 704814, 704815, 704816, 704817, 704818, 704819, 704819, 704820, 704821, 704822, 704823, 704824, 704825, 704826, 704827, 704828, 704829, 704830, 704831, 704832, 704833, 704834, 704835, 704836, 704837, 704838, 704839, 704840, 704841, 704842, 704843, 704844, 704845, 703920, 703921, 703922, 704366, 704846, 704847, 704848, 704849, 704850, 704851, 704852, 704853, 704854, 704855, 704856, 704857, 704267, 703925, 703926, 704858, 704859, 704367, 705040, 704368, 703930, 704269, 704860, 704861, 704862, 704863, 704864, 704865, 704866, 703932, 704867, 704868, 703933, 704869, 704870, 704871, 704872, 704873, 704287, 704288, 704289, 704874, 704291, 704875, 704293, 704294, 704295, 704876, Hi-Tech Controls, Helukabel
AWG Selection
22
 22
20
 20
18
 18
17
 17
16
 16 14 14 12 12 10 10 8 8 6 6 4 4
2 2 1 1 2/0 2/0 3/0 3/0 4/0 4/0 300 300 350 350 500 500 600 600 750 750


HELUWIND WK 103w-Torsion (Heat-Resistant, JZ)
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG / MCM
704809  HELUWIND WK 103w-Torsion 4X0.34 7.1 29.0 86.0 22
704810  HELUWIND WK 103w-Torsion 4X0.5 7.4 33.4 99.0 20
704811  HELUWIND WK 103w-Torsion 6X0.5 8.6 51.2 121.0 20
704812  HELUWIND WK 103w-Torsion 10X0.5 10.8 48.0 165.0 20
704813  HELUWIND WK 103w-Torsion 12X0.5 11.1 84.0 208.0 20
704814  HELUWIND WK 103w-Torsion 3X0.75 7.3 22.0 77.0 18
704815  HELUWIND WK 103w-Torsion 4X0.75 7.9 29.0 100.0 18
704816  HELUWIND WK 103w-Torsion 5X0.75 8.6 36.0 120.0 18
704817  HELUWIND WK 103w-Torsion 7X0.75 10.0 51.0 170.0 18
704818  HELUWIND WK 103w-Torsion 10X0.75 11.0 72.0 200.0 18
704819  HELUWIND WK 103w-Torsion 12X0.75 11.8 87.0 220.0 18
704820  HELUWIND WK 103w-Torsion 14X0.75 12.5 101.0 238.0 18
704821  HELUWIND WK 103w-Torsion 16X0.75 13.2 116.0 271.0 18
704822  HELUWIND WK 103w-Torsion 18X0.75 13.9 130.0 310.0 18
704823  HELUWIND WK 103w-Torsion 21X0.75 15.2 152.0 380.0 18
704824  HELUWIND WK 103w-Torsion 25X0.75 16.9 180.0 490.0 18
704825  HELUWIND WK 103w-Torsion 32X0.75 18.2 231.0 560.0 18
704826  HELUWIND WK 103w-Torsion 36X0.75 19.1 260.0 620.0 18
704827  HELUWIND WK 103w-Torsion 40X0.75 20.5 288.0 729.0 18
704828  HELUWIND WK 103w-Torsion 41X0.75 20.8 296.0 750.0 18
704829  HELUWIND WK 103w-Torsion 50X0.75 23.5 441.0 990.0 18
704830  HELUWIND WK 103w-Torsion 4X1 8.3 39.0 100.0 17
704831  HELUWIND WK 103w-Torsion 5X1 9.0 48.0 110.0 17
704832  HELUWIND WK 103w-Torsion 7X1 10.5 68.0 140.0 17
704833  HELUWIND WK 103w-Torsion 10X1 13.0 96.0 220.0 17
704834  HELUWIND WK 103w-Torsion 12X1 13.2 116.0 240.0 17
704835  HELUWIND WK 103w-Torsion 14X1 13.4 135.0 280.0 17
704836  HELUWIND WK 103w-Torsion 16X1 14.1 154.0 310.0 17
704837  HELUWIND WK 103w-Torsion 18X1 15.1 173.0 360.0 17
704838  HELUWIND WK 103w-Torsion 21X1 16.7 202.0 410.0 17
704839  HELUWIND WK 103w-Torsion 25X1 18.4 240.0 500.0 17
704840  HELUWIND WK 103w-Torsion 32X1 19.8 308.0 590.0 17
704841  HELUWIND WK 103w-Torsion 36X1 20.6 346.0 700.0 17
704842  HELUWIND WK 103w-Torsion 40X1 22.4 384.0 800.0 17
704843  HELUWIND WK 103w-Torsion 41X1 22.4 394.0 810.0 17
704844  HELUWIND WK 103w-Torsion 50X1 24.6 480.0 980.0 17
704845  HELUWIND WK 103w-Torsion 2X1.5 7.9 29.0 75.0 16
703920  HELUWIND WK 103w-Torsion 3X1.5 8.0 44.0 110.0 16
703921  HELUWIND WK 103w-Torsion 4X1.5 8.9 58.0 131.0 16
703922  HELUWIND WK 103w-Torsion 5X1.5 9.7 72.0 165.0 16
704366  HELUWIND WK 103w-Torsion 7X1.5 12.0 101.0 210.0 16
704846  HELUWIND WK 103w-Torsion 10X1.5 13.1 144.0 270.0 16
704847  HELUWIND WK 103w-Torsion 12X1.5 14.3 173.0 360.0 16
704848  HELUWIND WK 103w-Torsion 14X1.5 14.9 202.0 420.0 16
704849  HELUWIND WK 103w-Torsion 16X1.5 15.7 231.0 450.0 16
704850  HELUWIND WK 103w-Torsion 18X1.5 16.8 260.0 510.0 16
704851  HELUWIND WK 103w-Torsion 21X1.5 17.8 303.0 590.0 16
704852  HELUWIND WK 103w-Torsion 25X1.5 20.6 260.0 700.0 16
704853  HELUWIND WK 103w-Torsion 32X1.5 22.2 460.0 900.0 16
704854  HELUWIND WK 103w-Torsion 36X1.5 23.1 519.0 980.0 16
704855  HELUWIND WK 103w-Torsion 40X1.5 25.0 576.0 1030.0 16
704856  HELUWIND WK 103w-Torsion 41X1.5 25.0 591.0 1050.0 16
704857  HELUWIND WK 103w-Torsion 50X1.5 27.7 720.0 1200.0 16
704267  HELUWIND WK 103w-Torsion 3X2.5 8.9

72.0

 151.0 14
703925  HELUWIND WK 103w-Torsion 4X2.5 9.7 96.0 230.0 14
703926  HELUWIND WK 103w-Torsion 5X2.5 10.9 120.0 250.0 14
704858  HELUWIND WK 103w-Torsion 7X2.5 14.4 168.0 360.0 14
704859  HELUWIND WK 103w-Torsion 10X2.5 15.8 240.0 480.0 14
704367  HELUWIND WK 103w-Torsion 12X2.5 16.3 288.0 580.0 14
705040  HELUWIND WK 103w-Torsion 19X2.5 16.3 456.0 580.0 14
704368  HELUWIND WK 103w-Torsion 3X4 10.8 116.0 250.0 12
703930  HELUWIND WK 103w-Torsion 4X4 12.0 154.0 270.0 12
704269  HELUWIND WK 103w-Torsion 5X4 13.6 192.0 370.0 12
704860  HELUWIND WK 103w-Torsion 7X4 15.9 269.0 530.0 12
704861  HELUWIND WK 103w-Torsion 12X4 19.6 461.0 740.0 12
704862  HELUWIND WK 103w-Torsion 3X6 13.1 173.0 340.0 10
704863  HELUWIND WK 103w-Torsion 4X6 14.6 231.0 460.0 10
704864  HELUWIND WK 103w-Torsion 5X6 16.3 288.0 550.0 10
704865  HELUWIND WK 103w-Torsion 7X6 19.6 404.0 780.0 10
704866  HELUWIND WK 103w-Torsion 4X10 17.4 384.0 670.0 8
703932  HELUWIND WK 103w-Torsion 5X10 20.1 480.0 870.0 8
704867  HELUWIND WK 103w-Torsion 7X10 23.5 672.0 1150.0 8
704868  HELUWIND WK 103w-Torsion 4X16 20.7 615.0 1000.0 6
703933  HELUWIND WK 103w-Torsion 5X16 25.4 768.0 1250.0 6
704869  HELUWIND WK 103w-Torsion 4X25 25.2 960.0 1580.0 4
704870  HELUWIND WK 103w-Torsion 5X25 28.2 1200.0 1900.0 4
704871  HELUWIND WK 103w-Torsion 4X35 31.4 1344.0 2100.0 2
704872  HELUWIND WK 103w-Torsion 5X35 35.4 1680.0 2600.0 2
704873  HELUWIND WK 103w-Torsion 4X50 36.7 1920.0 2800.0 1
704287  HELUWIND WK 103w-Torsion 1X35 12.9 336.0 460.0 2
704288  HELUWIND WK 103w-Torsion 1X50 15.6 480.0 630.0 1
704289  HELUWIND WK 103w-Torsion 1X70 17.9 672.0 880.0 2/0
704874  HELUWIND WK 103w-Torsion 1X95 21.9 912.0 1230.0 3/0
704291  HELUWIND WK 103w-Torsion 1X120 23.1 1152.0 1540.0 4/0
704875  HELUWIND WK 103w-Torsion 1X150 27.2 1440.0 1870.0 300
704293  HELUWIND WK 103w-Torsion 1X185 27.5 1776.0 2300.0 350
704294  HELUWIND WK 103w-Torsion 1X240 31.2 2304.0 2970.0 500
704295  HELUWIND WK 103w-Torsion 1X300 34.2 2880.0 3730.0 600
704876  HELUWIND WK 103w-Torsion 1X400 39.3 3840.0 4500.0 750
Technical Data Helukabel
  • Temperature Range
     Flexing
    -35°C to +90°C (-31°F to +194°F)
    Fixed Installation
    -40°C to +90°C (-40°F to +194°F)
    Installation
    -20°C to +90°C (-25°F to +194°F)
  • Nominal Voltage
    According to VDE U0/U 0.6/1 kV
    According to UL 1000 V, for remanufactures
  • Test voltage, 50 Hz
    3000 V
  • Minimum Bending Radius
     10x cable Ø
  • Torsion Application
     +/- 140° per 1m for unshielded types
  • Approvals
    UL style 10678 to 400 mm2 Single Conductor
    UL style 21179 Multi Conductor
    cRUus, CE approved
  • Flame Test
     FT1
Approvals
RoHSUL CSA CE
Cable Construction
  • Special bare stranded copper wire, acc. to DIN VDE 0295
  • Special insulation PVC heat-resistant
  • Conductor colors, black with numbers + gnye
  • Special jacket compound PVC heat-resistant
  • Jacket color: Black
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • UV-resistant
  • RoHS approved
  • Multiclimatical app.
  • Torsion tested
  • Flame retardant
  • Oil resistant
  • Recyclable
  • Easy to tailor
Note
  • The listed part numbers show only a small list of our production range. All types can be produced as Single or Multi Conductor, shielded or unshielded versions. Please contact us with your individual requirements.
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
