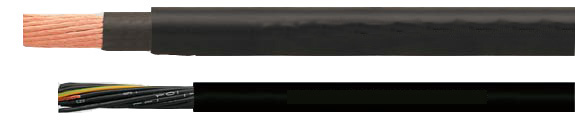

Helukabel Special Cables: HELUWIND WK 103k-Torsion
Wind Power Cable - UV-Resistant, Single & Multi Conductor, UL & CSA Style 10107/2570, FT1

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Heluwind WK 103w-Torsion Wind Power Cable, Heluwind, Helu wind, Heluwind WK 103w-Torsion, Heluwind WK 103w, Heluwind WK 103, Heluwind 103, UV-Resistant, UV Resistant, Single & Multi Conductor, Single Conductor, Multi Conductor, MultiConductor, Shielded, Unshielded, UL, CSA Style, FT1, 704940, 704941, 704942, 704943, 704944, 704945, 704946, 704947, 704948, 704949, 704950, 704951, 704952, 704953, 704954, 704955, 704956, 704957, 704958, 704959, 704960, 704961, 704962, 704963, 704964, 704965, 704966, 704967, 704968, 704969, 704970, 704971, 704972, 704973, 704974, 704975, 704976, 704977, 704978, 704979, 704980, 704981, 704982, 704983, 704984, 704985, 704986, 704987, 704988, 704989, 704990, 704991, 704992, 704993, 704994, 704995, 704996, 704997, 704998, 705038, 704999, 705000, 704001, 705002, 705003, 705004, 704005, 705006, 704007, 705008, 705009, 705010, 705011, 705012, 705013, 705014, 705016, 705017, 705018, 705015, 705019, 705020, 705021, 705022, 705023, 705024, 705025, 705026, Hi-Tech Controls, Helukabel
AWG Selection
22
 22
20
 20
18
 18
17
 17
16
 16 14 14 12 12 10 10 8 8 6 6 4 4
2 2 1 1 2/0 2/0 3/0 3/0 4/0 4/0 300 300 350 350 500 500 600 600 750 750
HELUWIND WK 103k-Torsion (Flexible at low temperatures, JZ)
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG / MCM
704940 HELUWIND WK 103k-Torsion 4x0.34 mm2 7.1 29.0 86.0 22
704941 HELUWIND WK 103k-Torsion 4x0.5 mm2 7.4 33.4 99.0 20
704942 HELUWIND WK 103k-Torsion 6x0.5 mm2 8.6 51.2 121.0 20
704943 HELUWIND WK 103k-Torsion 10x0.5 mm2 10.8 48.0 165.0 20
704944 HELUWIND WK 103k-Torsion 12x0.5 mm2 11.1 84.0 208.0 20
704945 HELUWIND WK 103k-Torsion 3x0.75 mm2 7.3 22.0 77.0 18
704946 HELUWIND WK 103k-Torsion 4x0.75 mm2 7.9 29.0 100.0 18
704947 HELUWIND WK 103k-Torsion 5x0.75 mm2 8.6 36.0 120.0 18
704948 HELUWIND WK 103k-Torsion 7x0.75 mm2 10.0 51.0 170.0 18
704949 HELUWIND WK 103k-Torsion 10x0.75 mm2 11.0 72.0 200.0 18
704950 HELUWIND WK 103k-Torsion 12x0.75 mm2 11.8 87.0 220.0 18
704951 HELUWIND WK 103k-Torsion 14x0.75 mm2 12.5 101.0 238.0 18
704952 HELUWIND WK 103k-Torsion 16x0.75 mm2 13.2 116.0 271.0 18
704953 HELUWIND WK 103k-Torsion 18x0.75 mm2 13.9 130.0 310.0 18
704954 HELUWIND WK 103k-Torsion 21x0.75 mm2 15.2 152.0 380.0 18
704955 HELUWIND WK 103k-Torsion 25x0.75 mm2 16.9 180.0 490.0 18
704956 HELUWIND WK 103k-Torsion 32x0.75 mm2 18.2 231.0 560.0 18
704957 HELUWIND WK 103k-Torsion 36x0.75 mm2 19.1 260.0 620.0 18
704958 HELUWIND WK 103k-Torsion 40x0.75 mm2 20.5 288.0 729.0 18
704959 HELUWIND WK 103k-Torsion 41x0.75 mm2 20.8 296.0 729.0 18
704960 HELUWIND WK 103k-Torsion 50x0.75 mm2 23.5 441.0 990.0 18
704961 HELUWIND WK 103k-Torsion 4x1 mm2 8.3 39.0 100.0 17
704962 HELUWIND WK 103k-Torsion 5x1 mm2 9.0 48.0 110.0 17
704963 HELUWIND WK 103k-Torsion 7x1 mm2 10.5 68.0 140.0 17
704964 HELUWIND WK 103k-Torsion 10x1 mm2 13.0 96.0 220.0 17
704965 HELUWIND WK 103k-Torsion 12x1 mm2 13.2 116.0 240.0 17
704966 HELUWIND WK 103k-Torsion 14x1 mm2 13.4 135.0 280.0 17
704967 HELUWIND WK 103k-Torsion 16x1 mm2 14.1 154.0 310.0 17
704968 HELUWIND WK 103k-Torsion 18x1 mm2 15.1 173.0 360.0 17
704969 HELUWIND WK 103k-Torsion 21x1 mm2 16.7 202.0 410.0 17
704970 HELUWIND WK 103k-Torsion 25x1 mm2 18.4 240.0 500.0 17
704971 HELUWIND WK 103k-Torsion 32x1 mm2 19.8 308.0 590.0 17
704972 HELUWIND WK 103k-Torsion 36x1 mm2 20.6 346.0 700.0 17
704973 HELUWIND WK 103k-Torsion 40x1 mm2 22.4 384.0 800.0 17
704974 HELUWIND WK 103k-Torsion 41x1 mm2 22.4 394.0 810.0 17
704975 HELUWIND WK 103k-Torsion 50x1 mm2 24.6 480.0 980.0 17
704976 HELUWIND WK 103k-Torsion 2x1.5 mm2 7.9 29.0 75.0 16
704977 HELUWIND WK 103k-Torsion 3x1.5 mm2 8.0 44.0 110.0 16
704978 HELUWIND WK 103k-Torsion 4x1.5 mm2 8.9 58.0 131.0 16
704979 HELUWIND WK 103k-Torsion 5x1.5 mm2 9.7 72.0 165.0 16
704980 HELUWIND WK 103k-Torsion 7x1.5 mm2

12.0

 101.0 210.0 16
704981 HELUWIND WK 103k-Torsion 10x1.5 mm2 13.1 144.0 270.0 16
704982 HELUWIND WK 103k-Torsion 12x1.5 mm2 14.3 173.0 360.0 16
704983 HELUWIND WK 103k-Torsion 14x1.5 mm2 14.9 202.0 420.0 16
704984 HELUWIND WK 103k-Torsion 16x1.5 mm2 15.7 231.0 450.0 16
704985 HELUWIND WK 103k-Torsion 18x1.5 mm2 16.8 260.0 510.0 16
704986 HELUWIND WK 103k-Torsion 21x1.5 mm2 17.8 303.0 590.0 16
704987 HELUWIND WK 103k-Torsion 25x1.5 mm2 20.6 360.0 700.0 16
704988 HELUWIND WK 103k-Torsion 32x1.5 mm2 22.2 460.0 900.0 16
704989 HELUWIND WK 103k-Torsion 36x1.5 mm2 23.1 519.0 980.0 16
704990 HELUWIND WK 103k-Torsion 40x1.5 mm2 25.0 576.0 1030.0 16
704991 HELUWIND WK 103k-Torsion 41x1.5 mm2 25.0 591.0 1050.0 16
704992 HELUWIND WK 103k-Torsion 50x1.5 mm2 27.7 720.0 1200.0 16
704993 HELUWIND WK 103k-Torsion 3x2.5 mm2 8.9 72.0 151.0 14
704994 HELUWIND WK 103k-Torsion 4x2.5 mm2 9.7 96.0 230.0 14
704995 HELUWIND WK 103k-Torsion 5x2.5 mm2 10.9 120.0 250.0 14
704996 HELUWIND WK 103k-Torsion 7x2.5 mm2 14.4 168.0 360.0 14
704997 HELUWIND WK 103k-Torsion 10x2.5 mm2 15.8 240.0 480.0 14
704998 HELUWIND WK 103k-Torsion 12x2.5 mm2 16.3 288.0 580.0 14
705038 HELUWIND WK 103k-Torsion 12x2.5 mm2 16.3 288.0 580.0 14
704999 HELUWIND WK 103k-Torsion 3x4 mm2 10.8 116.0 250.0 12
705000 HELUWIND WK 103k-Torsion 4x4 mm2 12.0 154.0 270.0 12
704001 HELUWIND WK 103k-Torsion 5x4 mm2 13.6 192.0 370.0 12
705002 HELUWIND WK 103k-Torsion 7x4 mm2 15.9 269.0 530.0 12
705003 HELUWIND WK 103k-Torsion 12x4 mm2 19.6 461.0 740.0 12
705004 HELUWIND WK 103k-Torsion 3x6 mm2 13.1 173.0 340.0 10
704005 HELUWIND WK 103k-Torsion 4x6 mm2 14.6 231.0 460.0 10
705006 HELUWIND WK 103k-Torsion 5x6 mm2 16.3 288.0 550.0 10
704007 HELUWIND WK 103k-Torsion 7x6 mm2 19.6 404.0 780.0 10
705008 HELUWIND WK 103k-Torsion 4x10 mm2 17.4 384.0 670.0 8
705009 HELUWIND WK 103k-Torsion 5x10 mm2 20.1 480.0 870.0 8
705010 HELUWIND WK 103k-Torsion 7x10 mm2 23.5 672.0 1150.0 8
705011 HELUWIND WK 103k-Torsion 4x16 mm2 20.7 615.0 1000.0 6
705012 HELUWIND WK 103k-Torsion 5x16 mm2 25.4 768.0 1250.0 6
705013 HELUWIND WK 103k-Torsion 4x25 mm2 25.2 960.0 1580.0 4
705014 HELUWIND WK 103k-Torsion 5x25 mm2 28.2 1200.0 1900.0 4
705016 HELUWIND WK 103k-Torsion 4x35 mm2 31.4 1344.0 2100.0 2
705017 HELUWIND WK 103k-Torsion 5x35 mm2 35.4 1680.0 2600.0 2
705018 HELUWIND WK 103k-Torsion 4x50 mm2 36.7 1920.0 2800.0 1
705015 HELUWIND WK 103k-Torsion 1x35 mm2 12.9 336.0 460.0 2
705019 HELUWIND WK 103k-Torsion 1x70 mm2 17.9 672.0 880.0 2/0
705020 HELUWIND WK 103k-Torsion 1x95 mm2 21.9 912.0 1230.0 3/0
705021 HELUWIND WK 103k-Torsion 1x120 mm2 23.1 1152.0 1540.0 4/0
705022 HELUWIND WK 103k-Torsion 1x150 mm2 27.2 1440.0 1870.0 300
705023 HELUWIND WK 103k-Torsion 1x185 mm2 29.4 1776.0 2300.0 350
705024 HELUWIND WK 103k-Torsion 1x240 mm2 31.2 2304.0 2970.0 500
705025 HELUWIND WK 103k-Torsion 1x300 mm2 35.0 2880.0 3730.0 600
705026 HELUWIND WK 103k-Torsion 1x400 mm2 39.3 3840.0 4500.0 750
Technical Data Helukabel
  • Temperature Range
     Flexing
    -40°C to +80°C (-40°F to +176)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    According to VDE U0/U 0.6/1 kV
    According to UL 600 V, (1000V in preparation)
  • Test voltage, 50 Hz
    3000 V
  • Minimum Bending Radius
     10x cable Ø
  • Torsion Application
     +/- 140° per 1m for unshielded types
  • Approvals
    UL style 10107 to 400 mm2 Single Conductor
    UL style 2570 Multi Conductor
    cRUus, CE approved
  • Flame Test
     FT1
Approvals
RoHSUL CSA CE VDE
Cable Construction
  • Special bare stranded copper wire, acc. to DIN VDE 0295
  • Special insulation PVC flexible at low temperatures
  • Conductor colors, black with numbers + gnye
  • Special jacket compound flexible at low temperatures
  • Jacket color: Black
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • UV-resistant
  • RoHS approved
  • Multiclimatical app.
  • Torsion tested
  • Flame retardant
  • Oil resistant
  • Recyclable
  • Easy to tailor
Note
  • The HELUWIND WK 103 series was specifically designed for use in wind turbines. We supply the leading wind turbine manufacturers with our cables.
  • The product conforms to the EC Low-Voltage Directive 73/23/EEC or 93/68/EEC.
Cable Accessories
  • Coming Soon!
