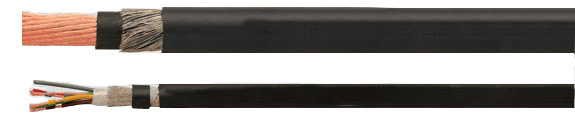

Helukabel Special Cables: HELUWIND WK 103k EMV D-Torsion
Wind Power Cable - Shielded, UV-Resistant, Single & Multi Conductor, UL & CSA Style 10107/2570, FT1

Hi-Tech Controls, Inc, HELUKABEL wires and cables

Heluwind WK 103k EMV D-Torsion Wind Power Cable, Heluwind, Helu wind, Heluwind WK 103k EMV D-Torsion, Heluwind WK 103k, Heluwind WK 103, Heluwind 103, UV-Resistant, UV Resistant, Single Conductor, Multi Conductor, MultiConductor, UL, CSA Style, FT1, 704880, 704883, 704886, 704890, 704891, 704892, 704893, 704895, 704896, 704898, 704897, 704900, 704903, 704904, 704906, 704908, 704909, 704914, 704915, 704916, 704918, 704920, 704922, 704923, 704924, 704925, 704926, 704927, 705037, 704928, 704929, 704930, 704931, 704932, 704933, 704934, 704935, 704936, 704937, 704938, 78177, 74006, 78178, 78179, 78180, 703328, 704939, 704877, 704878, 704879, 704881, 704882, 704884, 704885, 704887, 704888, 704889, 704894, 704899, 704901, 704902, 704905, 704907, 704910, 704911, 704912, 704913, 704917, 704919, 704921, Hi-Tech Controls, Helukabel
AWG Selection
22
 22
20
 20
18
 18
16
 16 14 14 12 12 10 10 8 8 6 6
4 4 1 1 2/0 2/0 3/0 3/0 4/0 4/0 300 300 350 350 500 500 600 600

HELUWIND WK 103k EMV D-Torsion (Flexible at low temperatures, JZ)
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG / MCM
704880 HELUWIND WK 103k EMV D-Torsion 4x0.34 mm2 7.7 32.0 91.0 22
704883 HELUWIND WK 103k EMV D-Torsion 4x0.5 mm2 8.0 37.8 105.0 20
704886 HELUWIND WK 103k EMV D-Torsion 6x0.5 mm2 9.2 53.6 130.0 20
704890 HELUWIND WK 103k EMV D-Torsion 10x0.5 mm2 11.4 73.0 170.0 20
704891 HELUWIND WK 103k EMV D-Torsion 12x0.5 mm2 11.7 88.4 220.0 20
704892 HELUWIND WK 103k EMV D-Torsion 3x0.75 mm2 7.7 43.2 97.0 18
704893 HELUWIND WK 103k EMV D-Torsion 4x0.75 mm2 8.3 52.6 122.0 18
704895 HELUWIND WK 103k EMV D-Torsion 5x0.75 mm2 9.0 63.0 145.0 18
704896 HELUWIND WK 103k EMV D-Torsion 7x0.75 mm2 9.7 82.8 200.0 18
704898 HELUWIND WK 103k EMV D-Torsion 4x2x0.75 mm2 12.7 91.0 211.0 18
704897 HELUWIND WK 103k EMV D-Torsion 8x0.75 mm2 10.7 93.0 220.0 18
704900 HELUWIND WK 103k EMV D-Torsion 12x0.75 mm2 12.2 126.9 257.5 18
704903 HELUWIND WK 103k EMV D-Torsion 18x0.75 mm2 14.4 179.0 400.0 18
704904 HELUWIND WK 103k EMV D-Torsion 12x2x0.75 mm2 17.6 223.0 520.0 18
704906 HELUWIND WK 103k EMV D-Torsion 25x0.75 mm2 17.8 256.0 552.0 18
704908 HELUWIND WK 103k EMV D-Torsion 41x0.75 mm2 21.2 370.8 795.0 18
704909 HELUWIND WK 103k EMV D-Torsion 50x0.75 mm2 23.5 441.0 900.0 18
704914 HELUWIND WK 103k EMV D-Torsion 2x1.5 mm2 6.8 44.0 86.0 16
704915 HELUWIND WK 103k EMV D-Torsion 3x1.5 mm2 8.8 68.0 133.0 16
704916 HELUWIND WK 103k EMV D-Torsion 4x1.5 mm2 9.4 87.8 159.0 16
704918 HELUWIND WK 103k EMV D-Torsion 5x1.5 mm2 10.3 104.0 195.0 16
704920 HELUWIND WK 103k EMV D-Torsion 7x1.5 mm2 11.9 140.8 247.0 16
704922 HELUWIND WK 103k EMV D-Torsion 12x1.5 mm2 14.7 226.8 410.0 16
704923 HELUWIND WK 103k EMV D-Torsion 3x2.5 mm2 10.4 104.4 210.0 14
704924 HELUWIND WK 103k EMV D-Torsion 4x2.5 mm2 11.2 132.7 264.0 14
704925 HELUWIND WK 103k EMV D-Torsion 5x2.5 mm2 12.3 161.0 288.0 14
704926 HELUWIND WK 103k EMV D-Torsion 7x2.5 mm2 14.8 223.1 411.0 14
704927 HELUWIND WK 103k EMV D-Torsion 12x2.5 mm2 18.2 350.6 638.0 14
705037 HELUWIND WK 103k EMV D-Torsion 12x2.5 mm2 18.2 350.6 638.0 14
704928 HELUWIND WK 103k EMV D-Torsion 5x4 mm2 13.6 237.4 382.0 12
704929 HELUWIND WK 103k EMV D-Torsion 7x4 mm2 16.3 325.0 582.0 12
704930 HELUWIND WK 103k EMV D-Torsion 12x4 mm2 20.0 532.1 806.0 12
704931 HELUWIND WK 103k EMV D-Torsion 5x6 mm2 17.4 341.0 640.0 10
704932 HELUWIND WK 103k EMV D-Torsion 4x10 mm2 17.8 445.6 727.0 8
704933 HELUWIND WK 103k EMV D-Torsion 5x10 mm2 19.8 550.2 935.0 8
704934 HELUWIND WK 103k EMV D-Torsion 4x16 mm2 21.1 692.2 1072.0 6
704935 HELUWIND WK 103k EMV D-Torsion 5x16 mm2 24.4 854.4 1330.0 6
704936 HELUWIND WK 103k EMV D-Torsion 4x25 mm2 26.0 1059.0 1664.0 4
704937 HELUWIND WK 103k EMV D-Torsion 5x25 mm2 28.6 1327.0 2014.0 4
704938 HELUWIND WK 103k EMV D-Torsion 4x50 mm2 37.0 2080.0 3200.0 1
78177 HELUWIND WK 103k EMV D-Torsion 1x70 mm2 19.8 739.0 950.0 2/0
74006 HELUWIND WK 103k EMV D-Torsion 1x95 mm2 21.2 989.0 1200.0 3/0
78178 HELUWIND WK 103k EMV D-Torsion 1x120 mm2 25.0 1250.0 1400.0 4/0
78179 HELUWIND WK 103k EMV D-Torsion 1x150 mm2 28.4 1740.0 2000.0 300
78180 HELUWIND WK 103k EMV D-Torsion 1x185 mm2 30.1 1904.0 2450.0 350
703328 HELUWIND WK 103k EMV D-Torsion 1x240 mm2 32.5 2451.0 3150.0 500
704939 HELUWIND WK 103k EMV D-Torsion 1x300 mm2 39.0 3027.0 3920.0 600
to top up arrow
AWG Selection
24 24 22 22 20 20 18 18 17 17 16 16

(Flexible at low temperatures, DIN 47100)
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper weight
kg/km 		Weight
ca. kg/km 		AWG / MCM
704877 HELUWIND WK 103k EMV D-Torsion 2x2x0.25 mm2 8.9 27.0 90.0 24
704878 HELUWIND WK 103k EMV D-Torsion 4x2x0.25 mm2 9.9 39.0 115.0 24
704879 HELUWIND WK 103k EMV D-Torsion 5x2x0.25 mm2 11.1 46.0 130.0 24
704881 HELUWIND WK 103k EMV D-Torsion 2x2x0.34 mm2 9.6 35.0 110.0 22
704882 HELUWIND WK 103k EMV D-Torsion 4x2x0.34 mm2 11.0 47.0 130.0 22
704884 HELUWIND WK 103k EMV D-Torsion 2x2x0.5 mm2 9.8 39.0 115.0 20
704885 HELUWIND WK 103k EMV D-Torsion 4x0.5 mm2 8.0 37.8 105.0 20
704887 HELUWIND WK 103k EMV D-Torsion 6x0.5 mm2 9.2 53.6 130.0 20
704888 HELUWIND WK 103k EMV D-Torsion 4x(2x0.5) mm2 11.5 69.2 190.0 20
704889 HELUWIND WK 103k EMV D-Torsion 4x2x0.5 mm2 11.3 42.0 150.0 20
704894 HELUWIND WK 103k EMV D-Torsion 2x2x0.75 mm2 10.4 54.0 130.0 18
704899 HELUWIND WK 103k EMV D-Torsion 4x2x0.75 mm2 12.7 91.0 211.0 18
704901 HELUWIND WK 103k EMV D-Torsion 12x0.75 mm2 12.2 126.9 257.5 18
704902 HELUWIND WK 103k EMV D-Torsion 8x2x0.75 mm2 17.1 170.0 410.0 18
704905 HELUWIND WK 103k EMV D-Torsion 12x2x0.75 mm2 17.6 223.0 520.0 18
704907 HELUWIND WK 103k EMV D-Torsion 32x0.75 mm2 18.8 294.0 610.0 18
704910 HELUWIND WK 103k EMV D-Torsion 4x1.0 mm2 8.7 56.0 110.0 17
704911 HELUWIND WK 103k EMV D-Torsion 6x1.0 mm2 10.2 82.0 150.0 17
704912 HELUWIND WK 103k EMV D-Torsion 8x1.0 mm2 11.7 106.0 210.0 17
704913 HELUWIND WK 103k EMV D-Torsion 12x1.0 mm2 13.3 150.0 280.0 17
704917 HELUWIND WK 103k EMV D-Torsion 2x2x1.5 mm2 12.1 90.0 180.0 16
704919 HELUWIND WK 103k EMV D-Torsion 3x2x1.5 mm2 14.0 120.0 235.0 16
704921 HELUWIND WK 103k EMV D-Torsion 4x2x1.5 mm2 14.6 150.0 210.0 16
to top up arrow
Technical Data Helukabel
  • Temperature Range
     Flexing
    -40°C to +80°C (-40°F to +176)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    According to VDE U0/U 0.6/1 kV
    According to UL 600 V, (1000V in preparation)
  • Test voltage, 50 Hz
    3000 V
  • Minimum Bending Radius
     10x cable Ø
  • Torsion Application
     +/- 90° per 1m for shielded types
  • Approvals
    UL style 10107 to 400 mm2 Single Conductor
    UL style 2570 Multi Conductor
    cRUus, CE approved
  • Flame Test
     FT1
Approvals
RoHSUL CSA CE
Cable Construction
  • Special bare stranded copper wire, acc. to DIN VDE 0295
  • Special insulation PVC flexible at low temperatures
  • Conductor colors, black with numbers + gnye
  • Special jacket compound flexible at low temperatures
  • Jacket color: Black
Application
The power of wind, sun and water are alternative energy sources which are always available and inexhaustible. In recent years, many powerful wind power systems have been built worldwide. For cabling in these systems, we can deliver specially manufactured cable for high power handling and control wiring.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • UV-resistant
  • RoHS approved
  • Multiclimatical app.
  • Torsion tested
  • Flame retardant
  • Oil resistant
  • Recyclable
  • Easy to tailor
Note
  • The HELUWIND WK 103 series was specifically designed for use in wind turbines. We supply the leading wind turbine manufacturers with our cables.
  • The product conforms to the EC Low-Voltage Directive 73/23/EEC or 93/68/EEC.
Cable Accessories
  • Coming Soon!
