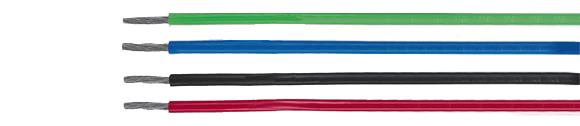

Silicone
Single Conductor Cable, 600 V, +200°C/+392°F, Halogen-Free
Hi-Tech Controls, Inc, HELUKABEL wires and cables
AWG
Conductor
construction
Conductor
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
Helukabel Part-No.
black
blue
brown
red
white
gray
violet
green
24
1 x 0.5
2.1
1.9
6.3
47021
47022
47023
47024
47025
47026
47027
47076
22
3 x 0.4
2.4
3.6
9.2
47028
47029
47030
47031
47032
47033
47034
47071
20
5 x 0.4
2.6
6.0
12.3
47035
47036
47037
47038
47039
47040
47041
47072
18
7 x 0.4
2.8
8.6
15.5
47042
47043
47044
47045
47046
47047
47048
47073
16
11 x 0.4
3.0
13.3
21.0
47049
47050
47051
47052
47053
47054
47055
47074
14
17 x 0.4
3.4
20.5
29.7
47056
47057
47058
47059
47060
47061
47062
47075
12
27
x 0.4
3.8
32.6
43.2
47063
47064
47065
47066
47067
47068
47069
47070
Technical
Data
Helukabel
Silicon single conductors according
UL subj. 758 style 3135
Temperature Range -60°C to +200°C (-76°F to +392°F)
Nominal Voltage 600
V
Test Voltage 2000
V
Breakdown Voltage min.
5000 V
Minimum Bending Radius 15x cable Ø
Approvals
Cable
Construction
Tinned copper conductors
Stranded see table above
Silicon conductor insulation
Conductor colors see above
Application
UL-approved
single conductors for use in high temperature
areas. They are used mainly in
the steel producing industries,
in aviation industries as well
as in ship building, cement, glass
and ceramic factories.
AWM = Appliance Wiring Material
For internal wiring for electrical
equipment and control apparatus e.g.
electronic assembly components. =
The product
is conformed
with
the EC
Low-Voltage
Directive
73/23/EEC
and 93/68/EEC.
Properties
Halogen-free according to DIN VDE
0482 part 267/ DIN EN 50267-2-1/
IEC 60754-1 (equivalent DIN VDE
0472 part 815)
Resistant to high molecular oils, fats
from vegetables and animals, alcohols,
plasticizers and clophenes, diluted
acids, lye and salt dissolution,
oxidation substances, tropical
influences and weather, lake water,
oxygen
