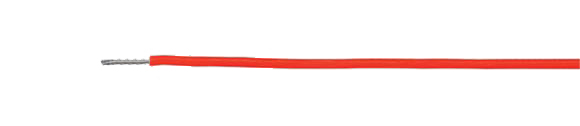

Helukabel SiF/SiFF Silicone Halogen-Free Cable

Helukabel Part-No.	Description & Cross-sec. mm²	Outer Diameter mm	Copper Weight kg/km	Weight ca. kg/km	AWG
232__	SiF 0.25	1.9	2.4	5.5	24
233__	SiF 0.5	2.1	4.8	8.6	20
234__	SiF 0.75	2.4	7.2	11.8	18
235__	SiF 1.0	2.5	9.6	13.5	17
236__	SiF 1.5	2.8	14.4	18.5	16
237__	SiF 2.5	3.4	24.0	30.0	14
238__	SiF 4.0	4.2	38.0	47.3	12
239__	SiF 6.0	5.2	58.0	71.1	10
246__	SiF 10.0	7.0	96.0	119.4	8
247__	SiF 16.0	8.4	154.0	187.7	6
248__	SiF 25.0	10.3	240.0	289.6	4
23953	SiF 35.0	11.6	336.0	398.3	2
23954	SiF 50.0	13.9	480.0	559.7	1
23955	SiF 70.0	16.0	672.0	765.8	2/0
23956	SiF 95.0	18.4	912.0	1031.5	3/0
23957	SiF 120.0	20.0	1152.0	1284.6	4/0
23958	SiF 150.0	23.0	1440.0	1563.4	300kcmil
23959	SiF 185.0	24.9	1776.0	1858.2	350 kcmil

Helukabel Part-No.	Description & Cross-sec. mm²	Outer Diameter mm	Copper Weight kg/km	Weight ca. kg/km	AWG
451__	SiFF 0.25	1.9	2.4	6.0	24
452__	SiFF 0.5	2.1	4.8	10.0	20
453__	SiFF 0.75	2.5	7.2	13.0	18
454__	SiFF 1.0	2.7	9.6	15.0	17
455__	SiFF 1.5	3.0	14.4	19.0	16
456__	SiFF 2.5	3.8	24.0	32.0	14
457__	SiFF 4.0	4.6	38.0	50.0	12
458__	SiFF 6.0	5.7	58.0	73.0	10
459__	SiFF 10.0	7.6	96.0	125.0	8

Color Code

00 = green
01 = black
02 = red
03 = blue
04 = brown

05 = white
06 = gray
07 = violet
08 = yellow
09 = orange

10 = transparent
11 = pink
12 = beige
13 = two-colored

Technical Data

Helukabel

Special silicone single conductor cable with higher heat-resistance range adapted to DIN VDE 0250 part 1 and part 502
Temperature Range
-60°C to +180°C (-76°F to +356°F)
(up to +220°C/+482°F for short time)
Temperature Limit at the Conductor
In operation +180°C/+356°F

Nominal Voltage
VDE U₀/U 300/500 V
Test Voltage 2000 V
Breakdown Voltage min. 5000 V
Minimum Bending Radius
15x cable Ø
Radiation Resistance
Up to 20x10⁶ cJ/kg (up to 20 Mrad)

Approvals

Cable Construction

Type SiF

Tinned copper conductors
≥0.5 mm² to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
for 0.25 mm² = 14x0.15 mm
Silicone conductor insulation

Type SiFF

as SiF but with high flexible copper strands (see technical information)
Strand make-up
0.25 to 1.0 mm² - cl. 6 col. 7
(single wire Ø 0.05 mm)
1.5 to 10 mm² - cl. 6 col. 6
(single wire Ø 0.07 mm)

Application

Special cables for use in high or low temperature areas. They are used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glass and ceramic factories, especially suited for use in power stations (halogen-free).

= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

Advantages: High ignition or flash point
Resistant to high molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen
Halogen-free according to DIN VDE 0482 part 267 / DIN EN 50267-2-2 / IEC 60754-2 (equivalent DIN VDE 0472 part 813)
Behavior in fire no flame propagation test according to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding +90°C/+194°F.
