Helukabel Heat-Resistant Cable: HELUTHERM® 1200/1200-ES
Halogen-Free, High Grade Steel Braiding

Hi-Tech Controls, Inc, HELUKABEL wires and cables

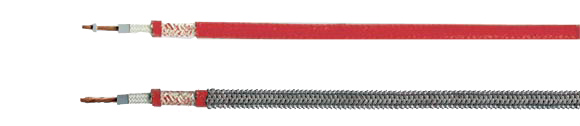

HELUTHERM® 1200/1200-ES halogen-free, high grade steel braiding, RoHS Compliant, RoHS Approved, Hi-Tech Controls, Helukabel, Heat Resistant / Compensating Cables
HELUTHERM® 1200
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Conductor Construction Outer
Ø
mm		 Linear Resistance at 20°C Ohm/km Max. permissible current carrying capacity at +400°C (A) Weight ca. kg/km AWG
51729 HELUTHERM 1200 1x0.5 7x0.3 2.3 175.0 2.0 12.3 20
51730 HELUTHERM 1200 1x0.75 11x0.3 2.6 115.0 3.0 16.1 18
51731 HELUTHERM 1200 1x1 14x0.3 2.8 88.0 4.0 19.8 17
51732 HELUTHERM 1200 1x1.5 21x0.3 3.2 59.0 5.0 27.5 16
51733 HELUTHERM 1200 1x2.5 35x0.3 3.7 35.0 7.0 39.8 14
51734 HELUTHERM 1200 1x4 56x0.3 4.5 22.0 9.0 58.0 12
51735 HELUTHERM 1200 1x6 84x0.3 5.9 14.6 12.0 83.0 10
51736 HELUTHERM 1200 1x10 140x0.3 8.0 8.8 14.0 160.0 8
51737 HELUTHERM 1200 1x16 228x0.3 9.0 5.5 20.0 244.0 6
51738 HELUTHERM 1200 1x25 354x0.3 10.6 3.5 24.0 376.0 4
51739 HELUTHERM 1200 1x35 495x0.3 13.6 2.5 40.0 495.0 2
51740 HELUTHERM 1200 1x50 707x0.3 15.4 1.5 48.0 654.0 1
HELUTHERM® 1200-ES
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Conductor Construction Outer
Ø
mm
Linear Resistance at 20°C Ohm/km Max. permissible current carrying capacity at +400°C (A) Weight ca. kg/km AWG
50635 HELUTHERM 1200-ES 1x0.5 7x0.3 3.6 175.0 2.0 26.0 20
50636 HELUTHERM 1200-ES 1x0.75 11x0.3 3.8 115.0 3.0 34.0 18
50637 HELUTHERM 1200-ES 1x1 14x0.3 4.2 88.0 4.0 42.0 17
50638 HELUTHERM 1200-ES 1x1.5 21x0.3 4.7 59.0 5.0 53.0 16
50639 HELUTHERM 1200-ES 1x2.5 35x0.3 5.0 35.0 7.0 64.0 14
50640 HELUTHERM 1200-ES 1x4 56x0.3 6.0 22.0 9.0 87.0 12
50641 HELUTHERM 1200-ES 1x6 84x0.3 7.5 14.6 12.0 120.0 10
50642 HELUTHERM 1200-ES 1x10 140x0.3 9.7 8.8 14.0 218.0 8
50643 HELUTHERM 1200-ES 1x16 228x0.3 10.9 5.5 20.0 314.0 6
50644 HELUTHERM 1200-ES 1x25 354x0.3 12.9 3.5 24.0 453.0 4
50645 HELUTHERM 1200-ES 1x35 495x0.3 15.7 2.5 40.0 593.0 2
50646 HELUTHERM 1200-ES 1x50 707x0.3 16.7 1.5 48.0 760.0 1
Technical Data Helukabel
  • Special conductor insulation for high temperatures
  • Temperature Range
    -170°C to +1000°C (-274°F TO +1832°F)
  • Permissible Temperature
    +800°C to +1100°C (-1472°F TO +2012°F)
    (up to +1400°C/+2552°F for short time)
  • Nominal Voltage 500 V
  • Test Voltage 2000 V
  • Minimum Bending Radius
    Approx. 5x cable Ø
Approvals
RoHSCE
Cable Construction

HELUTHERM® 1200

  • Stranded nickel conductor
  • Double-insulated glass-fiber braiding, impregnated with silicone
  • Braiding of special mineral fibers and additional impregnation with silicone
  • Jacket color: Auburn
HELUTHERM® 1200-ES
  • Like above
  • Additional braided high-grade steel, coverage approx. 80%
Application
HELUTHERM® 1200 cables are used in applications where extremely high connecting and ambient temperatures occur, e.g. in iron and steel works, rolling mills, foundries, glass and ceramic plants, in power construction as well as for wiring in electrical heating equipment, furnaces and in thermoplastic forming. Good characteristics in the presence of moisture and chemical effects.
HELUTHERM® 1200-ES
The robust braiding of high-grade steel protects the cable from aggressive atmospheres and mechanical stresses. The high-grade braiding also gives this cable an attractive appearance. The braided shield can also be used for grounding.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Asbestos and cadmium-free
Note
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
