Helukabel Data, Network & BUS Cable: Twinaxial Cable
IBM P/N 7 362 211
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part
Number (Indoor):80072
Helukabel Part
Number (Outdoor):80073
Electrical
Data
Characteristic Impedance:
105
Ohm
Mutual
Capacitance:
53.0 nF/km
nom.
Rel. Propagation
Velocity:
66%
Typical
Values
Frequency (MHz)
100
Attenuation (dB/10m)
14.0
Technical
Data
Weight:
88.0
kg/km
Min. Bending
Radius for Laying:
125 mm
Operating
Temperature Range, min.:
-10°C/+14°F
Operating
Temperature Range, max.:
+80°C/+176°F
Copper Value:
51.0 kg/km
Technical
Data
Helukabel
Electrical
Data
Characteristic Impedance:
105
Ohm
Mutual
Capacitance:
53.0 nF/km
nom.
Rel. Propagation
Velocity:
66%
Typical
Values
Frequency (MHz)
100
Attenuation (dB/10m)
14.0
Technical
Data
Weight:
88.0
kg/km
Min. Bending
Radius for Laying:
125 mm
Operating
Temperature Range, min.:
-10°C/+14°F
Operating
Temperature Range, max.:
+80°C/+176°F
Copper Value:
51.0 kg/km
Approvals

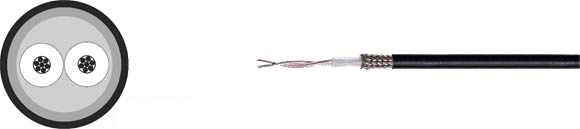

Cable
Construction
Twinaxial
Cable Indoor or Outdoor
Inner
Conductor Diameter:
1xAWG 20, Copper, bare + 1xAWG 20
Conductor Material:
Copper, tinned
Conductor Insulation:
PE
Conductor Colors:
transparent
Shield over
Stranding Element:
Solid PE dielectric
Shield 1 over
Stranding:
-
Shield 2 over
Stranding:
Copper braid,
tinned
Outer Jacket
Material:
PVC / PE
Outer Cable
Diameter: 51.0
approximately
8.3 mm / 9.3 mm
Outer Jacket
Color:
Black
Application
HELUKABEL® TWINAX cables
are used in the area of the IBM computer
systems S/36, S/38 and AS400. By using a
special PE jacket, an outdoor version was
developed as well.
