camozzi Index|FRL Units|Series M & N


camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Non-Modular FRL Series M & N

Download & Save as PDF File PDF Download

Pressure Regulator Series N

Ports 1/8", 1/4" NPTF
Nipple type
The Series N pressure regulator is available with 1/4" and 1/8" NPTF ports.
Its design incorporates a self relieving diaphragm so as to allow incremental adjustments.
This compact regulator may be mounted directly on pipes or onto a console.

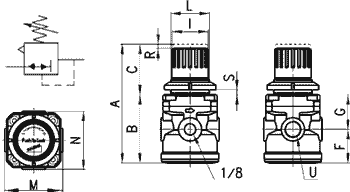

Pressure Regulator Series N Technical Drawing
Part Number A B C F G I L M N R S U (NPTF)
N1208-R00TF 3.622 2.086 1.535 1.023 1.063 1.102 M30x1.5 1.772 1.772 .118 0 - .236 1/8"
N1204-R00TF 3.622 2.086 1.535 1.023 1.063 1.102 M30x1.5 1.772 1.772 .118 0 - .236 1/4"

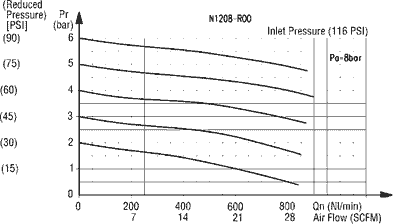

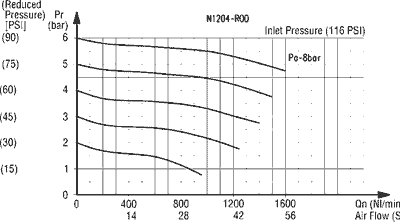

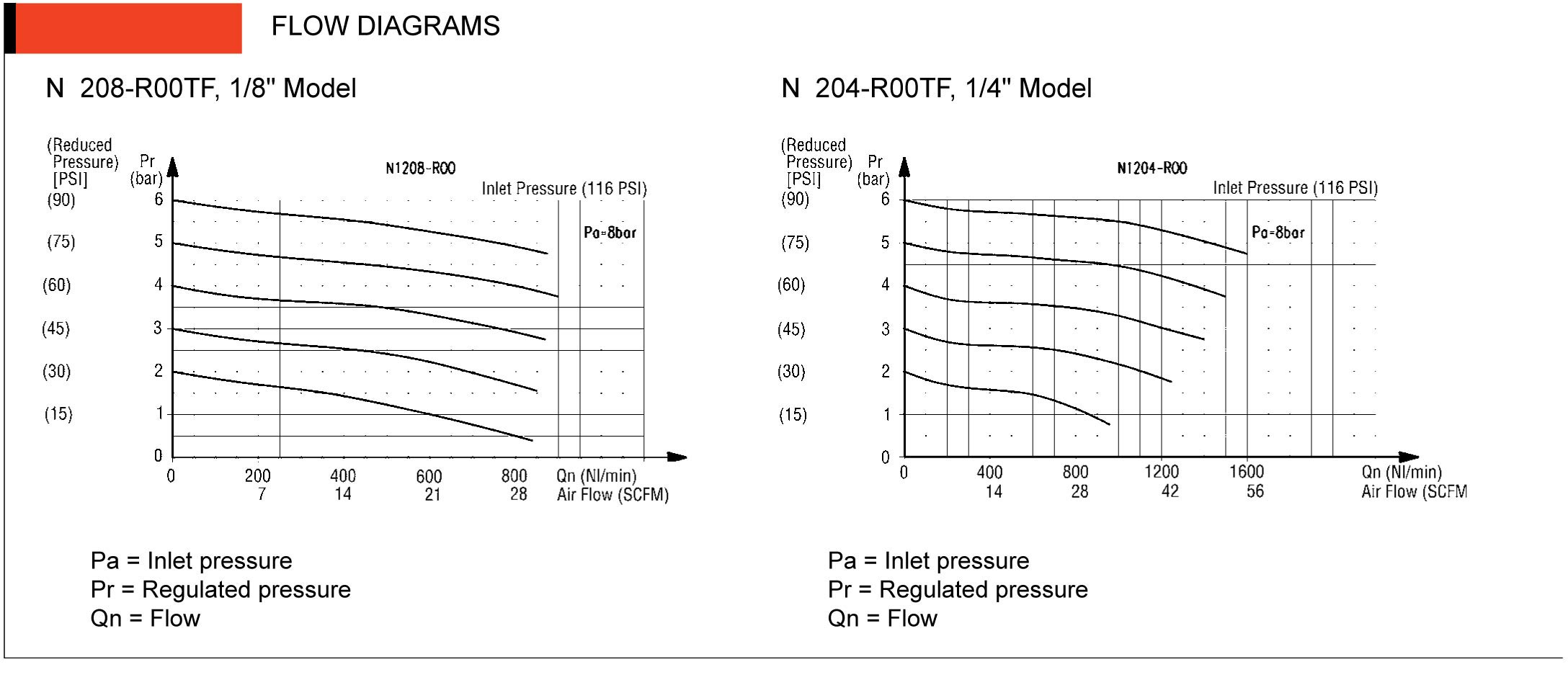

Coding Example & Flow Diagrams

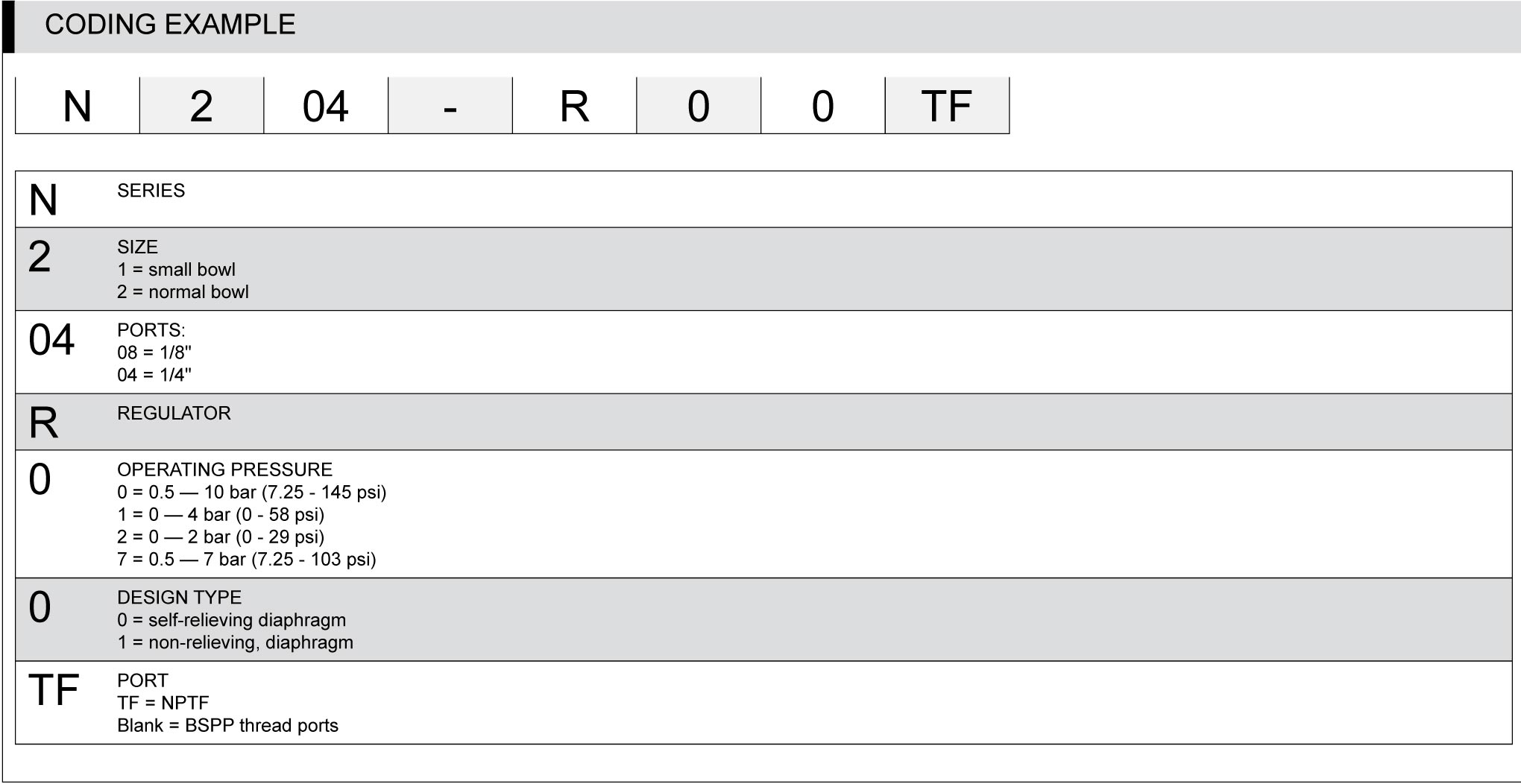

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction Diaphragm type - nipple type
Materials Nickel-Plated brass, brass body, Buna-N seals, Nylon knob, internals in brass
Threaded ports 1/8", 1/4" NPTF
Weight Kg 0.316 = 0.7 lbs
Pressure gauge port 1/8" NPTF
Type of mounting In-line or console (in any position)
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Pneumatic Data
Inlet pressure 0 - 16 bar (0 - 232 psi)
Outlet pressure 0.5 - 10 bar (7.25 - 145 psi), Optional outlet ranges offered
Nominal flow See chart
Secondary pressure relieving Standard
