FRL - Filters, Regulators and Lubricators

CAMOZZI Non-Modular FRL Series M & N

Download & Save as PDF File PDF Download

Pressure Microregulator Series M

Ports 1/8", 1/4" NPTF, Nipple type
The Series "M" pressure regulator is available with 1/8" and 1/4" NPTF ports.
Its design incorporates a relieving diaphragm so as to allow incremental adjustments as well.
Microregulators are available with optional regulation types: non-relieving, very sensitive self-relieving (through a light air leak) and VS (valve with fast draining).
The regulator with sensitive self-relieving allows a more precise regulation.
These regulators, which have very small dimensions, may be mounted directly on pipes or on a console.
Pressure Microregulator Series M
Regulator calibrated or
blocked upon request
Technical Drawing
Part Number A B C F G I L M N R S U
M008-R00TF 2.992 1.457 1.535 0.394 1.063 1.102 30x1.5 1.772 1.772 0.118 0-0.236 1/8"NPTF
M004-R00TF 2.992 1.457 1.535 0.394 1.063 1.102 30x1.5 1.772 1.772 0.118 0-0.236 1/8"NPTF

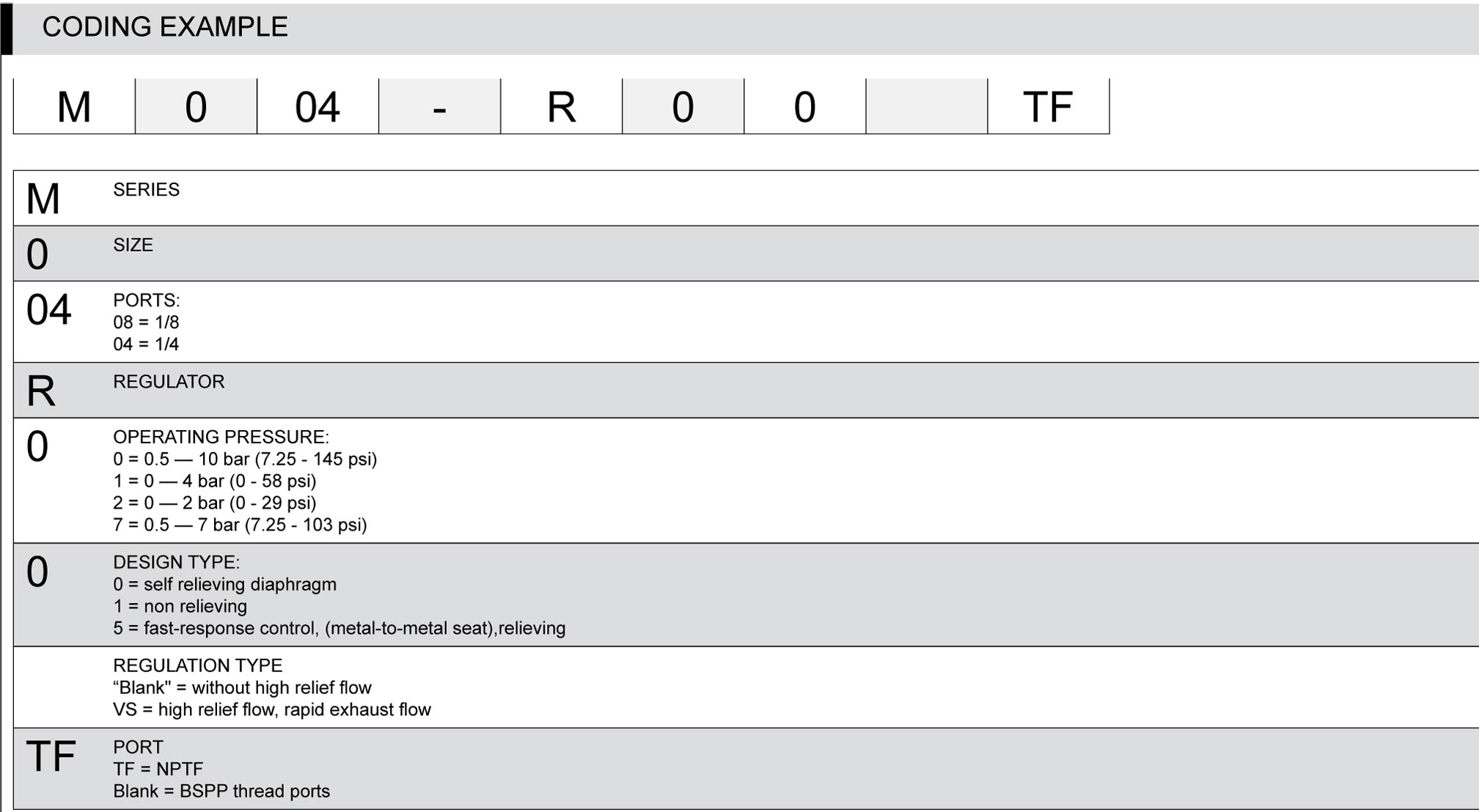

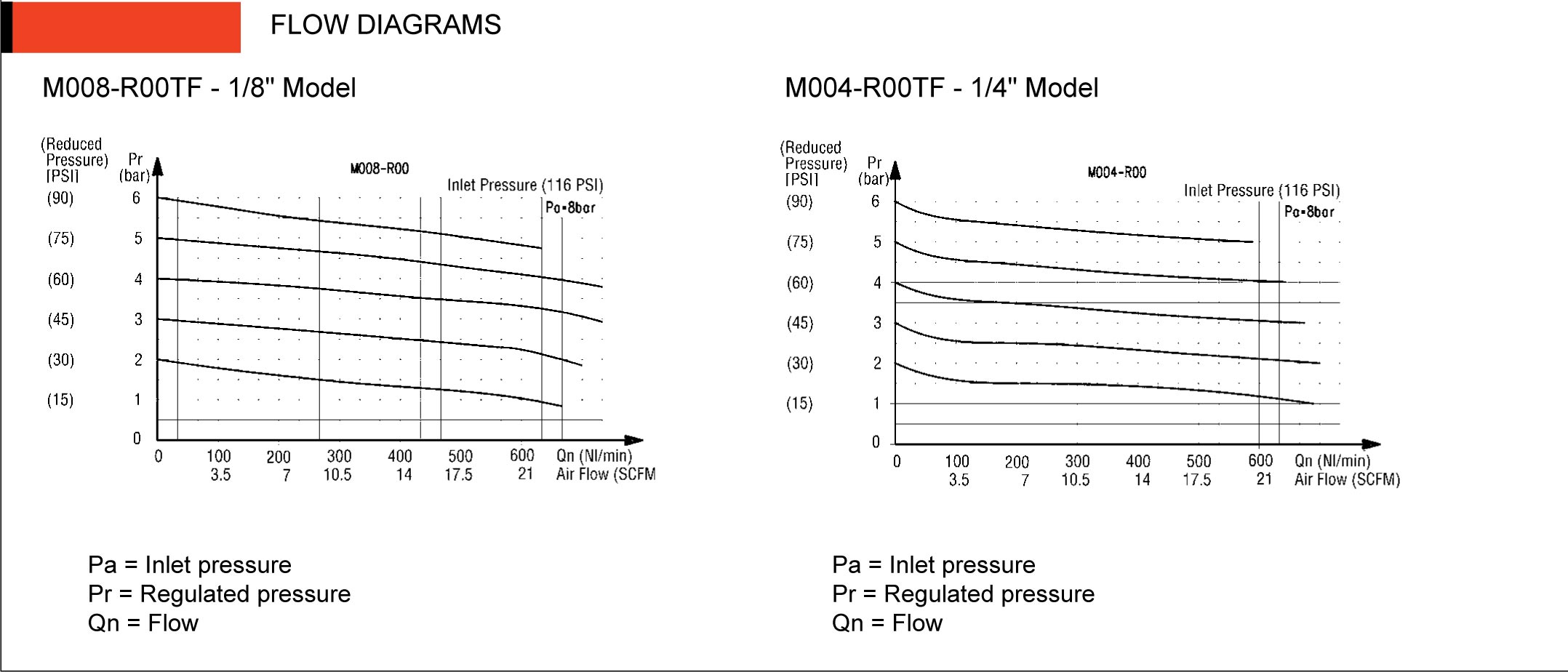

Coding Example & Flow Diagrams
Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction Diaphragm type - nipple type
Materials Nickel-Plated brass, body, Buna-N seals, Nylon knob, internals in brass
Threaded ports 1/8", 1/4" NPTF
Weight Kg 0.235 = 0.5 lbs
Pressure gauge port 1/8" NPTF
Type of mounting In-line or panel mounting (in any position)
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Pneumatic Data
Inlet pressure 0 - 16 bar (0 - 232 psi)
Outlet pressure 0.5 - 10 bar (7.25 - 145 psi), optional outlet pressure ranges offered
Nominal flow See graph
Secondary pressure relieving Standard = self relieving, non-relieving, and fast-response control relieving
