FRL - Filters, Regulators and Lubricators

CAMOZZI Non-Modular FRL Series M & N

PDF Download

Filter/Regulator Series N

Ports 1/8", 1/4" NPTF
with threaded transparent bowl, (Nylon - Grilamid)

The Series N filter/regulator is available with 1/4", 1/8" NPTF ports.
The regulator's design incorporates a self relieving diaphragm.
The filter bowl which is transparent allows easy monitoring of the condensate levels. There are four (4) total drain options available standard.

Part Number	A	B	C	D	F	G	I	L	M	N	Gauge Port O	P	R	S	Outlet Port U
N108-D00TF	6.574	3.070	1.968	1.535	3.976	1.063	1.102	M30x1.5	1.772	1.772	1/8"	1.496	.118	0-.236	1/8"
N104-D00TF	6.574	3.070	1.968	1.535	3.976	1.063	1.102	M30x1.5	1.772	1.772	1/8"	1.496	.118	0-.236	1/4"
N208-D00TF	7.519	4.016	1.968	1.535	4.921	1.063	1.102	M30x1.5	1.772	1.772	1/8"	1.496	.118	0-.236	1/8"
N204-D00TF	7.519	4.016	1.968	1.535	4.921	1.063	1.102	M30x1.5	1.772	1.772	1/8"	1.496	.118	0-.236	1/4"

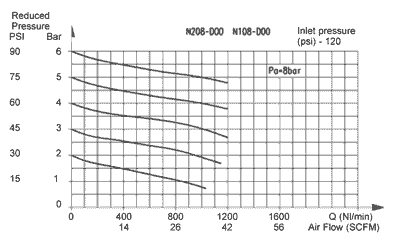

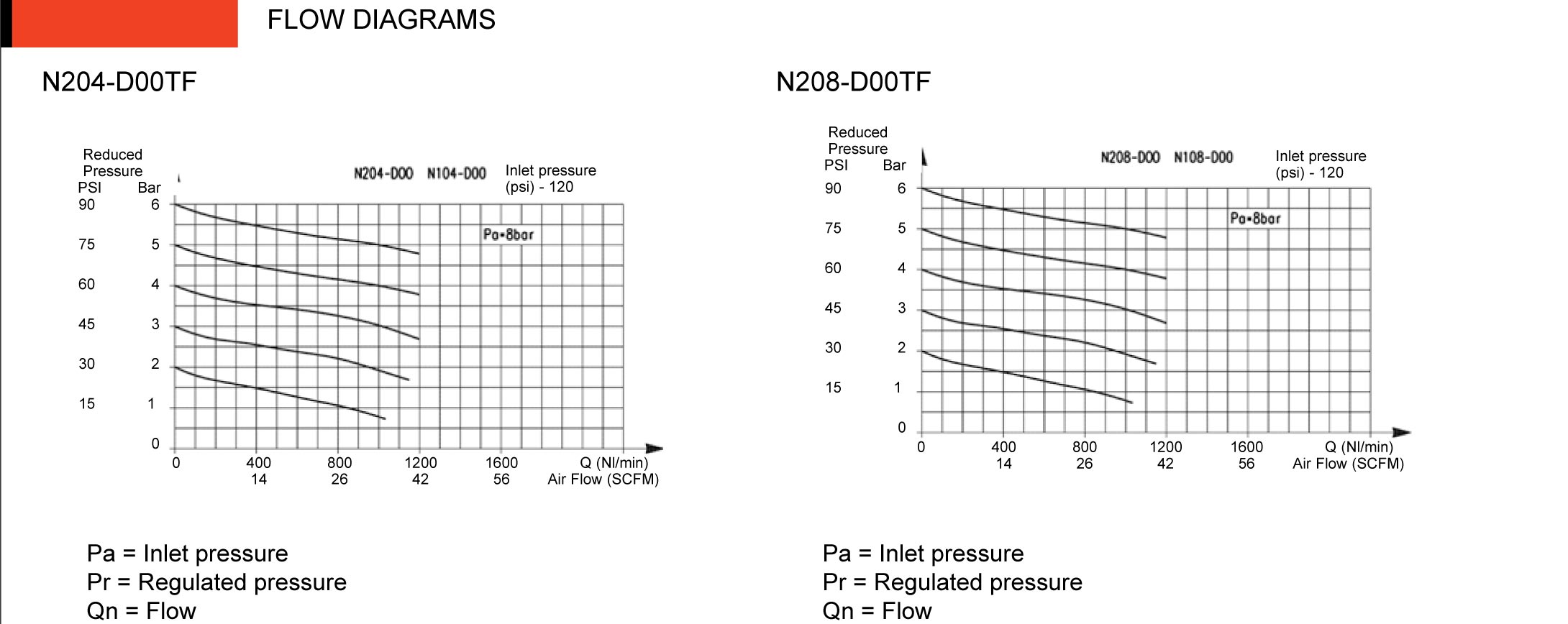

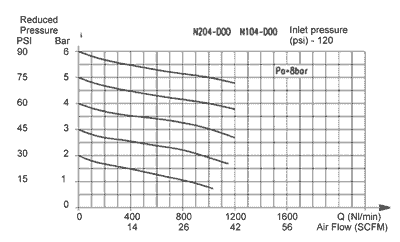

Coding Example & Flow Diagrams

(Click Image to Enlarge)

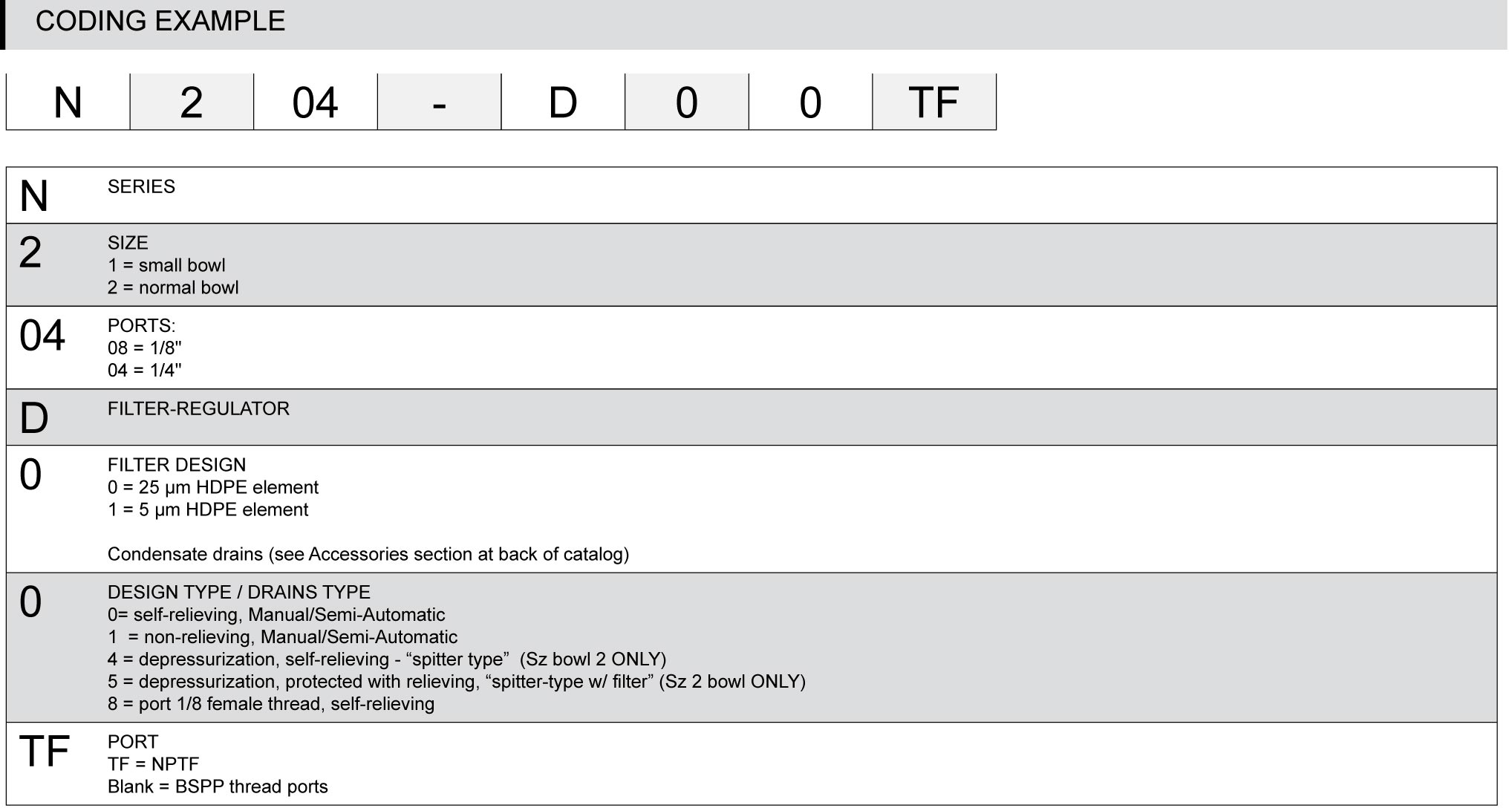

Coding Example

N	Series
2	Size 1 = Small bowl 2 = Normal bowl
04	Ports 08 = 1/8" 04 = 1/4"
D	Filter-Regulator
0	Filter Design 0 = 25 µm HDPE element 1 = 5 µm HDPE element Condensate drains (see Accessories section at back of catalog)
0	Design Type / Drains Type 0 = self-relieving, Manual/Semi-Automatic 1 = non-relieving, Manual/Semi-Automatic 4 = depressurization, self-relieving - "spitter type" (Sz bowl 2 ONLY) 5 = depressurization, protected with relieving, "spitter-type w/ filter" (Sz 2 bowl ONLY) 8 = port 1/8 female thread, self-relieving
TF	Port TF = NPTF Blank = BSPP thread ports

(Click Image to Enlarge)

Technical Specifications

Construction	HDPE filtering element
Materials	Nickel-Plated brass, body, Buna-N seals, Nylon - Grilamid bowl, internals in brass, filter element in HDPE
Threaded ports	1/8", 1/4" NPTF
Weight	0.370 Kg = 0.8 lbs
Max. condensate capacity	28 cm³ = 1 oz (size 2 bowl); or 11 cm³ = 0.4 oz (size 1 )
Pressure gauge port	1/8" NPTF
Type of mounting	Vertical, in-line
Operating temperature	-5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Porosity of filtering element	25 µm; 5 µm, available options
Draining of condensate	Standard semiautomatic, manual - see Code Key for optional drain styles

Pneumatic Data

Inlet pressure	0 - 16 bar (0 - 232 psi)
Outlet pressure	0.5 - 10 bar (7.25 - 145 psi), optional pressure outlet ranges available
Nominal flow	See graph
Secondary pressure relieving	Standard relieving and non-relieving available
