Camozzi Index|FRL Units|Series M & N


camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Non-Modular FRL Series M & N

Download & Save as PDF File PDF Download

Lubricator Series N

Ports 1/8", 1/4" NPTF, (Nylon - Grilamid)
with threaded transparent bowl, Nipple type
The Series "N" lubricator is available with 1/4" and 1/8" NPTF ports.
The special type of design caters for a vast range of applications in relation to the amount of oil atomized and the air consumed. The body of the lubricator is made of Nickel-Plated brass, while the bowl is transparent, (Nylon - Grilamid).

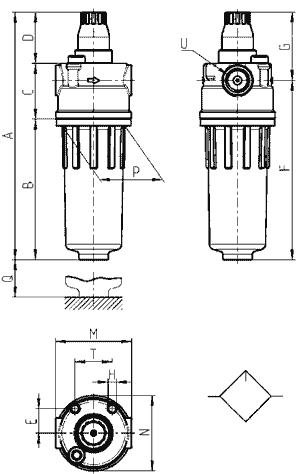

Lubricator Series N Technical Drawing
Part Number A B C D E F G H M N O P Q T U (NPTF)
N108-L00TF 4.82 2.32 1.29 1.20 .57 2.97 1.57 M5 1.77 1.77 1.75 1.49 1.83 .86 1/8"
N104-L00TF 4.82 2.32 1.29 1.20 .57 2.97 1.57 M5 1.77 1.77 1.75 1.49 1.83 .86 1/4"
N208-L00TF 5.76 3.26 1.29 1.20 .57 4.17 1.57 M5 1.77 1.77 1.75 1.49 1.83 .86 1/8"
N204-L00TF 5.76 3.26 1.29 1.20 .57 4.17 1.57 M5 1.77 1.77 1.75 1.49 1.83 .86 1/4"

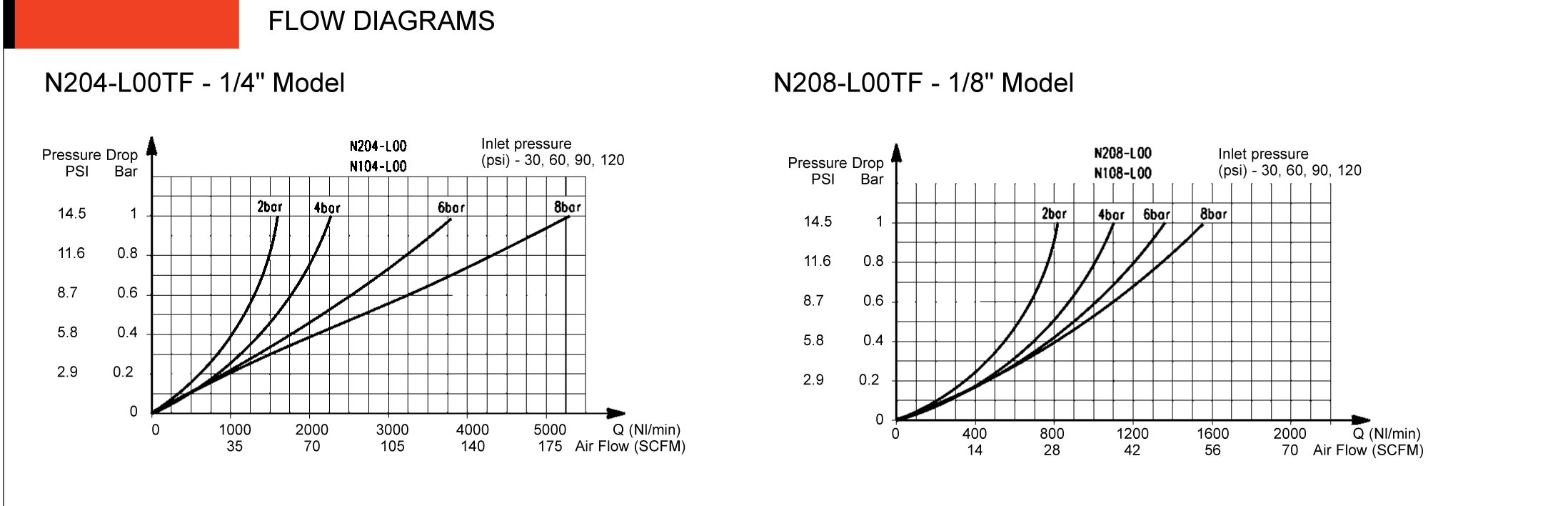

Coding Example & Flow Diagrams

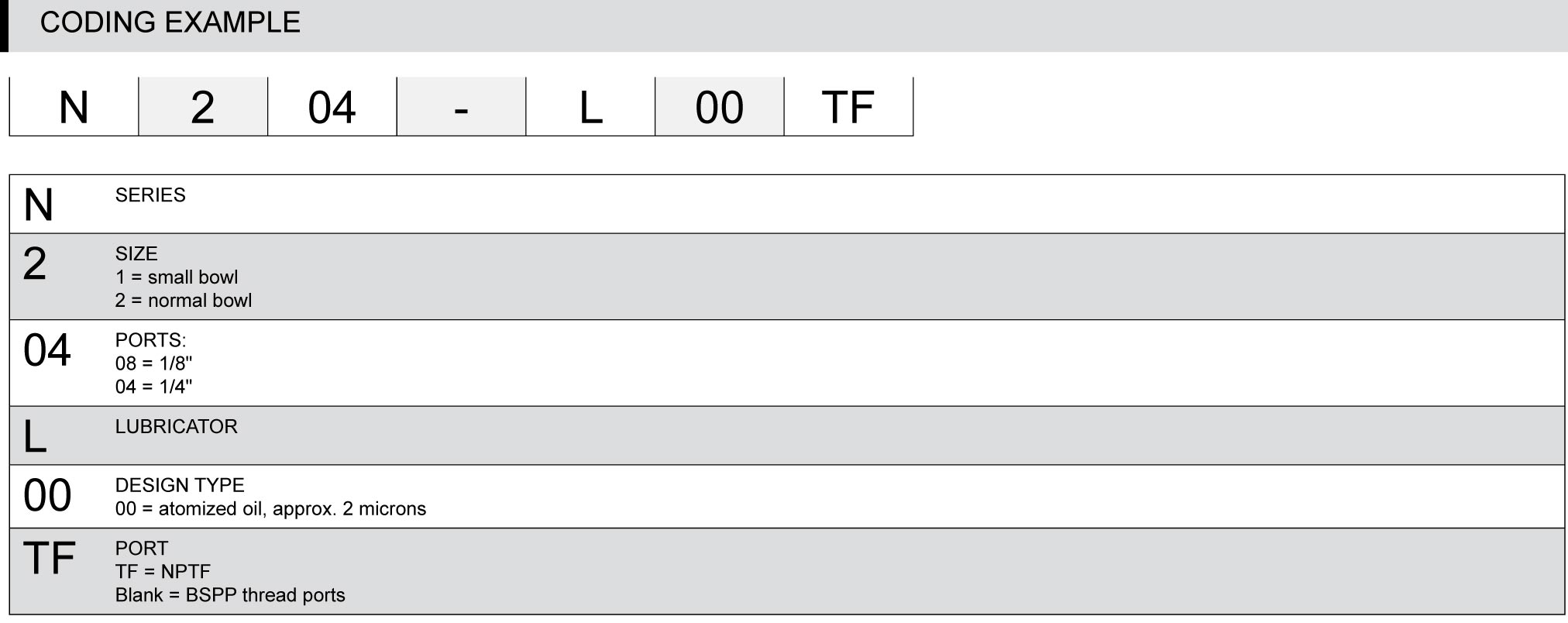

Coding Example
(Click Image to Enlarge)
Coding Example
(Click Image to Enlarge)
Technical Specifications
Construction Venturi Design
Materials Nickel-Plated brass, body Buna-N seals, Nylon - Grilamid bowl, internals in brass
Threaded ports 1/8", 1/4" NPTF
Weight Kg 0.288 = 0.63 lbs
Oil capacity cm³ 26 cm³ = size 1 (.9 oz) 37 cm³ = size 2 (1.28 oz)
Type of mounting Vertical, in-line
Operating temperature -5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Oil refilling Without pressure required, can be filled via bowl or cap screw in head
Oil for lubrication from 3° - 10° E (ask our engineers for types) (approx. 32 centistrokes)
Oil consumption recommendation 1 - 5 drops every 1000 Nl of air consumed (35 SCFM) (10 drops = 1cm³)
Droplet size approx. 2µm
Pneumatic Data
Operating pressure 0 - 16 bar (0 - 232 psi)

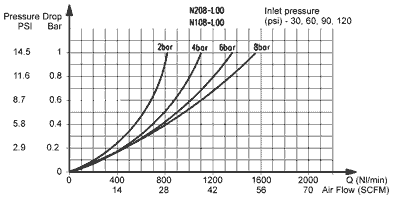

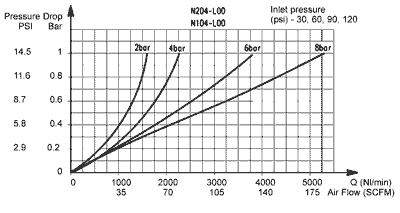

Nominal flow See graph
Minimum air consumption for lubrication At 1 bar = 7.5 NI/min (14.5 psi = .26 SCFM) At 6 bar = 11 NI/min (87 psi = .38 SCFM)
