European BIOFLEX-500-JZ Cable Bio-Fuel Resistant

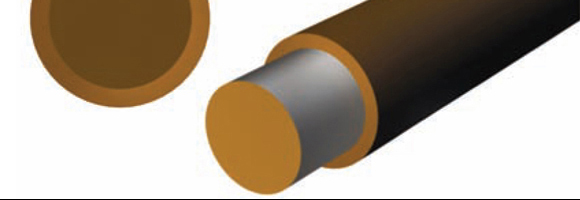

Single Insulated DuPont ETFE .002"

Part No:	AWG	Conductor		Normal O.D		Weight Lb / KFT
Part No:	AWG	Inches	mm	Inches	mm	Weight Lb / KFT
S18A01TX-2	18	0.0403	1.024	0.0443	1.125	5.12
S19A01TX-2	19	0.0359	0.912	0.0399	1.013	4.08
S20A01TX-2	20	0.0320	0.813	0.0360	0.914	3.25
S21A01TX-2	21	0.0285	0.724	0.0325	0.826	2.60
S22A01TX-2	22	0.0253	0.643	0.0293	0.744	2.07
S23A01TX-2	23	0.0226	0.574	0.0266	0.676	1.66
S24A01TX-2	24	0.0201	0.511	0.0241	0.612	1.32
S25A01TX-2	25	0.0179	0.455	0.0219	0.556	1.06
S26A01TX-2	26	0.0159	0.404	0.0199	0.505	0.85
S27A01TX-2	27	0.0142	0.361	0.0182	0.462	0.69
S28A01TX-2	28	0.0126	0.320	0.0166	0.422	0.55
S29A01TX-2	29	0.0113	0.287	0.0153	0.389	0.45
S30A01TX-2	30	0.0100	0.254	0.0140	0.356	0.36
S31A01TX-2	31	0.0089	0.226	0.0129	0.328	0.29
S32A01TX-2	32	0.0080	0.203	0.0120	0.305	0.24
S33A01TX-2	33	0.0071	0.180	0.0111	0.282	0.20
S34A01TX-2	34	0.0063	0.160	0.0103	0.262	0.16
S35A01TX-2	35	0.0056	0.142	0.0096	0.244	0.13
S36A01TX-2	36	0.0050	0.127	0.0090	0.229	0.11
S37A01TX-2	37	0.0045	0.114	0.0085	0.216	0.09
S38A01TX-2	38	0.0040	0.102	0.0080	0.203	0.08
S39A01TX-2	39	0.0035	0.089	0.0075	0.191	0.06
S40A01TX-2	40	0.0031	0.079	0.0071	0.180	0.05

Technical Data

Applications:Telecom/Electronic
Basic isolation applications
Compliances:
UL OBJT2 File No. E206198
UL 60950-1 (ed. 2), Annex U.
RoHS Compliant
EIS approval in process
Tensile Strength: 6500 psi
Breakdown: Approx. 3000 V

Approvals

Conductor:

Tin plated copper
Solid or stranded (ASTM B-33/ASTM B-286)
Bare copper and other conductors available.

Single Insulated DuPont ETFE .002"
